Wall-mounted slewing jib crane
Type UW
Product highlights
- Aluminium profile jib
- Ergonomic handling
- Easy slewing
- Smooth running trolley
- Overbraced design, low dead weight of aluminium profile jib arm
- Trailing cable system travelling inside the aluminium profile
- Jib arm length can be adjusted to conditions on the spot
- Broad range of fastenings options provides for easy installation
The easy-running one
The wall-mounted jib arm crane UW is a smooth-running crane with aluminium jib arm.
You can use it for easy, quick, and safe handling of small loads up to 500 kg; e.g. in logistics or automotive industry. Its overbraced design and lightweight aluminium jib arm enable especially easy slewing of the crane. Thanks to the good running qualities of the internal push trolley, the chain hoist moves quite easily. The handling crane UW perfectly meets your requirements since the column height can be adjusted individually.
Regarding fastening options, you can make your individual choice from fastening on steel pillar, reinforced concrete pillar, reinforced concrete wall, and steel structure.
Moreover, we offer ELECTROLIFT® chain hoists, slewing limit stops, and locking devices.
This type of slewing jib crane is also available as column-mounted slewing jib crane.
Technical data
| Capacity: | 80 - 500 kg |
| Outreach: | 1900 - 5900 mm |
| Total height: | 940 mm |
| Slewing range: | 180° (nominal) |
| EN 13001 Hoisting class: | HC2 |
| EN 13001 Stability class: | S2 |
| Jib design: | Overbraced |
| Slewing: | By hand |
| Hoist: | Electric chain hoist / Pulley block |
| Trolley drive: | By hand |
| Installation location: | Indoor |

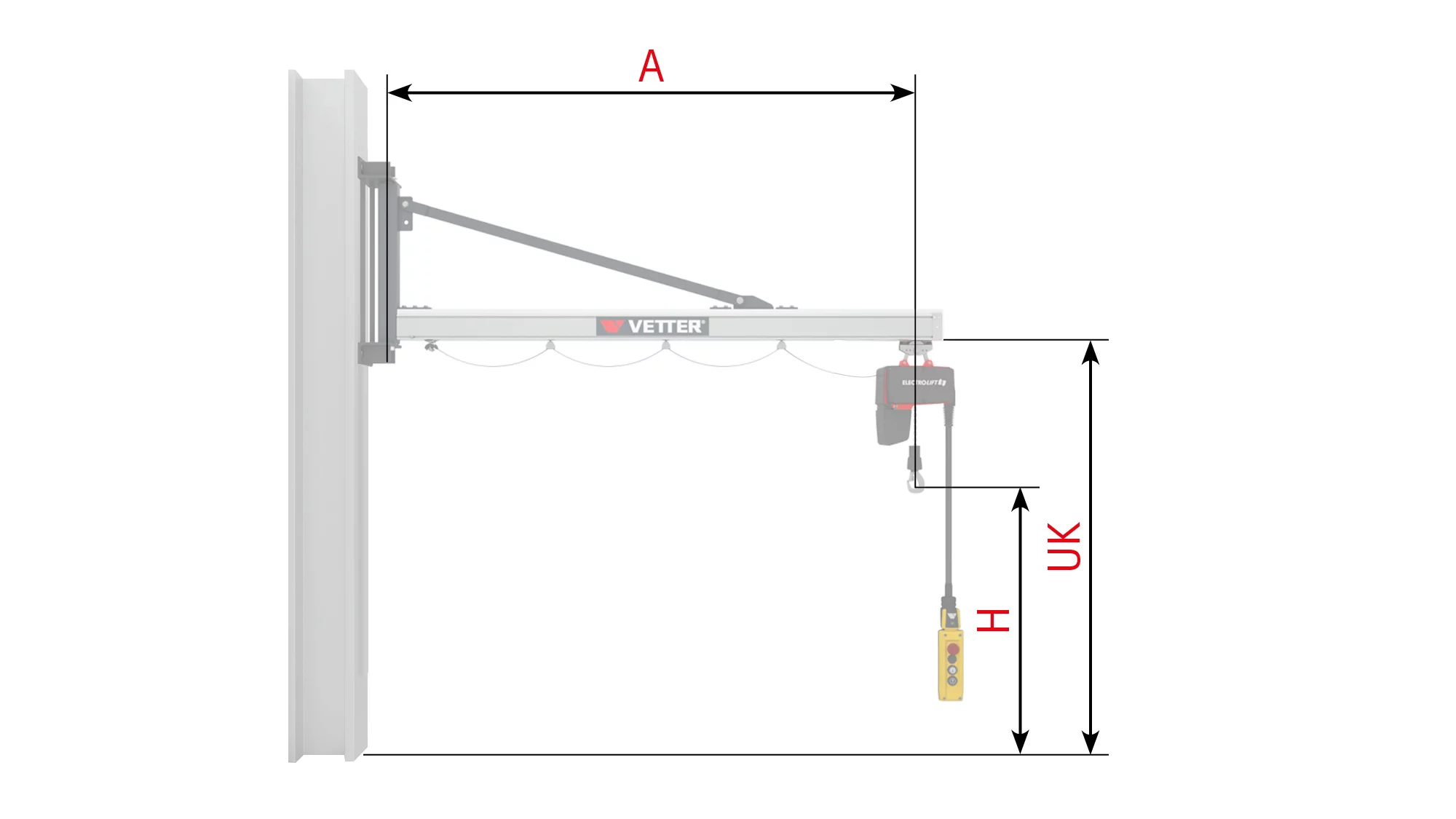

Outreach [m]
Capacity [kg]
| 1.9 | 2.4 | 2.9 | 3.4 | 3.9 | 4.4 | 4.9 | 5.4 | 5.9 | |
|---|---|---|---|---|---|---|---|---|---|
| 80 | |||||||||
| 125 | |||||||||
| 250 | |||||||||
| 320 | |||||||||
| 500 |

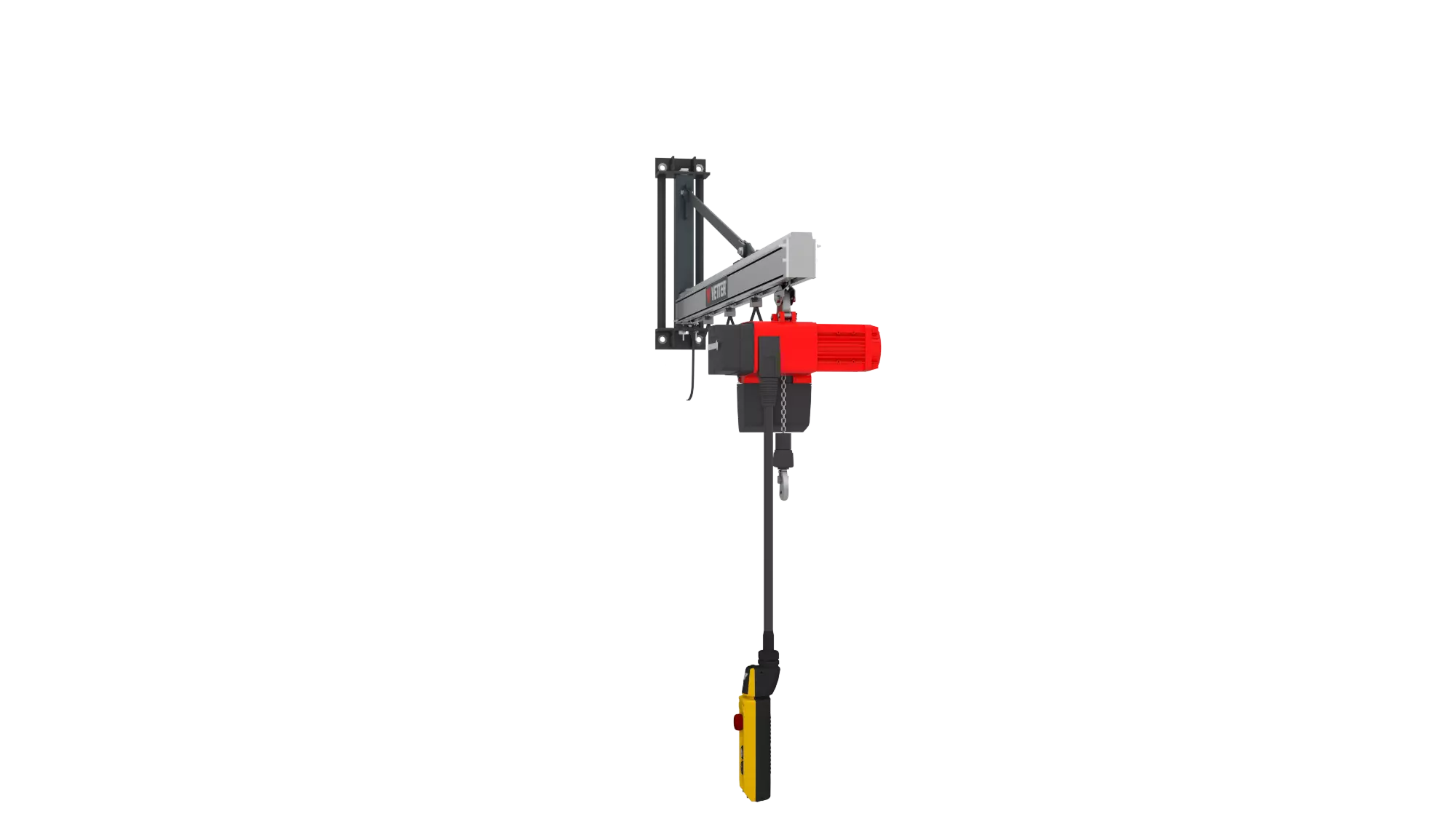

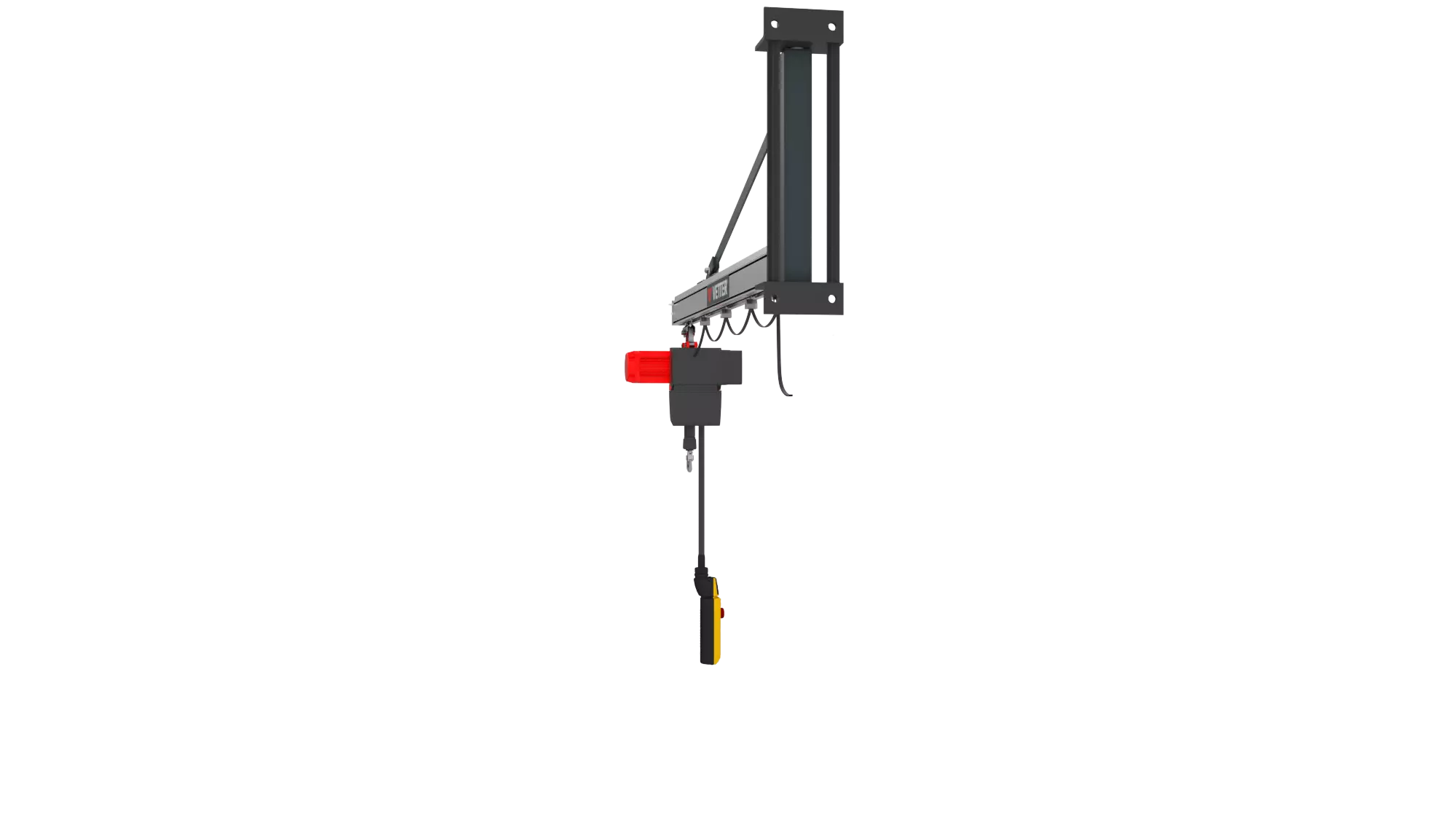

3D-Ansicht
Accessories
Fastening

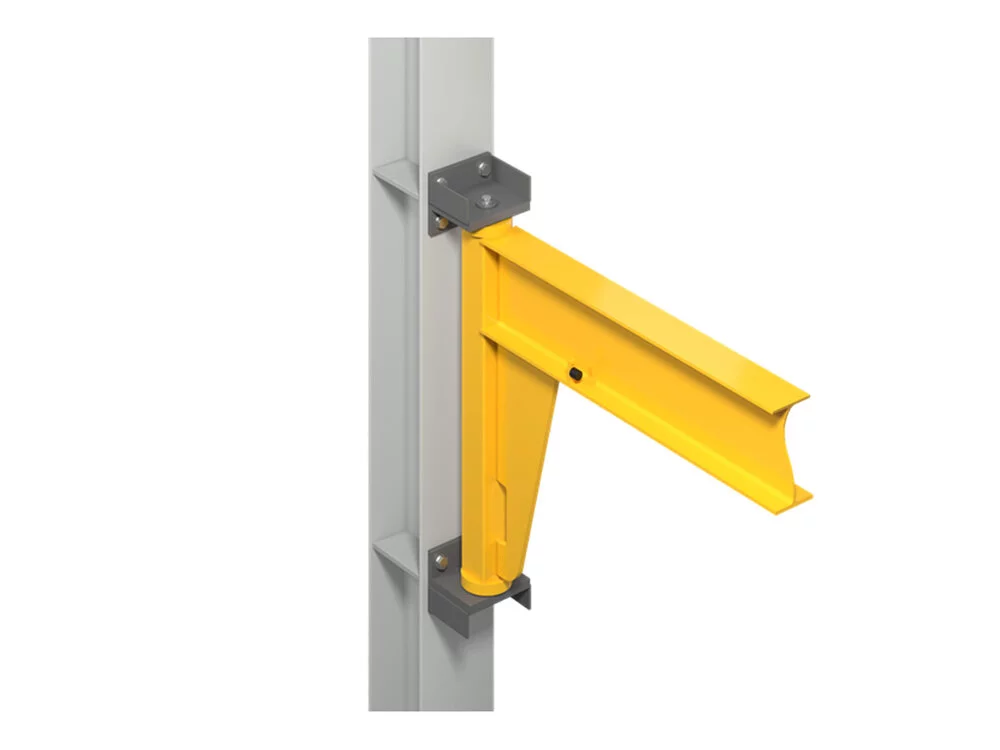

Fixing on steel pillars
Bearing bracket
The screwable bearing bracket is used to attach jib cranes directly to steel pillars. This fastening is standard delivery scope.

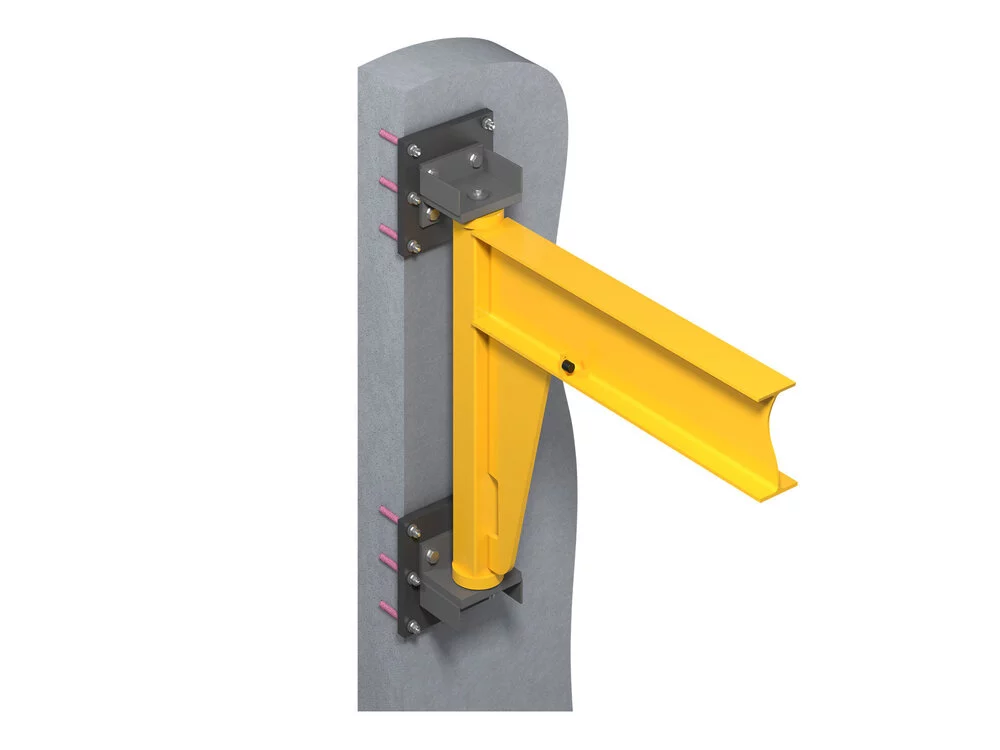

Fixing on concrete walls
Wall bracket
For fastening jib cranes on concrete walls. The bracket plate is mounted on the wall by the included threaded rods, nuts an washers.

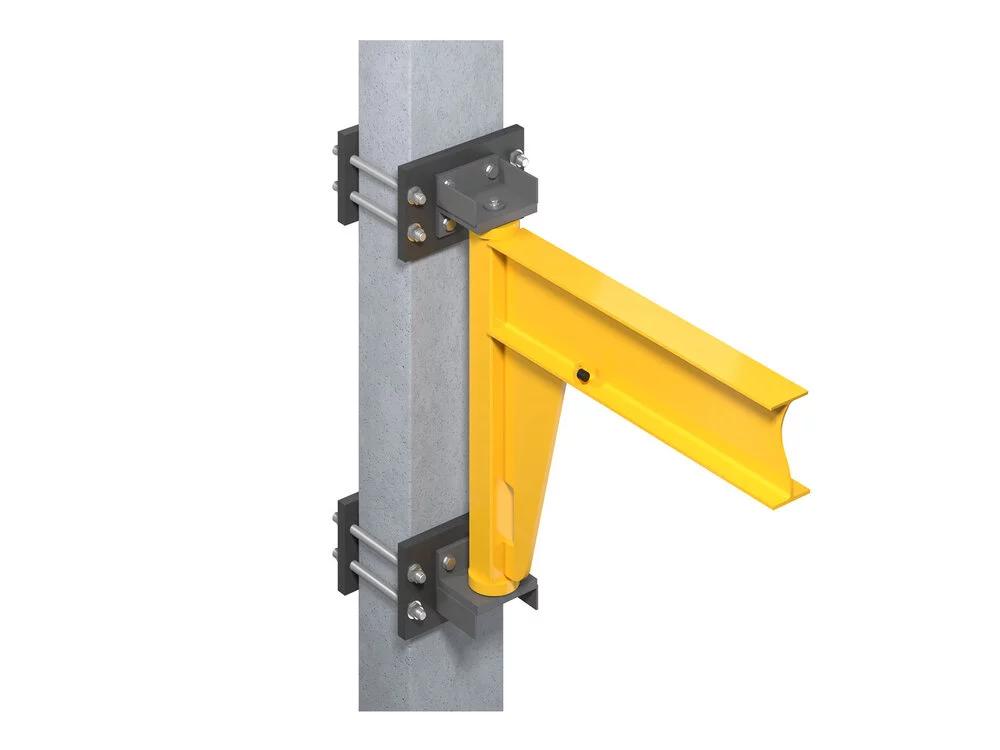

Fixing on reinforced concrete pillars
Support embarcing bracket
For fastening jib cranes on reinforced concrete pillars. The front bracket plate is clamped to the pillar by the included threaded rods, nuts and counterplate.

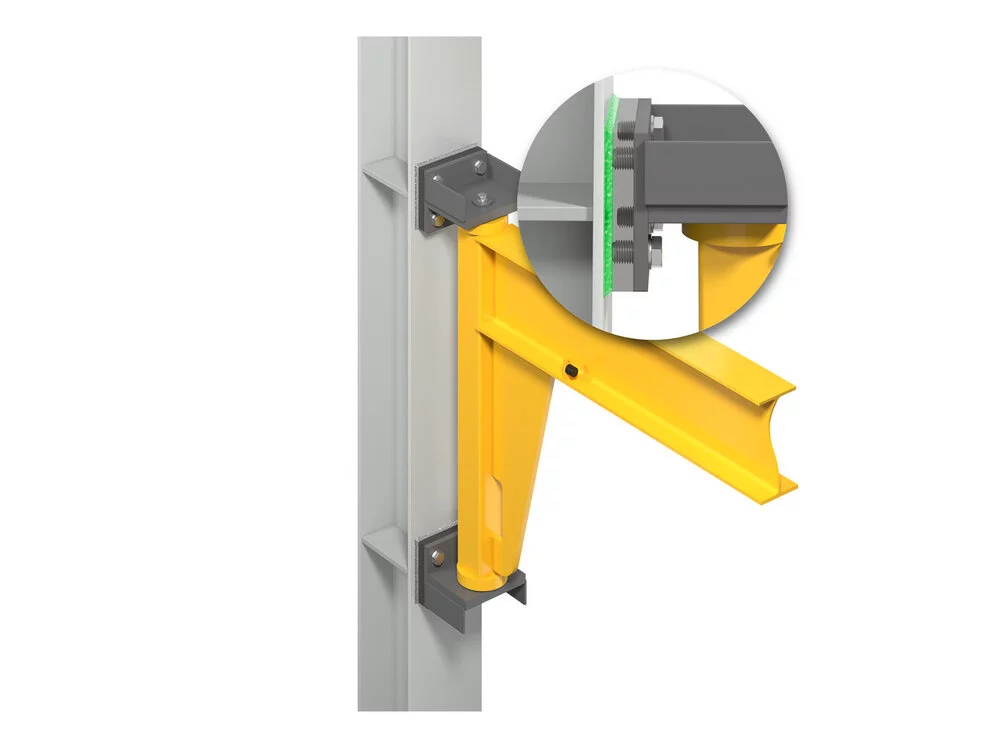

Fastening to steel structure
Weld-on bracket
Designed to attach the wall-mounted slewing jib crane to a steel structure which is suitable regarding static strength. The bracket is welded directly onto the steel structure. This fastening option is perfectly suited if is not possible or allowed to drill holes into the existing steel structure.
Other
Slewing limitation
Mechanical slewing limitation, can be installed and adjusted easily and continuously.
Locking device
For locking the jib arm in several positions. Applied by lever arm / traction rope (depending on crane
type) with control lever. Also to be used as immobilizer system up to wind force 7 Beaufort (only when crane is switched off and hoist is in idle position).
Surface finish
Paint system for indoor use US/UW
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 7016) with a nominal layer thickness of 80 µm. The jib is finished in Aluminium anadised as standard.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
