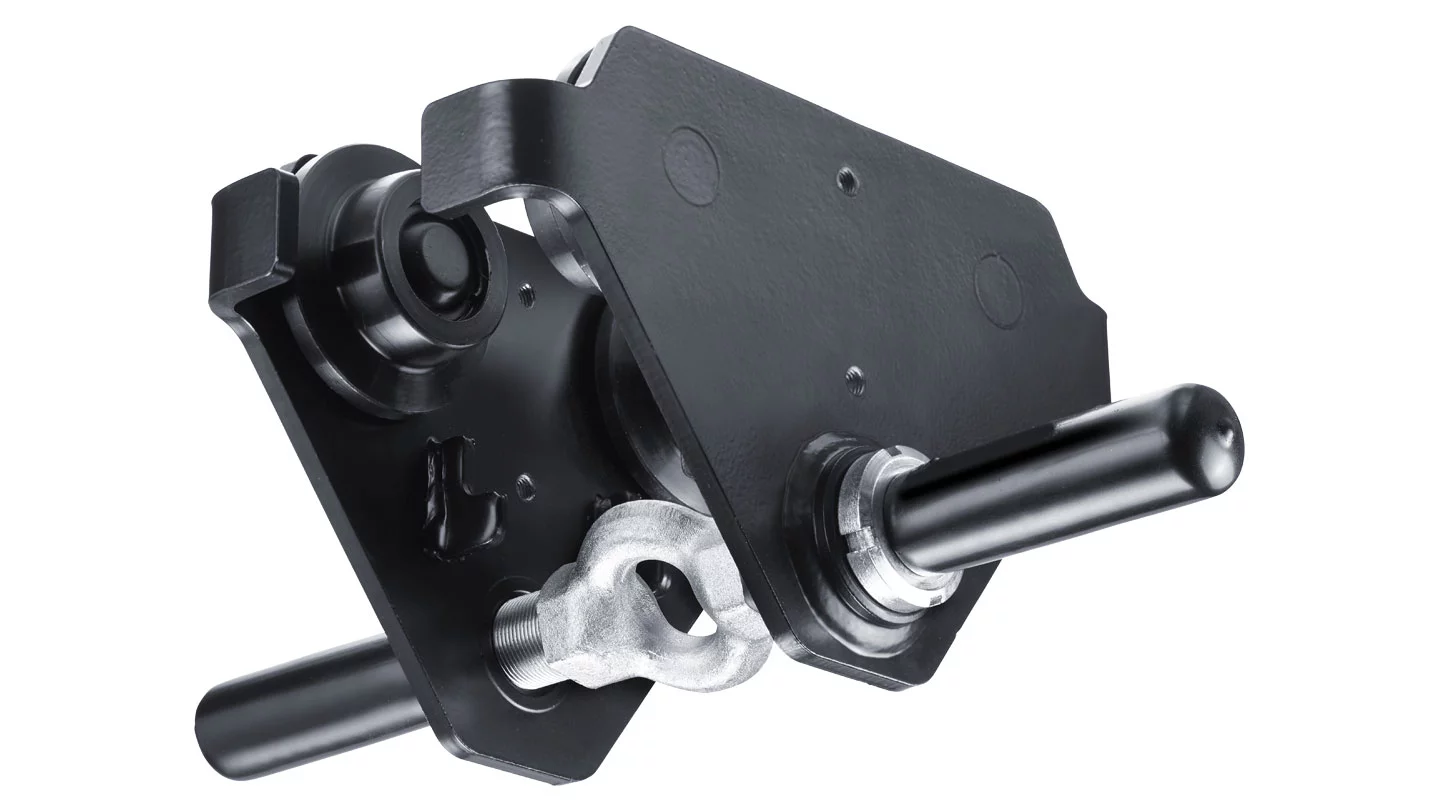

Push trolleys
Type SiC0

Product highlights

  • Designed for suspension of hoist with suspension hook
  • Continuous adjustment to any beam flange width
  • For parallel-flanged beams from 50 to 305 mm with a maximum flange taper of 14 %
  • Side guards protecting against climbing and falling
  • Rollers are turned, running in ball bearings, encapsulated, and lifetime-lubricated
  • Easy installation

For hinging a hoist with suspension hook

Our trolleys can be used with any hoist featuring a suspension hook with safety catch or a similar suspension option. Thanks to simple and almost continuous adjustment to different beam flange widths, you can benefit from the outstanding flexibility of our proven VETTER push trolleys. Our specially designed side guards provide for utmost safety. They prevent the trolley from climbing or even falling. Moreover, you are able to install our push trolleys easily and quickly. The perfectly manufactured rollers provide for smooth operation. Easy-running operation requiring rare lubrication: Our rollers are turned, running in ball bearings, encapsulated, and lifetime-lubricated – ready for use.

The push trolleys are available for parallel-flanged beams as well as beams with a maximum flange taper of 14 %.

Technical Data

Capacity 500 kg

Capacity: 500 kg
Flange width: 50 to 220 mm
Hoist weight: Max. 70 kg
Part No.: SiC0-HF500A

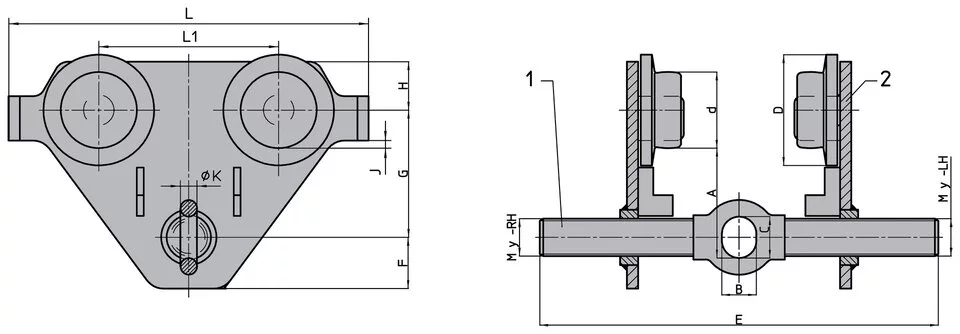

A [mm] B [mm] C [mm] d [mm] D [mm] E [mm] F [mm] G [mm] H [mm] J [mm] M y L [mm] L1 [mm] K [mm] Gewicht ca. [kg]
79,5 25 30 55 80 288 37 92 35 5,5 M27x1,5 260 130 17 7

Capacity: 1000 kg

Type A: Flange width 58 - 220 mm

Capacity: 1,000 kg
Flange width: 58 to 220 mm
Hoist weight: Max. 110 kg
Part No.: SiC0-HF1000A

Type B: Flange width 165 to 305 mm

Capacity: 1,000 kg
Flange width: 165 to 305 mm
Hoist weight: Max. 110 kg
Part No.: SiC0-HF1000B

Type A [mm] B [mm] C [mm] d [mm] D [mm] E [mm] F [mm] G [mm] H [mm] J [mm] M y L [mm] L1 [mm] K [mm] Gewicht ca. [kg]
A 79 30 35 68 95 302 37 95,5 35 7 M30x1,5 260 130 17 11
B 79 30 35 68 95 382 37 95,5 35 7 M30x1,5 260 130 17 12

Capacity 2,000 kg

Type A: Flange width 66 to 220 mm

Capacity: 2,000 kg
Flange width: 66 to 220 mm
Hoist weight: Max. 150 kg
Part No.: SiC0-HF2000A

Type B: Flange width 165 to 305 mm

Capacity: 2.000 kg
Flange width: 165 to 305 mm
Hoist weight: Max. 150 kg
Part No.: SiC0-HF2000B

Type A [mm] B [mm] C [mm] d [mm] D [mm] E [mm] F [mm] G [mm] H [mm] J [mm] M y L [mm] L1 [mm] K [mm] Gewicht ca. [kg]
A 98,5 40 45 80 108 310 55 115 35 7 M38x1,5 310 150 22 17
B 98,5 40 45 80 108 390 55 115 35 7 M38x1,5 310 150 22 18

Scope of supply

  • 2 side guards (coated signal black RAL 9004) with flanged rollers running on ball bearings and threaded holes for the beam
  • A galvanised beam connecting the side guards with suspension eyelet, continuous adjustment to different beam flange widths with left-hand / right-hand thread without tool
  • 2 plastic sleeves protecting the protruding ends of the beam
