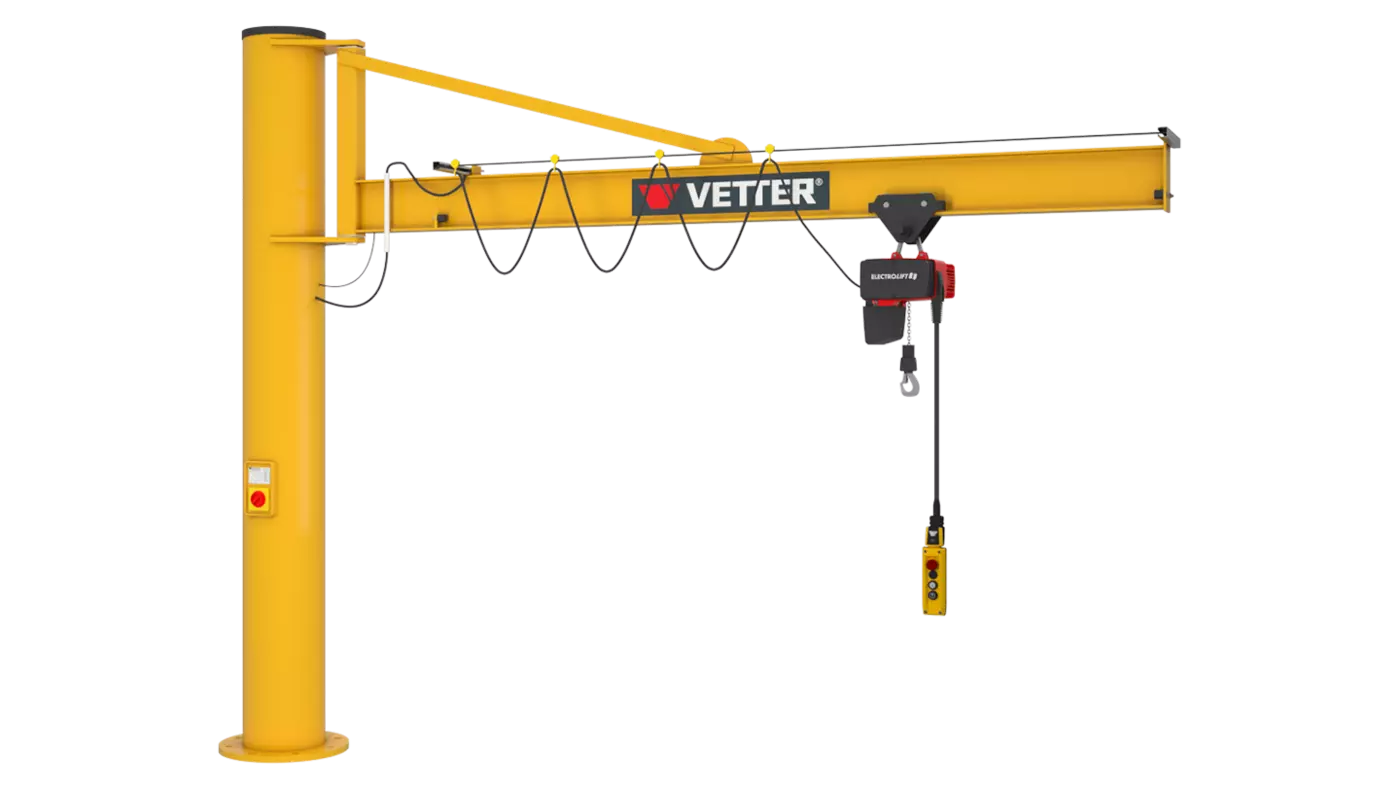

Column-mounted slewing jib crane
Type PS
Tip The DowelPlate system VAS2 can be used to fasten the crane.
Product highlights
- Cost-effective crane
- Easy slewing
- Overbraced design, low dead weight of jib arm
- Outdoor use possible
- Column height and jib arm length can be adjusted to conditions on the spot
- Easy to install thanks to dowelling on concrete floor (optional)
The simple one
The slewing jib crane PS is our cost-effective basic crane!
You can use it for simple operational tasks requiring a capacity of up to 2,000 kg. Its overbraced design and lightweight jib arm enable especially easy slewing of the crane. The column-mounted crane PS perfectly meets your requirements for indoor and outdoor use since column height and jib arm length can be adjusted individually.
Regarding fastening options, you can make your individual choice from comfortable dowelling on concrete floor using the patented VETTER DowelPlate system VAS2, fastening on foundation using anchors, TopAnchor, or CompactAnchor, and base flange for fastening on a steel structure.
Moreover, we offer a suitable power supply, electric chain hoists ELECTROLIFT® with electric trolley as well as various other accessories.
This type of slewing crane is also available as wall-mounted slewing jib crane.

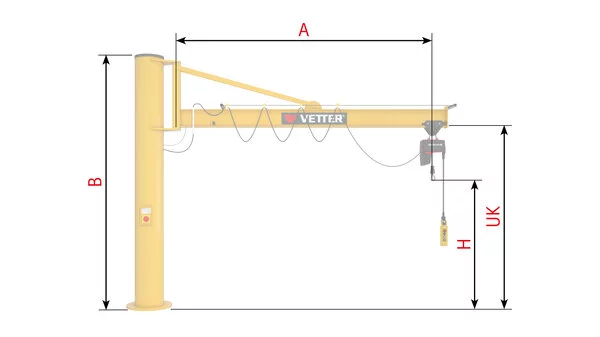

Technical data
| Capacity: | 80 - 2000 kg |
| Outreach: | 2000 - 6000 mm |
| Jib clearance: | 1450 - 9200 mm |
| Total height: | 2250 - 10 000 mm |
| Slewing range: | 270° |
| EN 13001 Hoisting class: | HC2 |
| EN 13001 Stability class: | S2 |
| Jib design: | Overbraced |
| Slewing: | By hand |
| Hoist: | Chain hoist |
| Trolley drive: | By hand / Electrical |
| Installation location: | Indoor / Outdoor |
Outreach [m]
Capacity [kg]
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
|---|---|---|---|---|---|---|---|---|---|
| 80 | |||||||||
| 125 | |||||||||
| 250 | |||||||||
| 500 | |||||||||
| 800 | |||||||||
| 1000 | |||||||||
| 1600 | |||||||||
| 2000 |
3D-Ansicht
Accessories
Fastening
Dowels on existing concrete floor
DowelPlate system VAS2
The round solution for doweling the slewing crane on existing concrete floor. No complicated foundation work is necessary.
Anchorage with anchors
AnchorFix
The classical anchorage with anchors, temolate and a set of nuts and washers. Delivery also comprises a detailed foundation plan with information about foundation size and required reinforcement.
Anchorage without screws jutting out
TopAnchor
The alternative anchorage without screws jutting out (no trip hazards). The foundation area is kept free and accessible until the final intallation of the crane. The crane can be put into operation immediately, because no grouting is needed.
Anchorage with optimum ease of installation
CompactAnchor
This anchorage offers th advantages of TopAnchor an is furthermore very easy to install. There is no need to mount separete parts on site. Positioning in the foundation pit is easy done by set screws.
Fastening to steel structure or machine
Base flange, flush
Base flange, flush or plane machined surface, designed to attach the crane to a steel structure or machine. Fastening screws to be provided by the customer.
Power lead
Round cable
Power lead by cable loop, consisting of round cable and cable supporting tube to be mounted on the jib arm. Pendant control fixed to the hoist. Suitable for an outreach up to 3-5m (Depends on the jib clearance of the jib arm).
Round cable trailing system
Favourable power supply, consisting of round cable, cable trolleys, tensioning rope and suspension arms to fix the supply to the jib arm. Pendant control fixed to the hoist. Recommended for outreachs from 3-10 m (Depends on the jib clearance of the jib arm).
Other
Slewing limitation
Mechanical slewing limitation, can be installed and adjusted easily and continuously.
Locking device
For locking the jib arm in several positions. Applied by lever arm / traction rope (depending on crane
type) with control lever. Also to be used as immobilizer system up to wind force 7 Beaufort (only when crane is switched off and hoist is in idle position).
Outdoor use
Weatherproof design for temperatures ranging from -20° C to +40° C, wind force up to 4 Bft (moderate breeze), protection class IP55, and insulation class F.
Outdoor design includes sealed bearings, neoprene cables, weather protection roofs for hoist and slewing gear as well as a high-quality outdoor varnish on the basis of corrosion category C3. A hot-dip galvanised steel structure is recommended for outdoor use.
Surface finish
Paint system for indoor use
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 80 µm.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
Paint system for outdoor use or production halls with high humidity
Cranes intended to be used outside require a special outdoor paint. For this purpose, the crane structure is steel grit blasted and provided with a high-quality outdoor coating on the basis of corrosion category C3. It is suitable for medium atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 120 µm.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
