Column-mounted slewing jib crane
Type US
Tip The DowelPlate system VAS2 can be used to fasten the crane.
Product highlights
- Aluminium profile jib
- Ergonomic handling
- Easy slewing
- Smooth-running trolley
- Overbraced design, low dead weight of aluminium profile jib arm

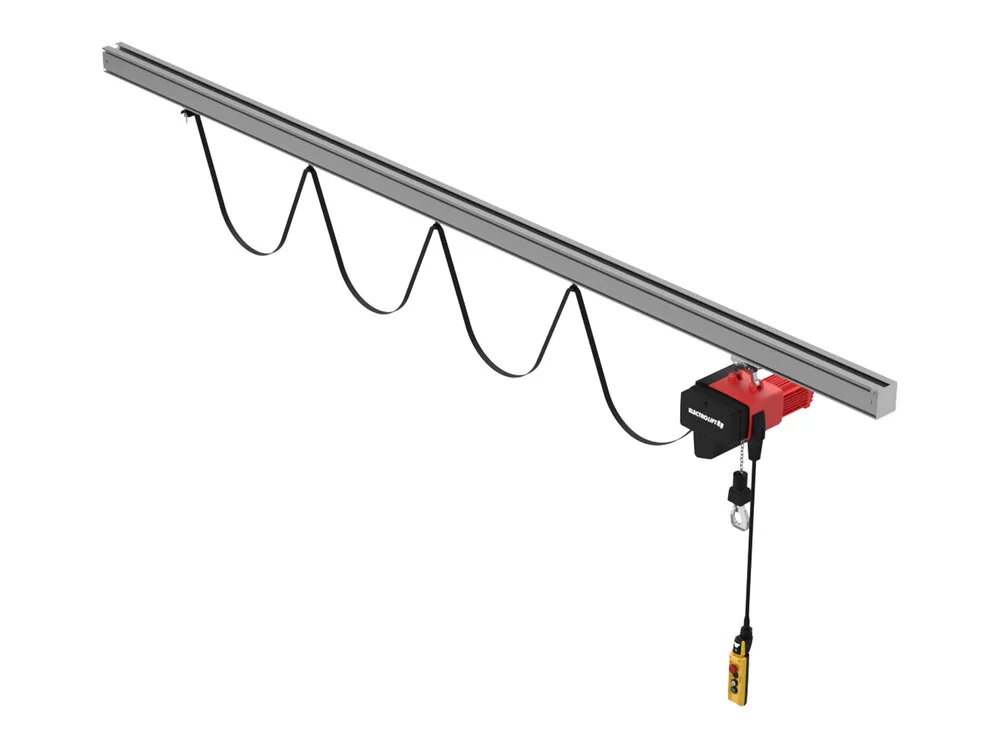

- Trailing cable system travelling inside the aluminium profil
- Column height and jib arm length can be adjusted to conditions on the spot
- Easy to install thanks to dowelling on concrete floor (optional)
The easy-running one
The column-mounted jib arm crane US is a smooth-running crane with aluminium jib arm.
You can use it for easy, quick, and safe handling of small loads up to 500 kg; e.g. in logistics or automotive industry. Its overbraced design and lightweight aluminium jib arm enable especially easy slewing of the crane. Thanks to the good running qualities of the internal push trolley, the chain hoist moves quite easily. The handling crane UNILIFT perfectly meets your requirements since the column height can be adjusted individually.
Regarding fastening options, you can make your individual choice from comfortable dowelling on concrete floor using the patented VETTER DowelPlate system VAS2, fastening on foundation using anchors, TopAnchor, or CompactAnchor, and base flange for fastening on a steel structure.
Moreover, we offer ELECTROLIFT® chain hoists, slewing limit stops, and locking devices.
This type of slewing jib crane is also available as wall-mounted slewing jib crane.
Technical data
| Capacity: | 80 - 500 kg |
| Outreach: | 1900 - 5900 mm |
| Jib clearance: | 1895 - 5895 mm |
| Total height: | 2600 - 5250 mm |
| Slewing range: | 270° |
| EN 13001 Hoisting class: | HC2 |
| EN 13001 Stability class: | S2 |
| Jib design: | Overbraced |
| Slewing: | By hand |
| Hoist: | Electric chain hoist / Pulley block |
| Trolley drive: | By hand |
| Installation location: | Indoor |
Outreach [m]
Capacity [kg]
| 1.9 | 2.4 | 2.9 | 3.4 | 3.9 | 4.4 | 4.9 | 5.4 | 5.9 | |
|---|---|---|---|---|---|---|---|---|---|
| 80 | |||||||||
| 125 | |||||||||
| 250 | |||||||||
| 320 | |||||||||
| 500 |

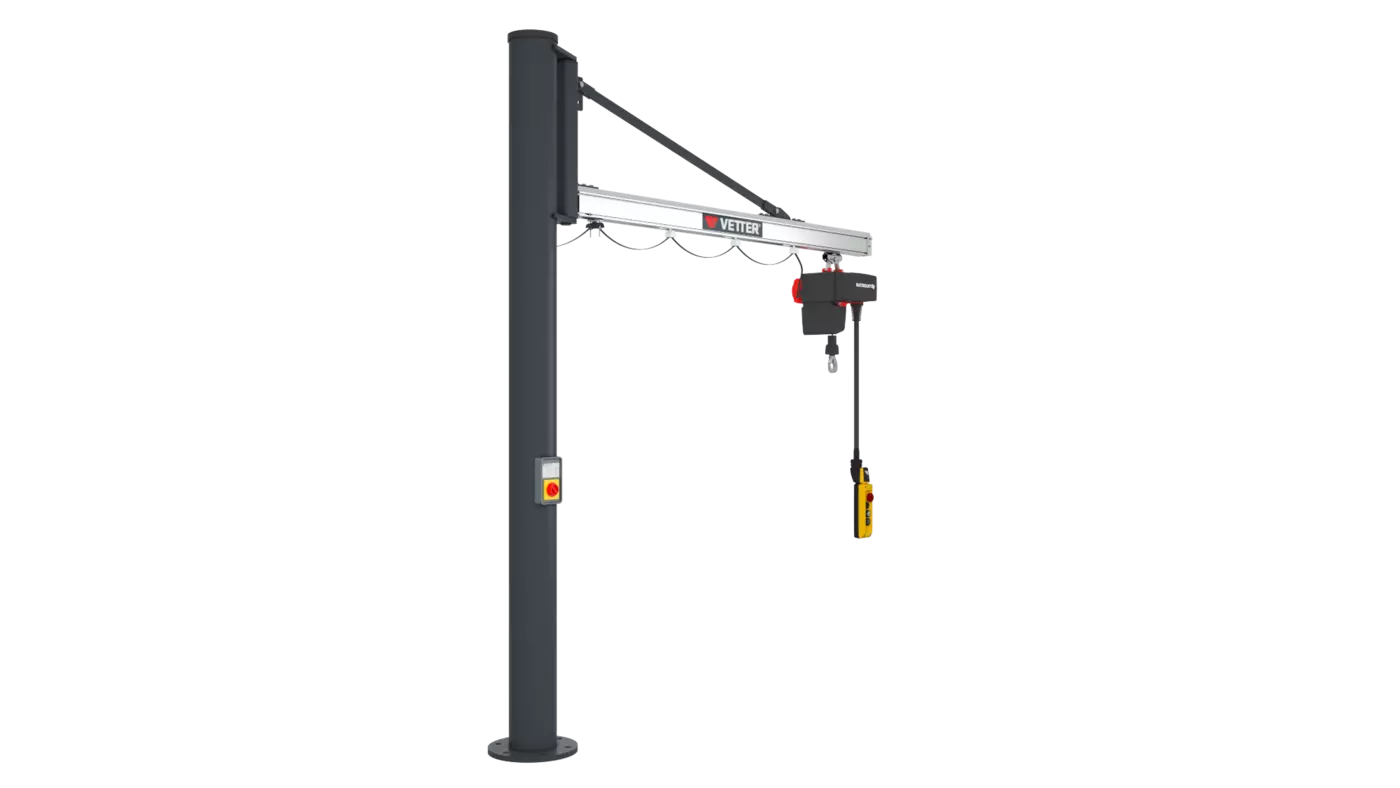

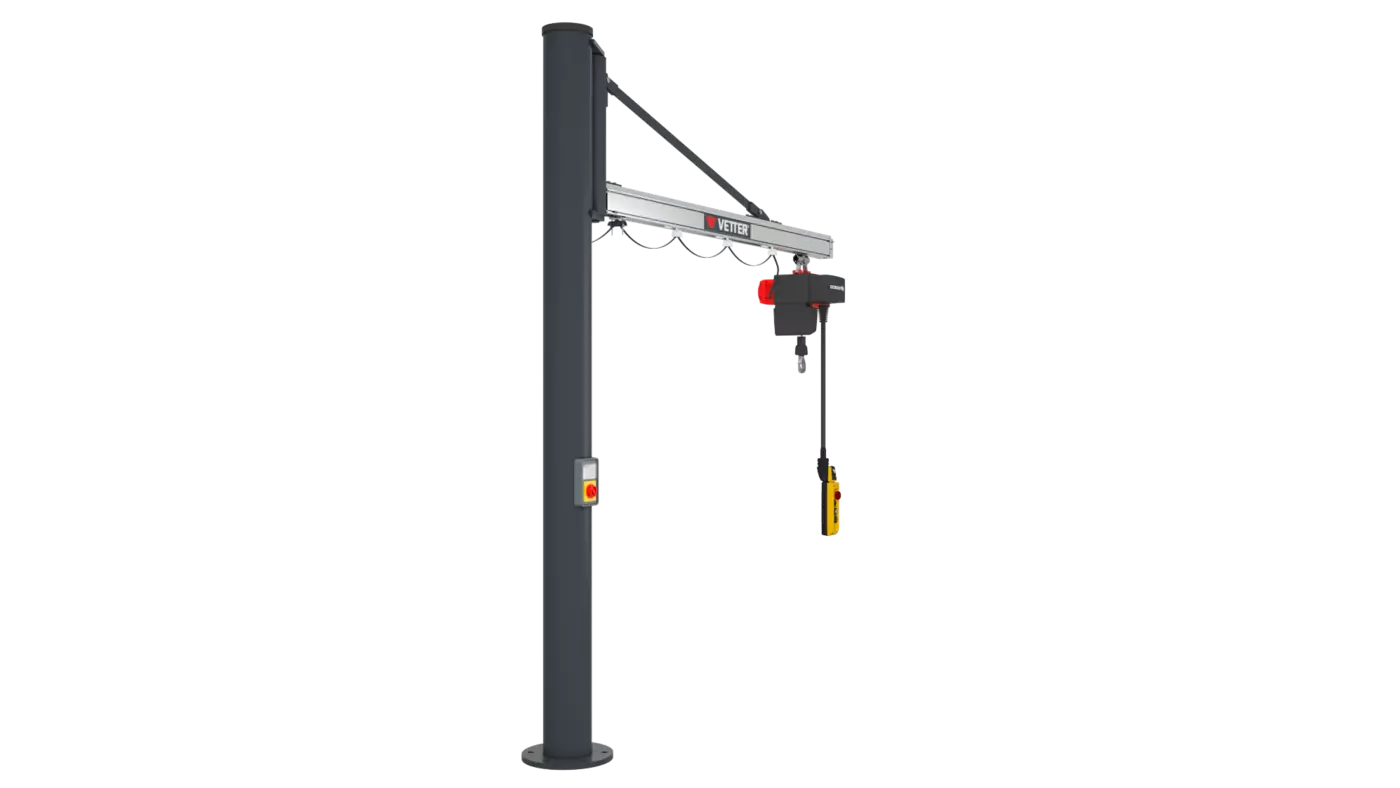

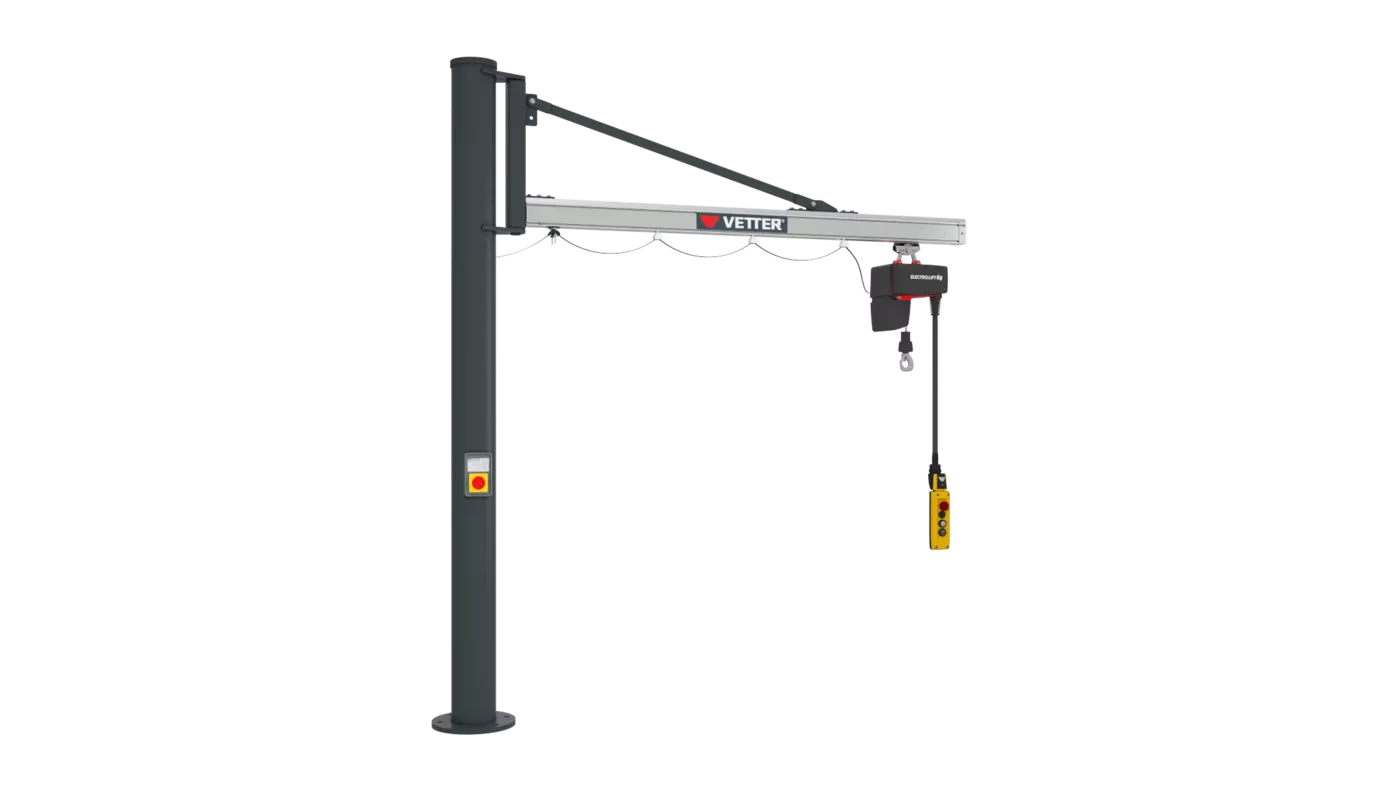

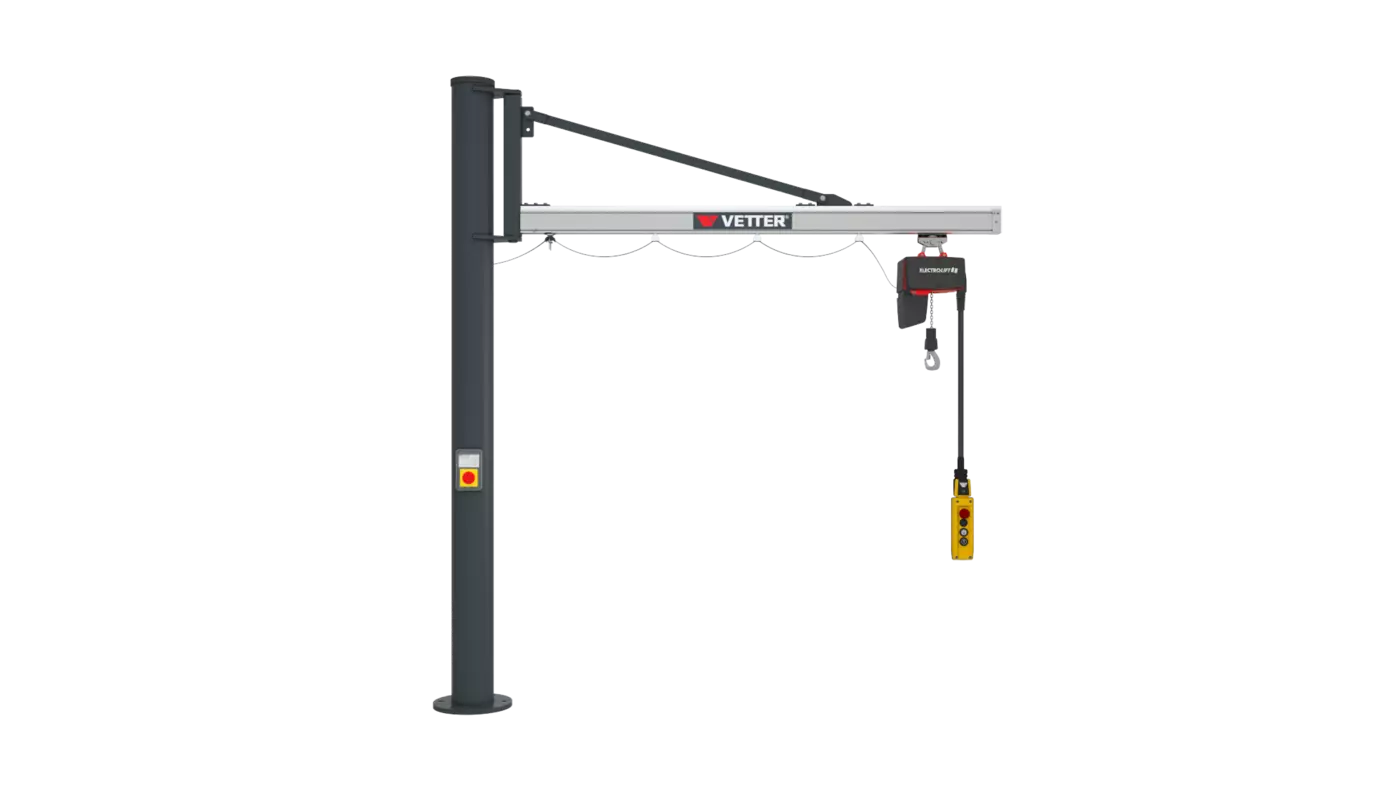

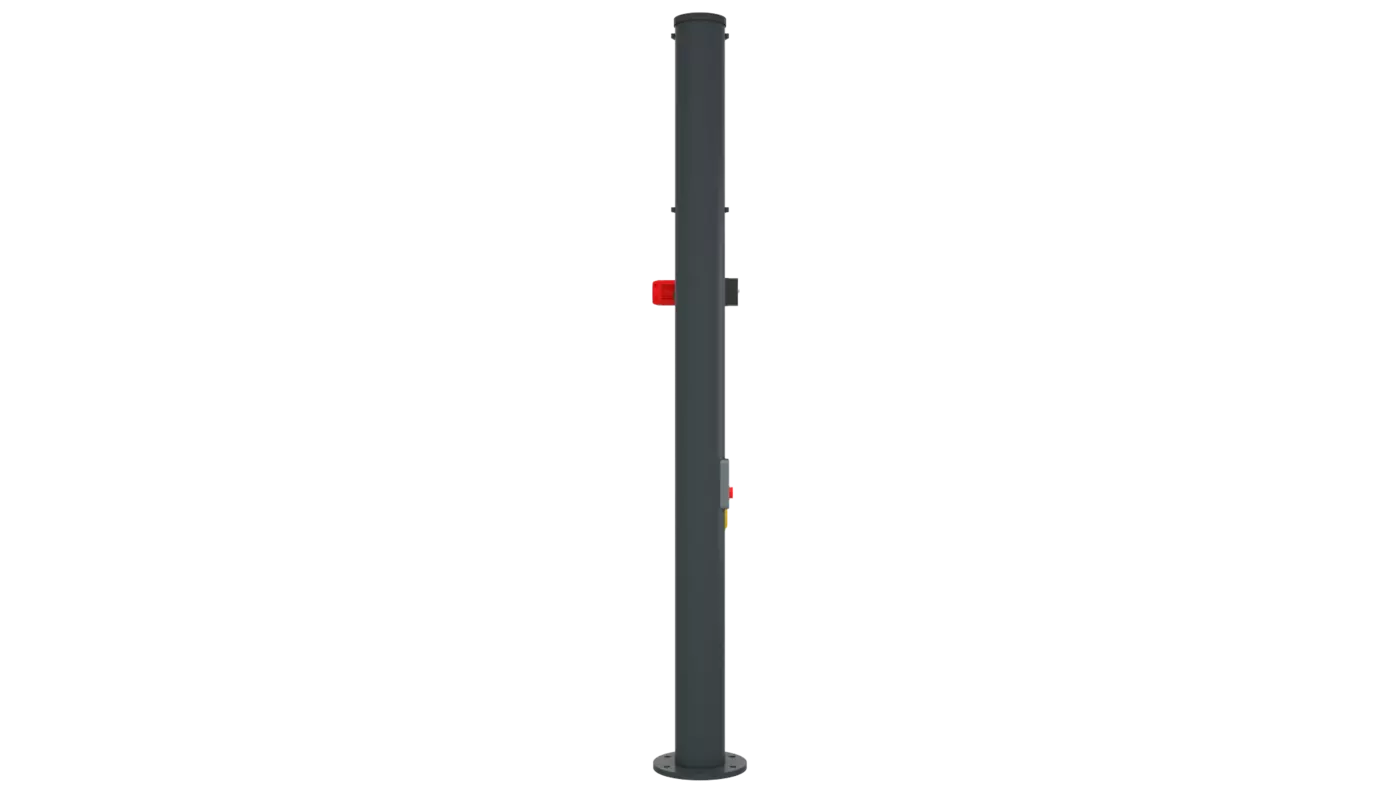

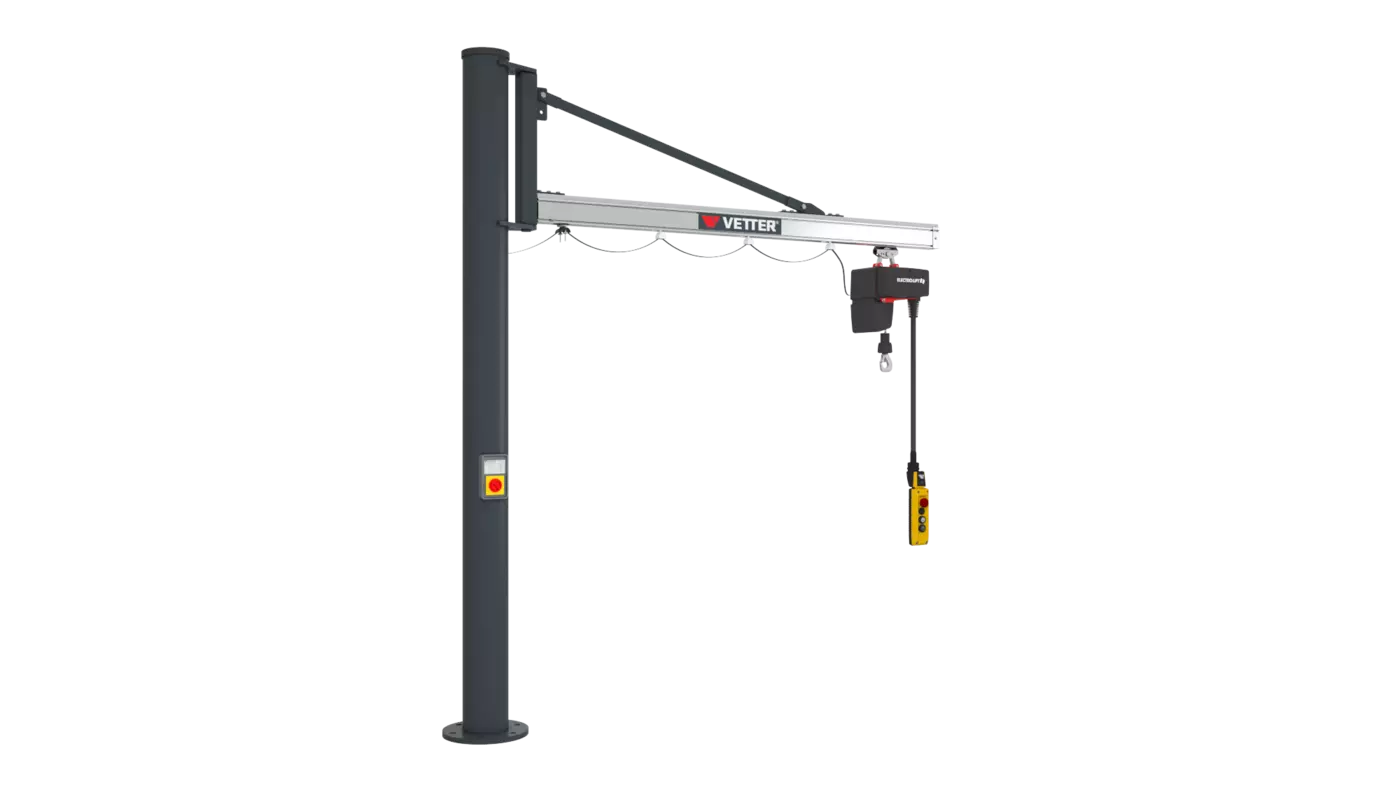

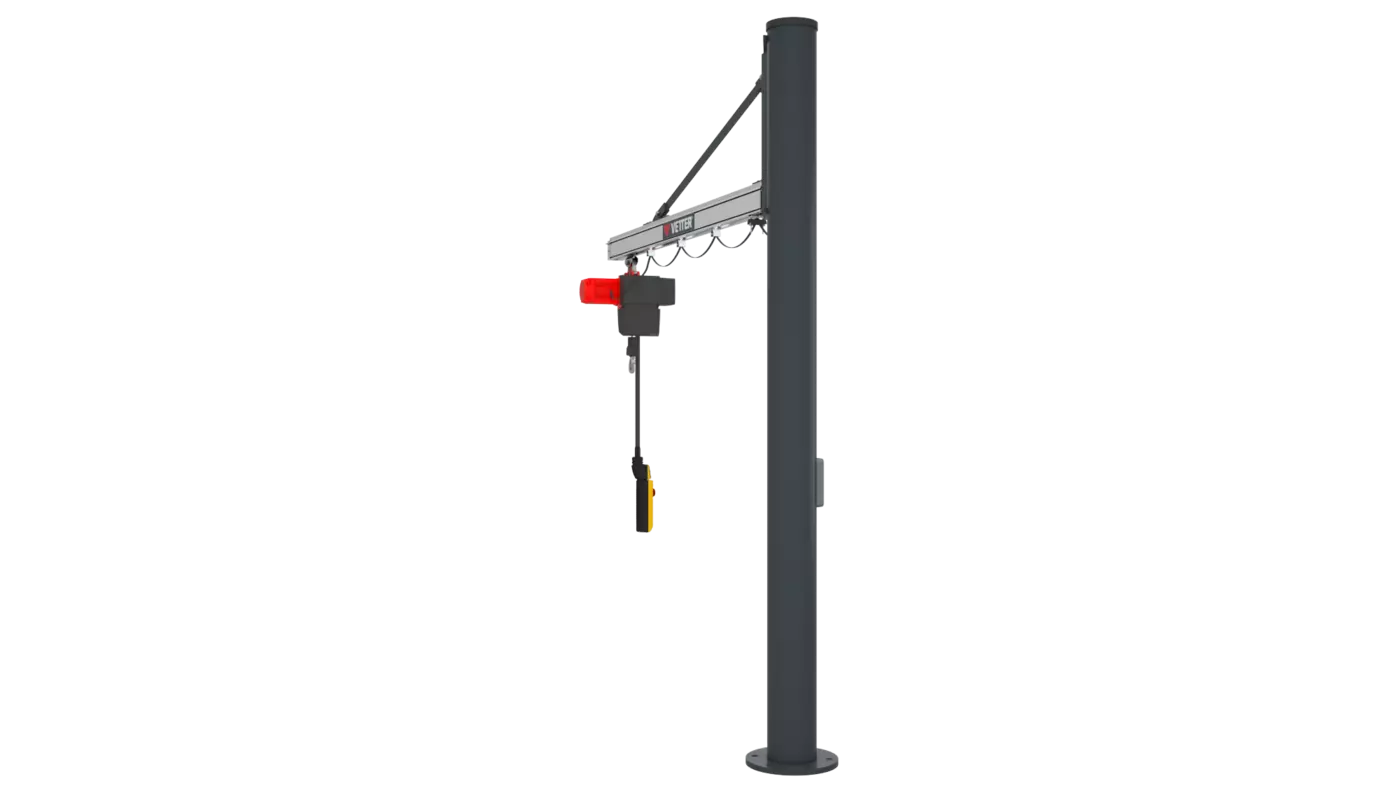

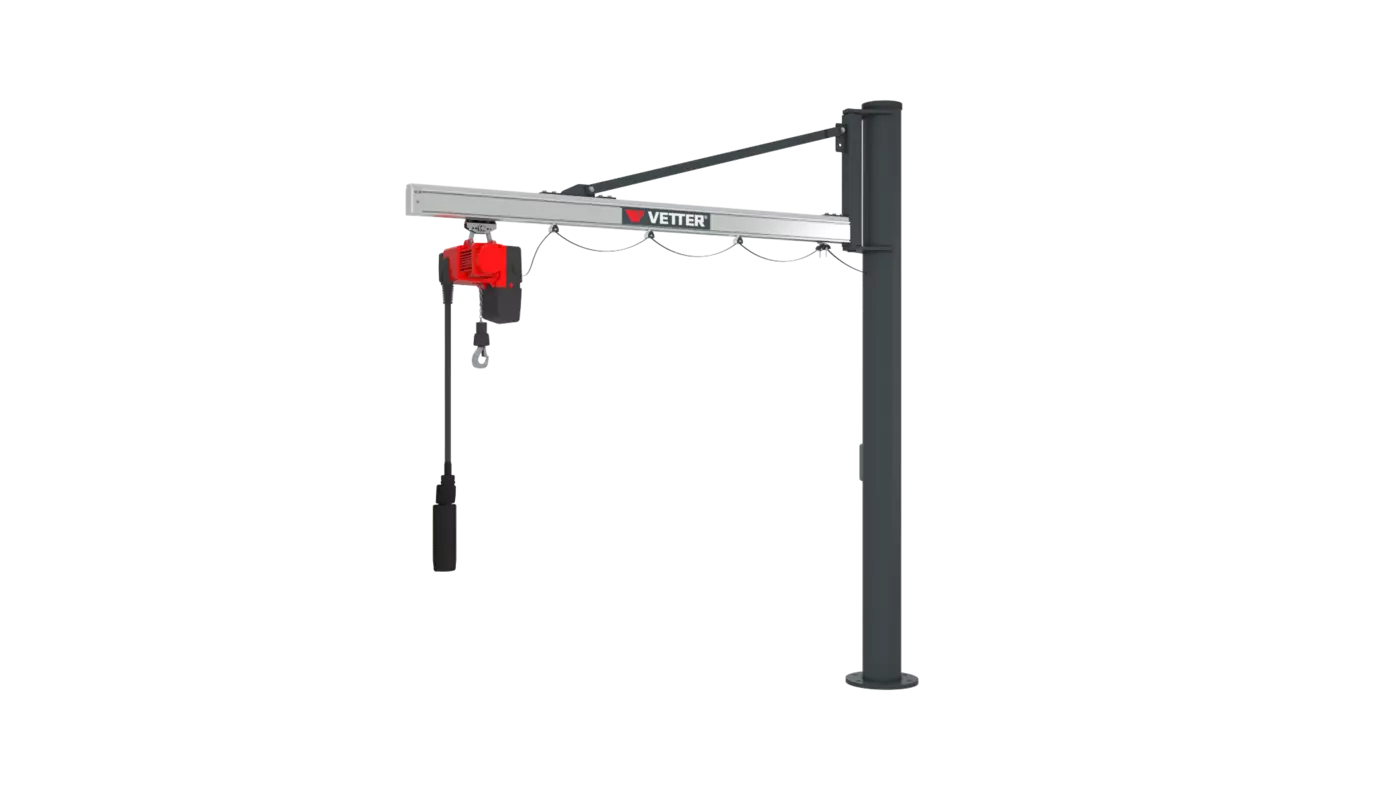

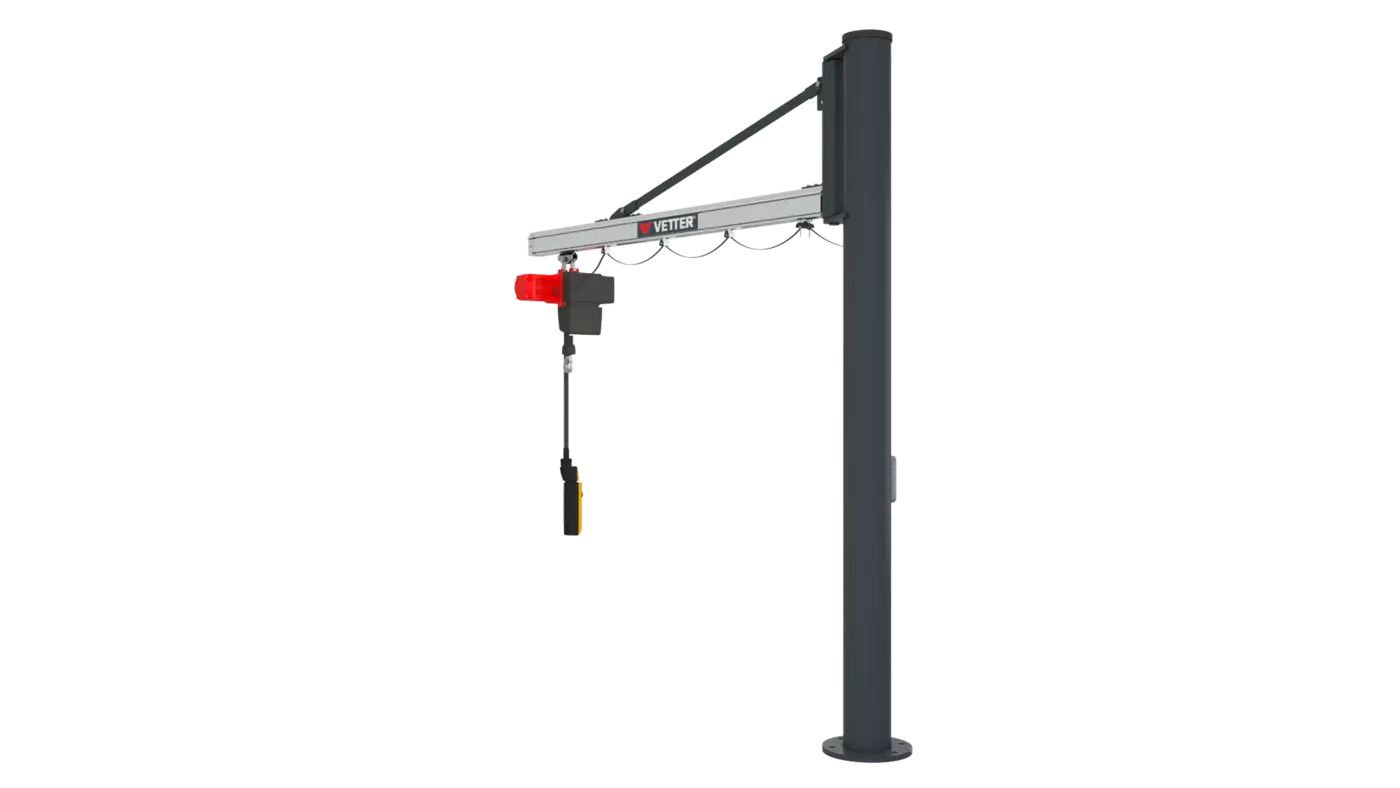

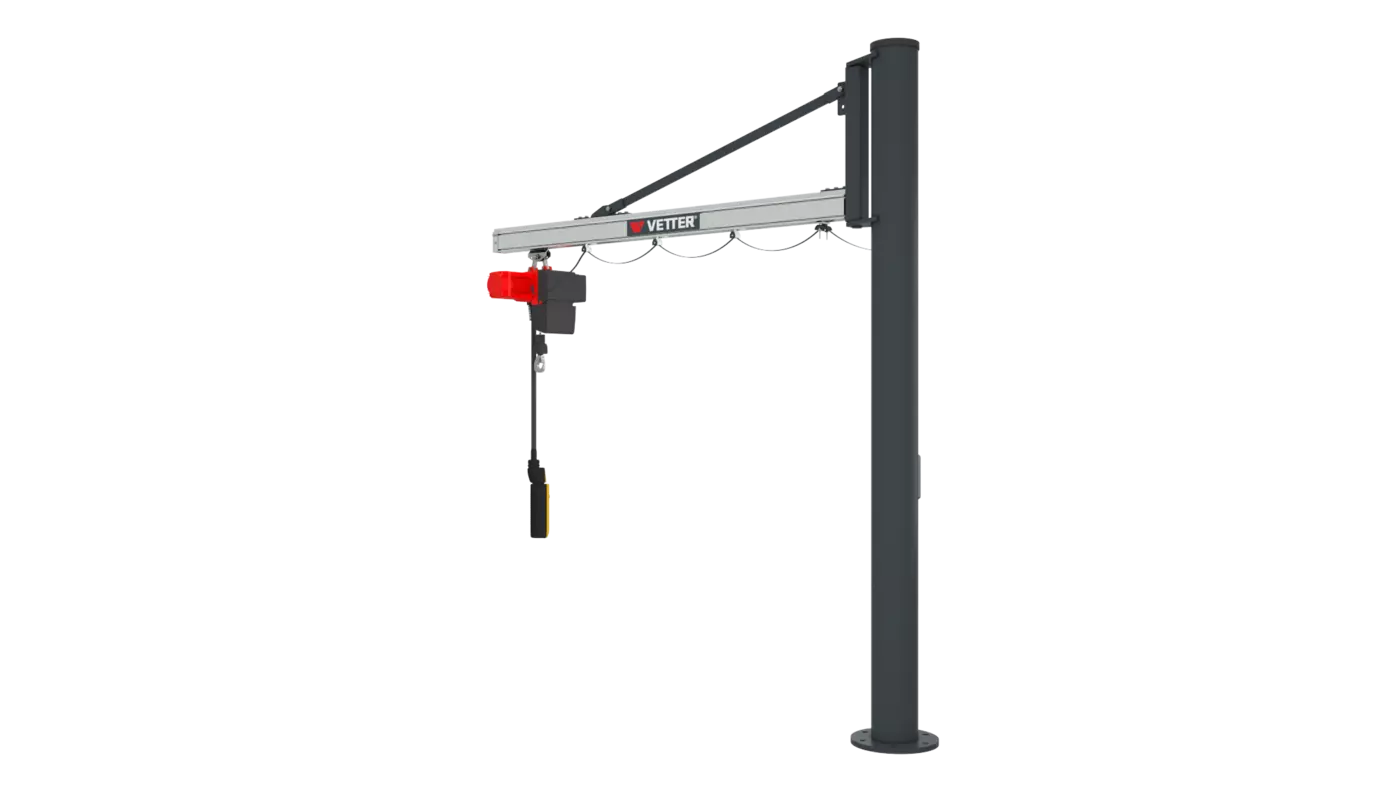

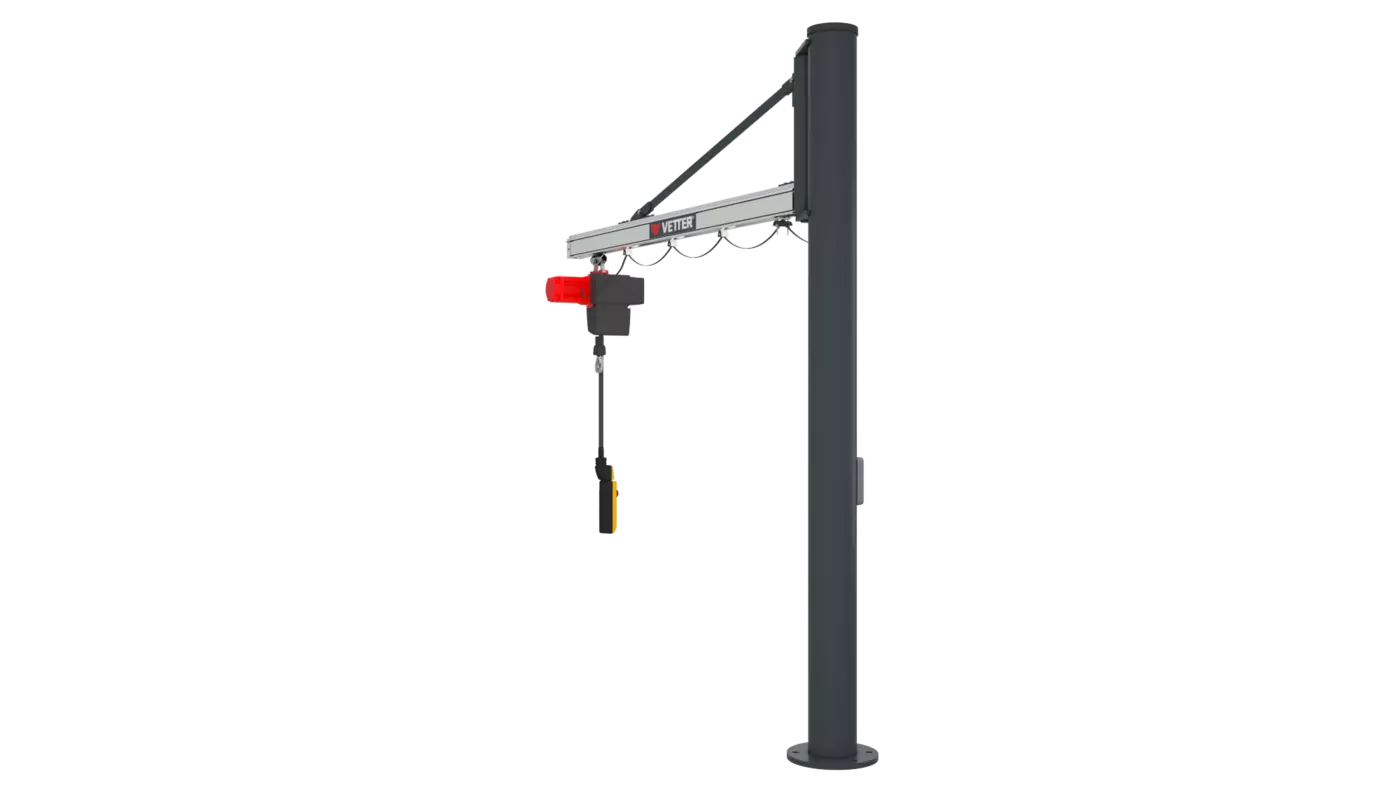

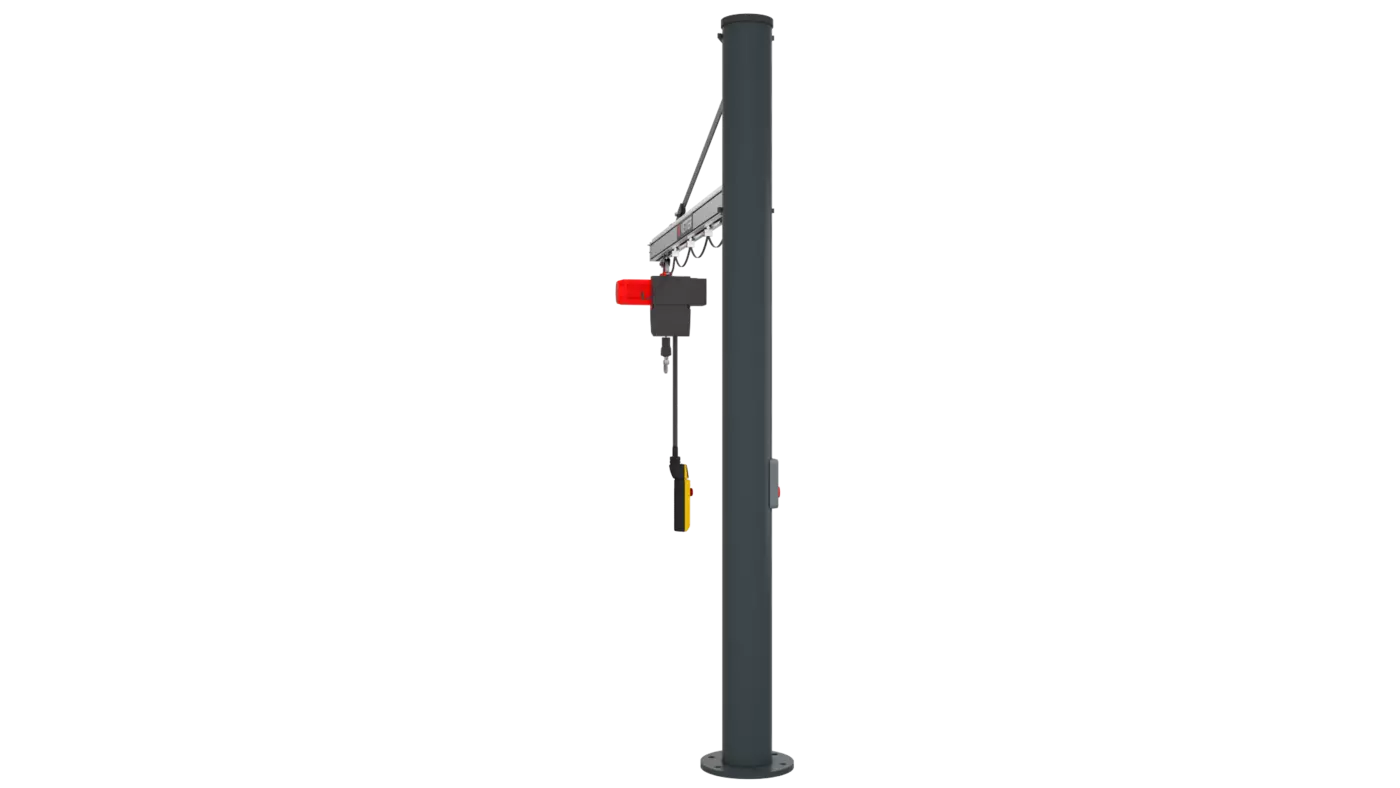

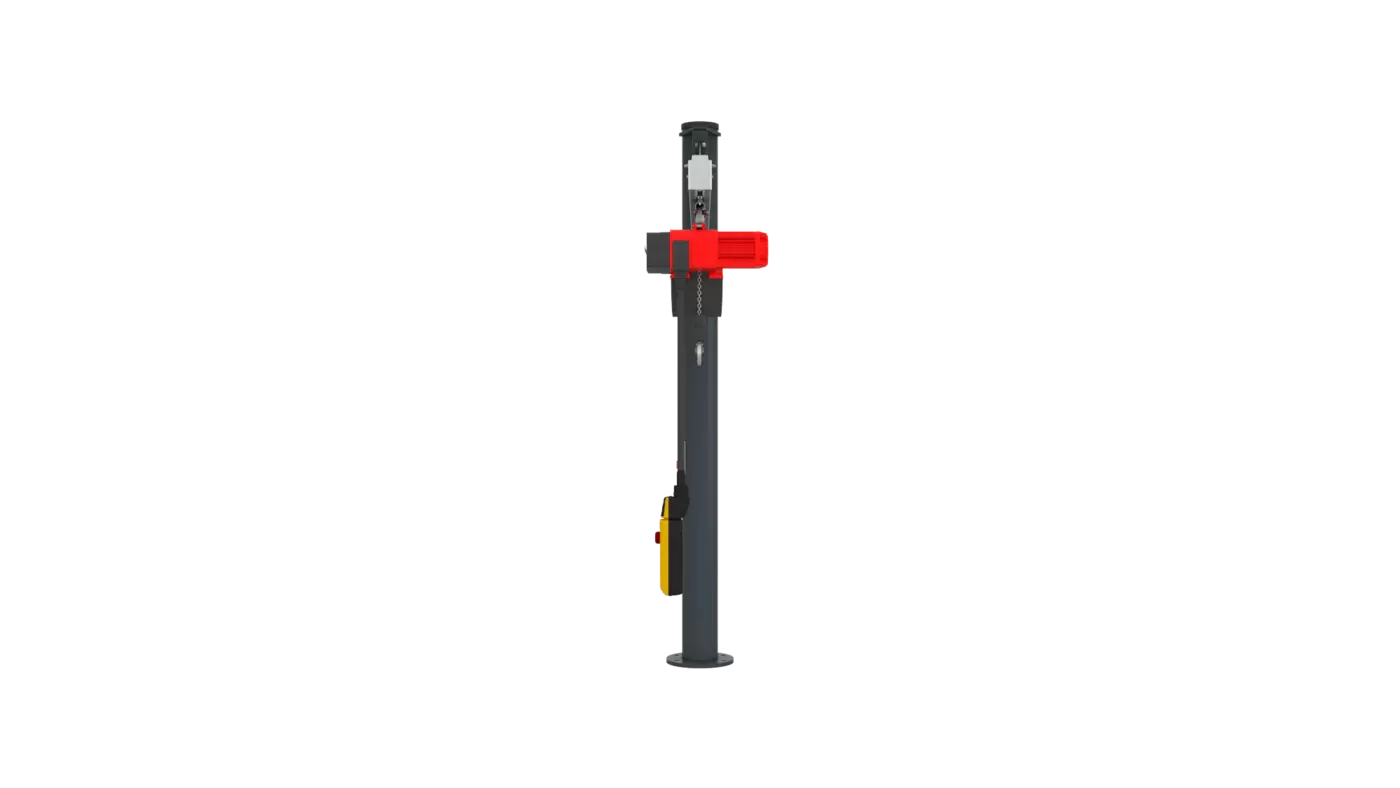

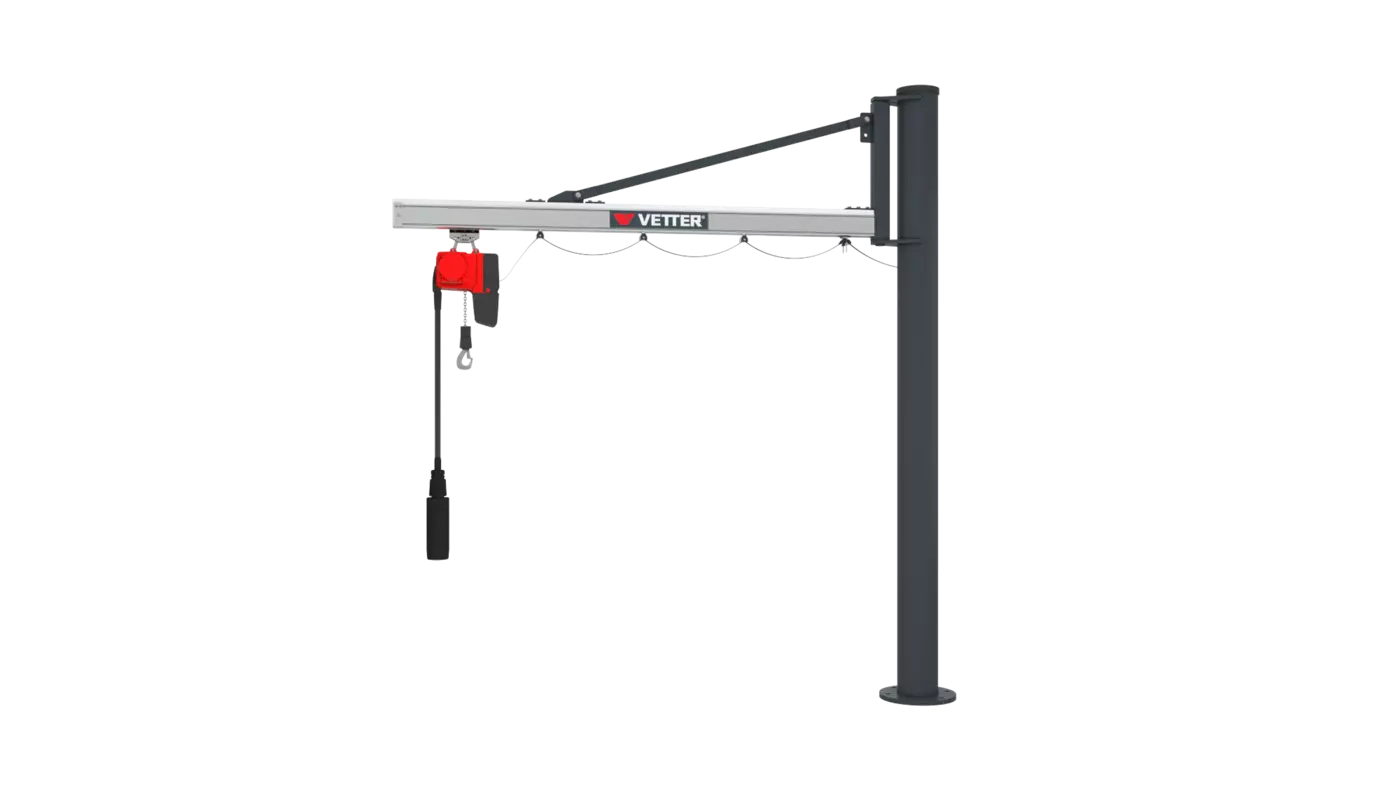

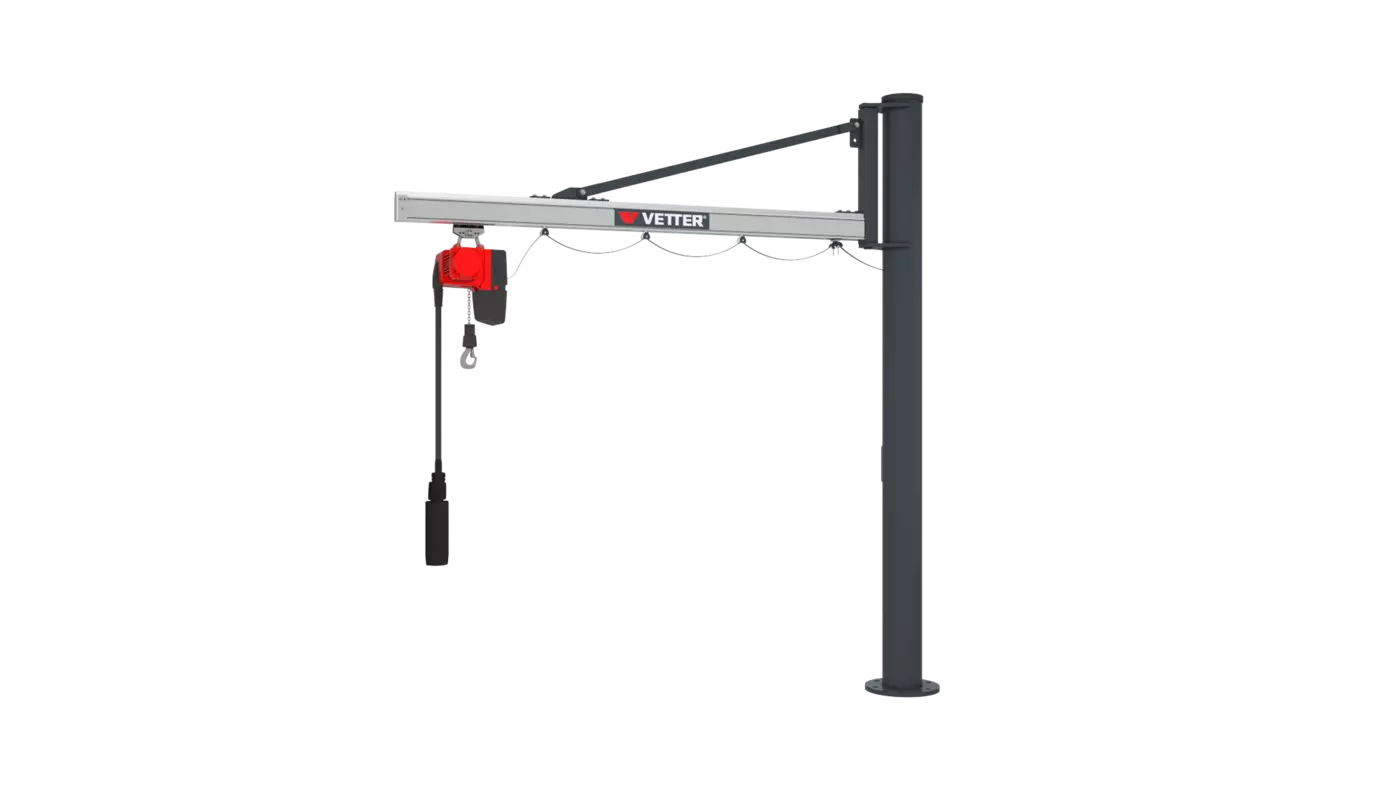

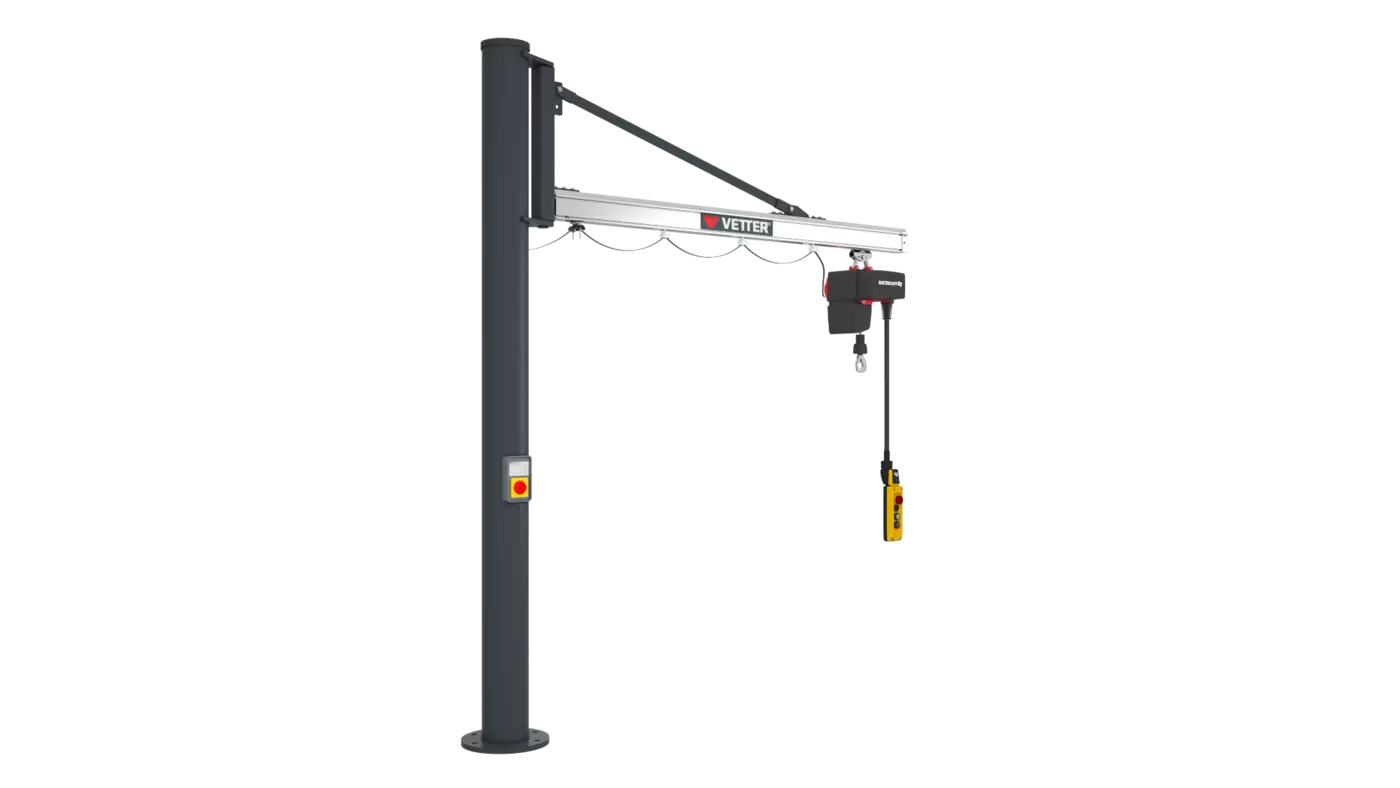

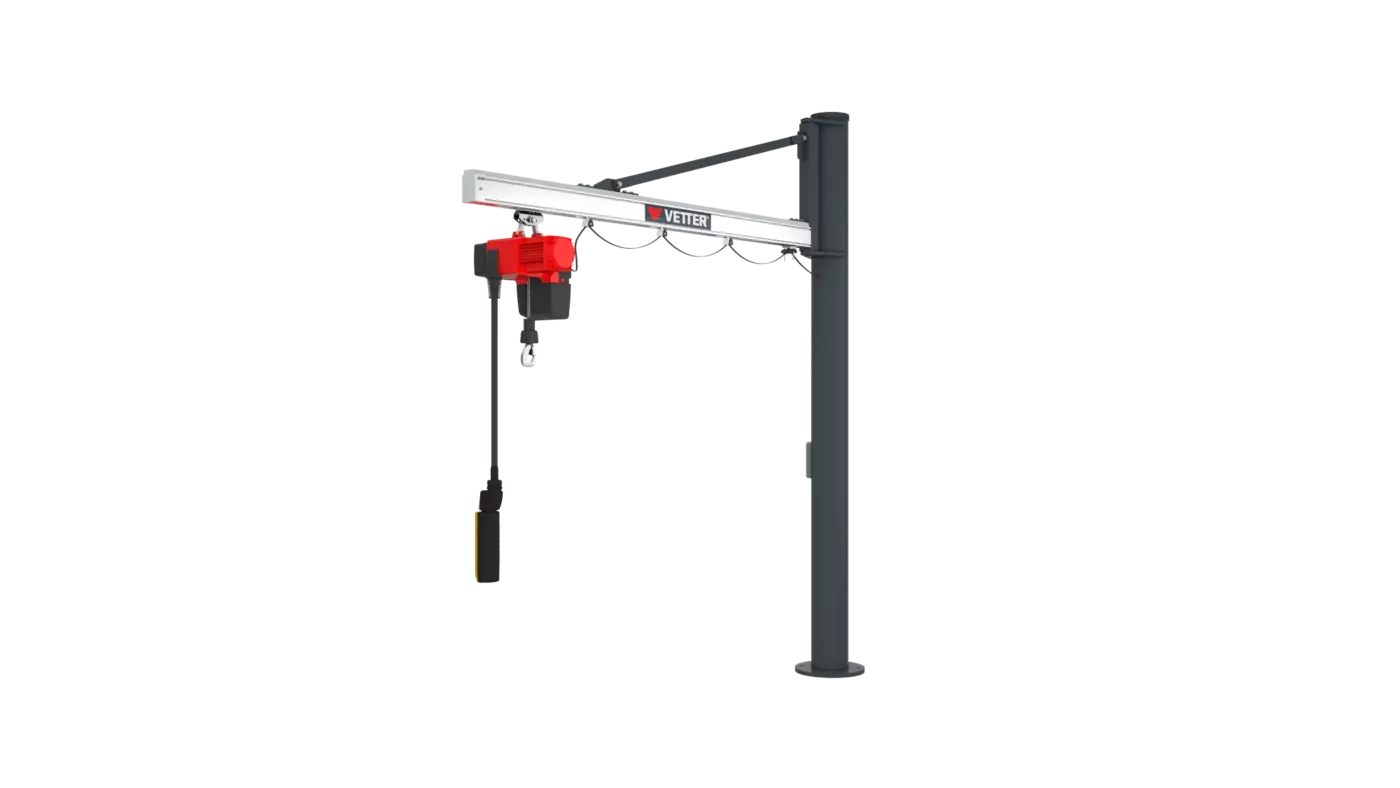

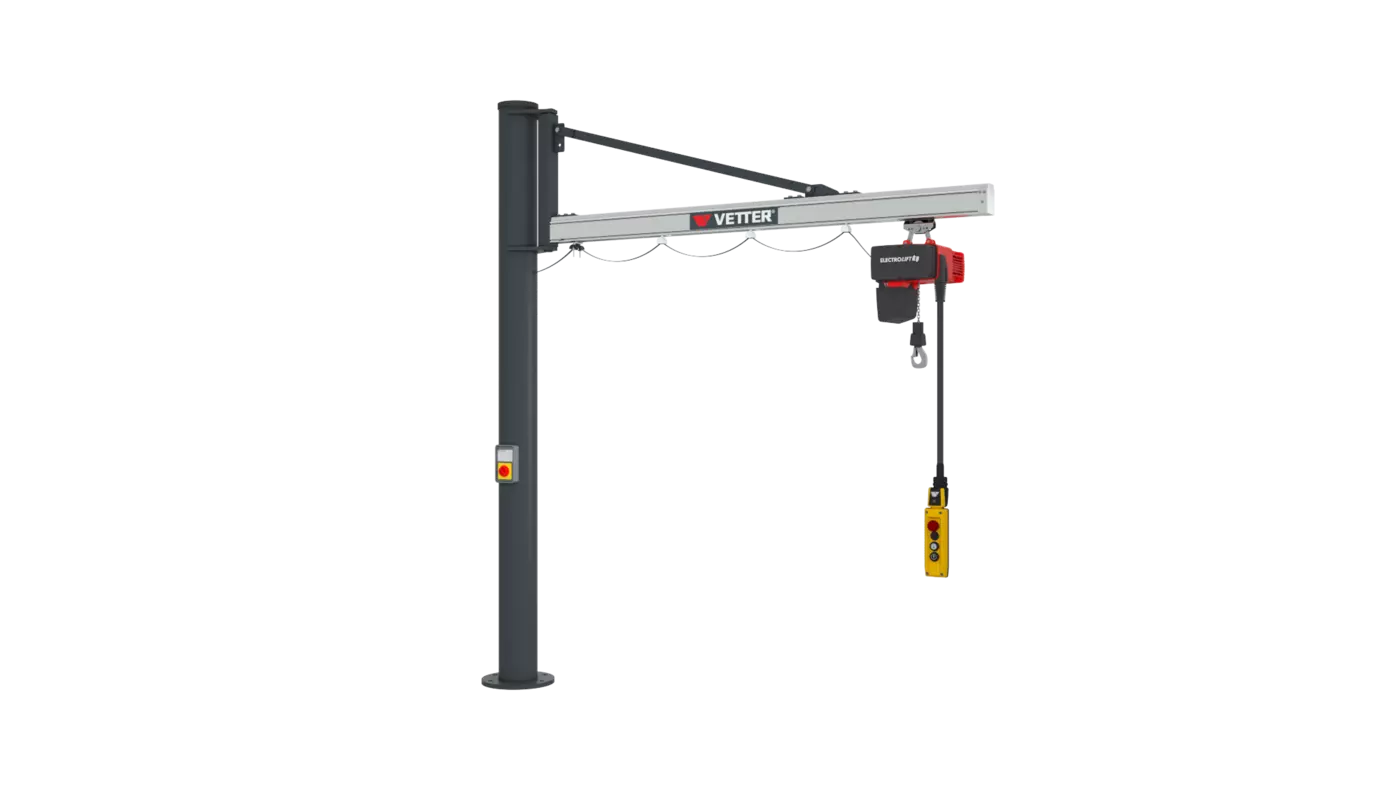

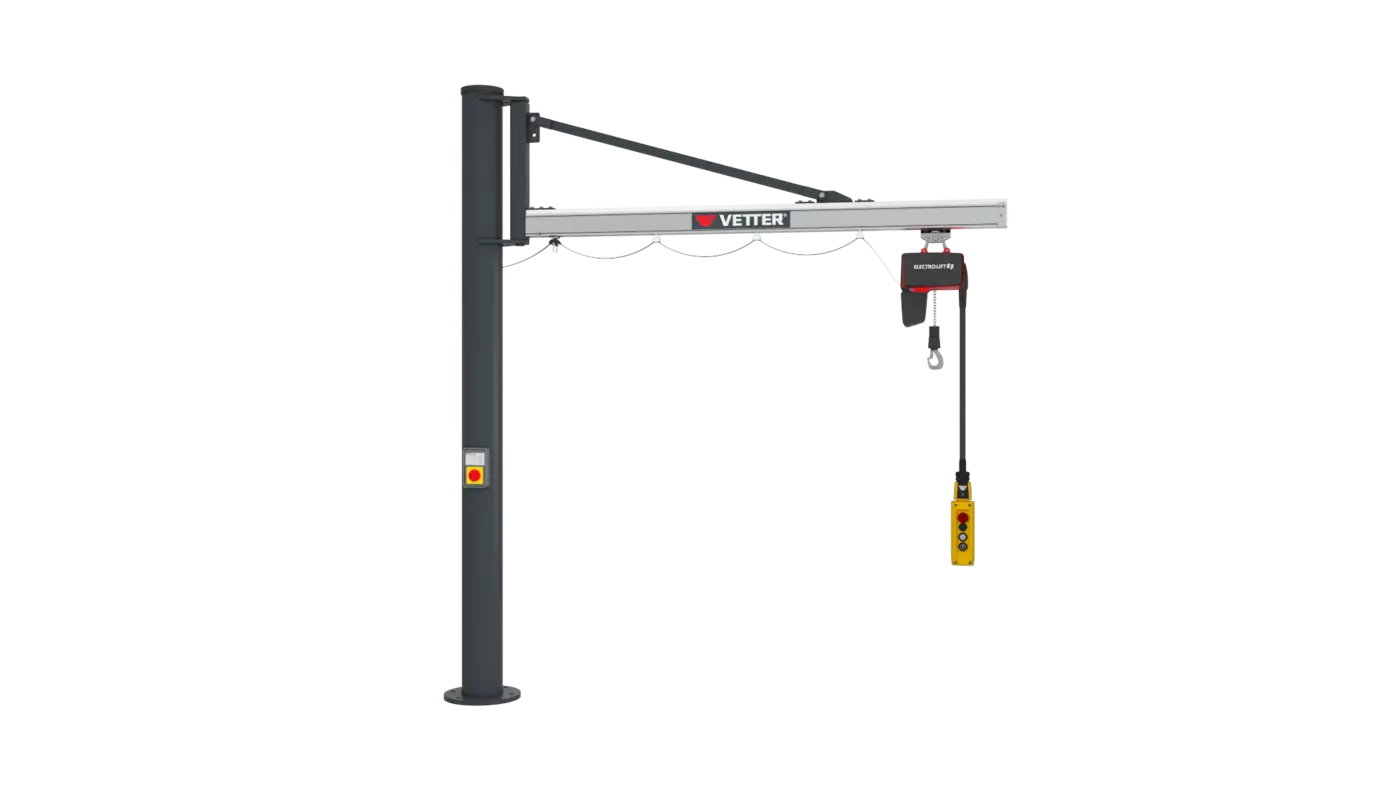

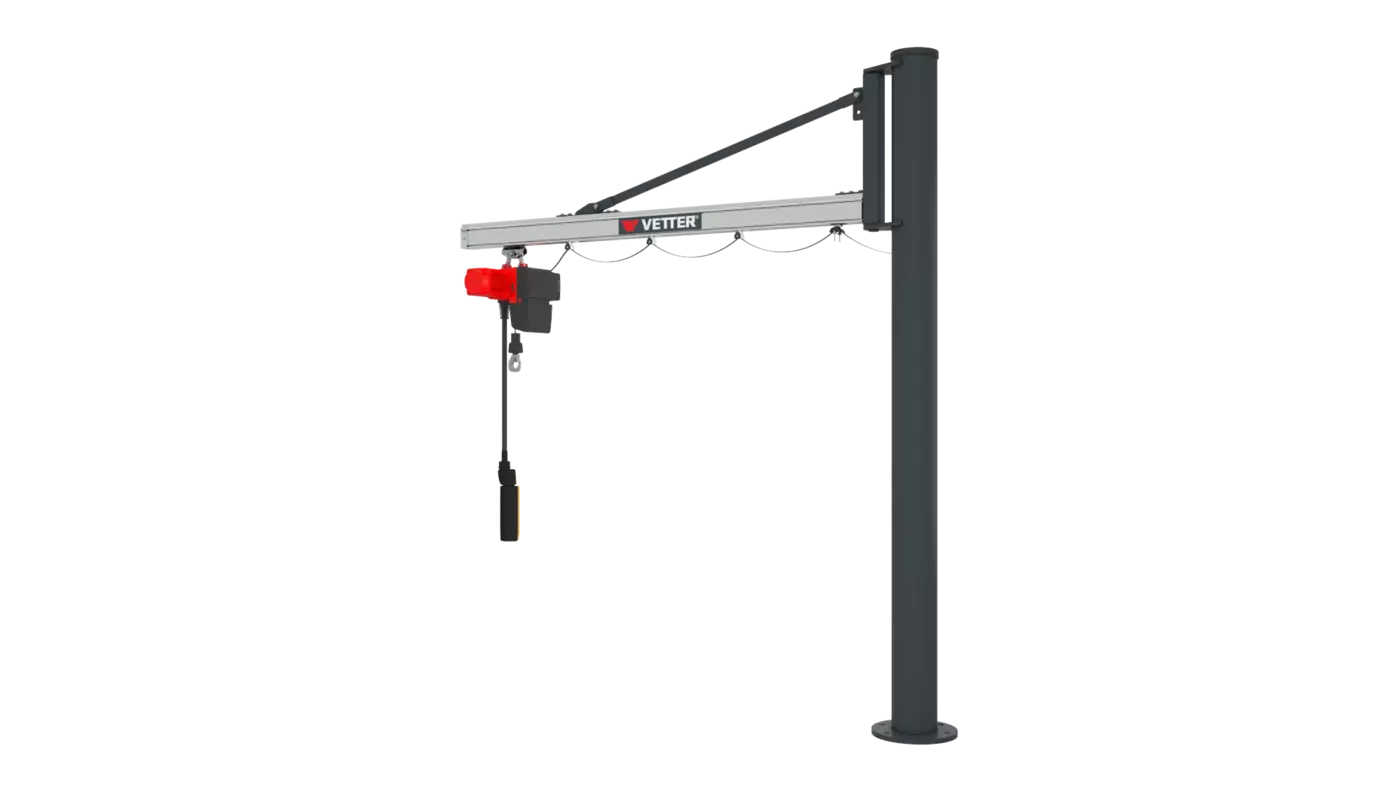

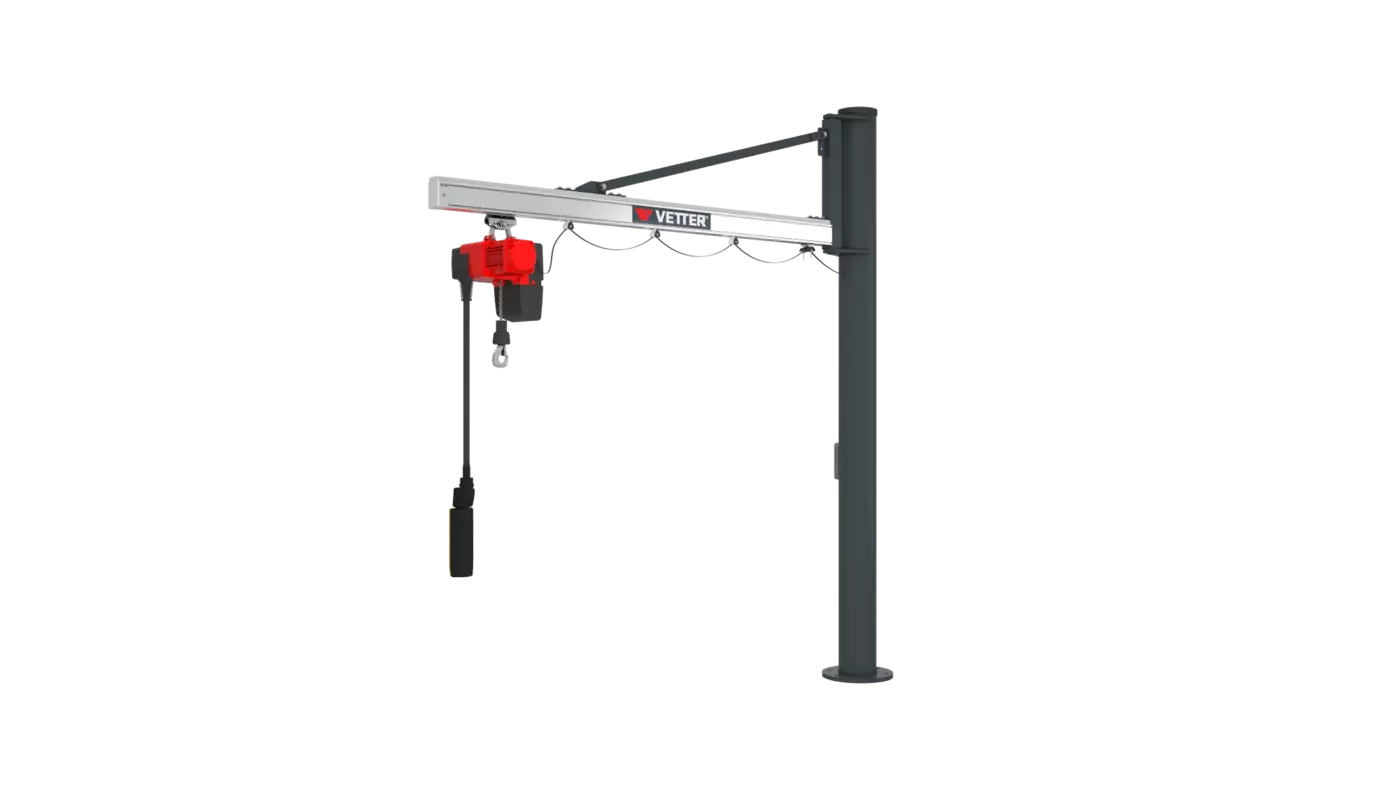

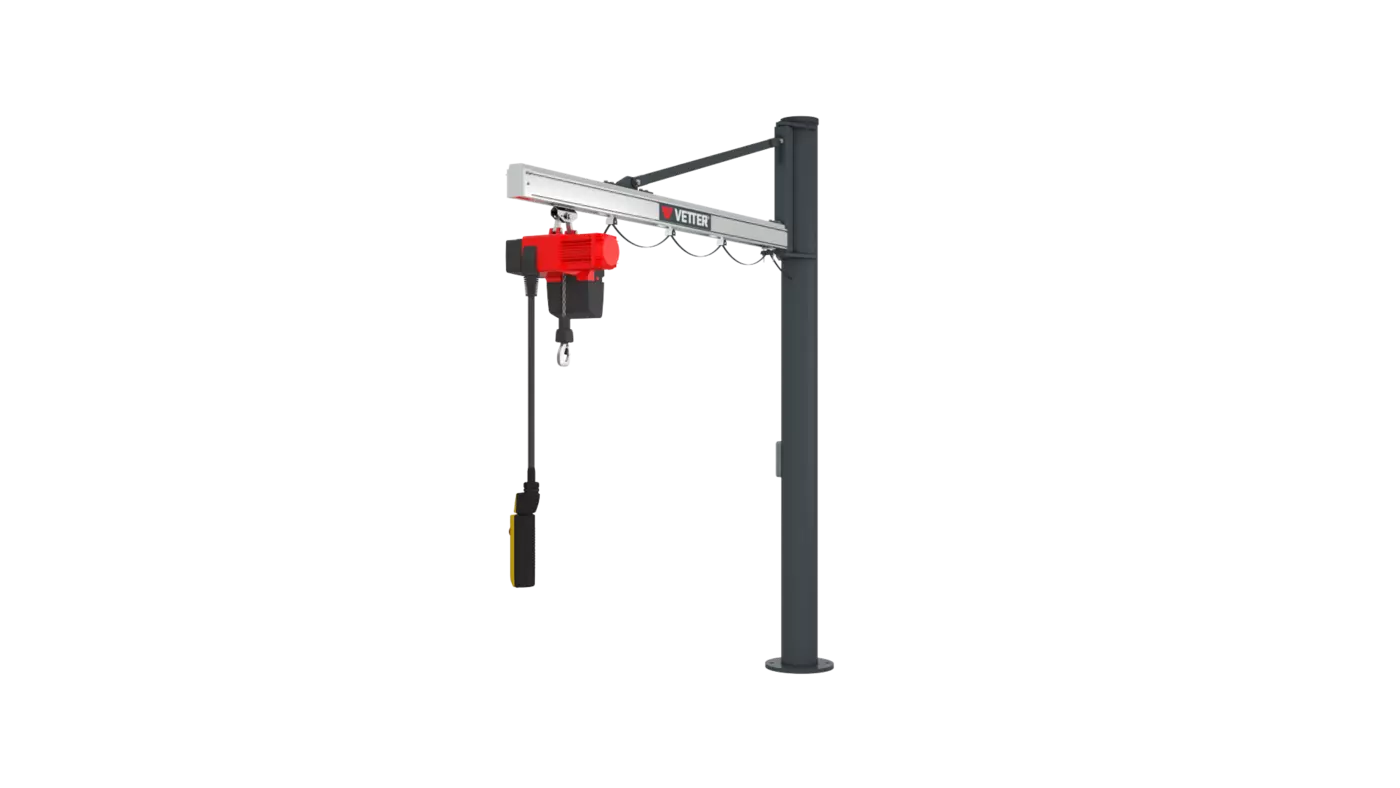

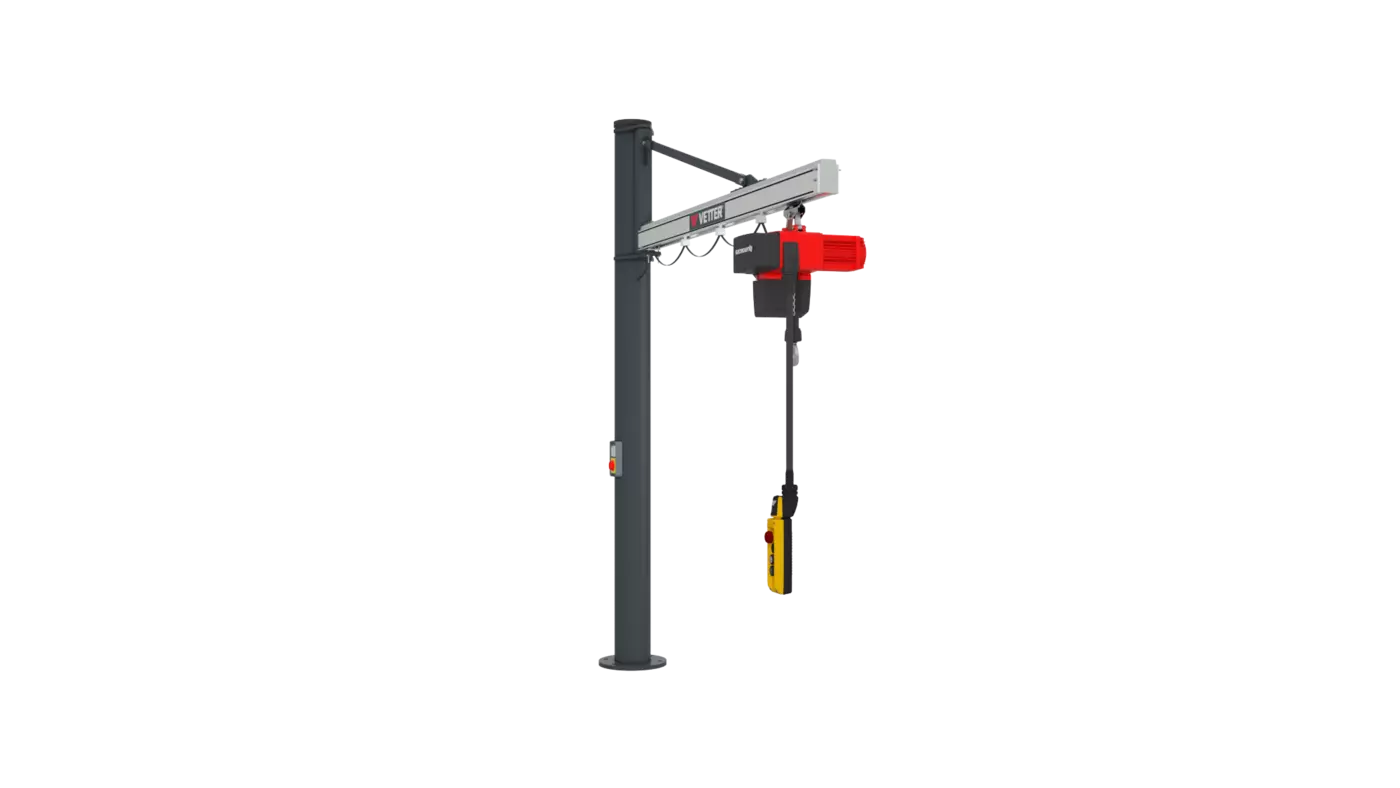

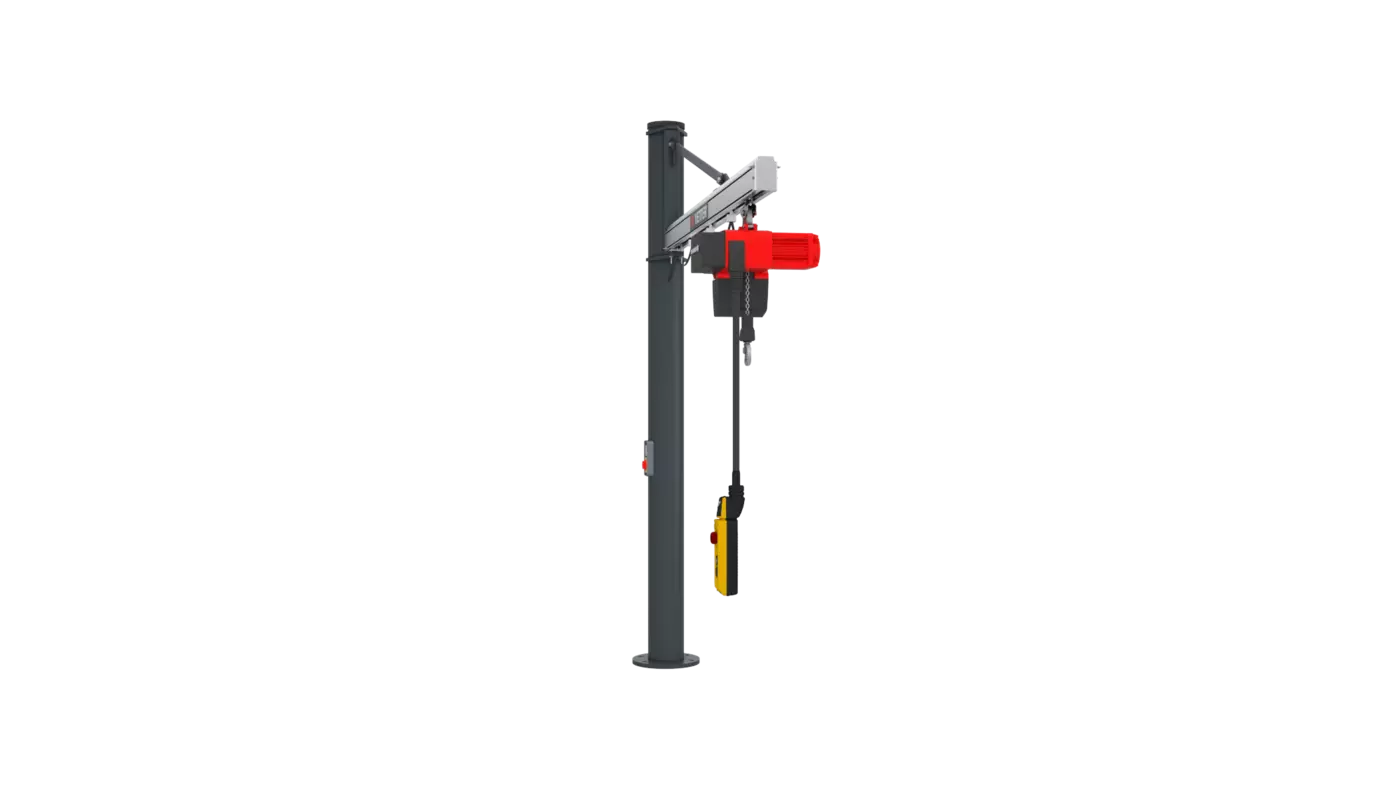

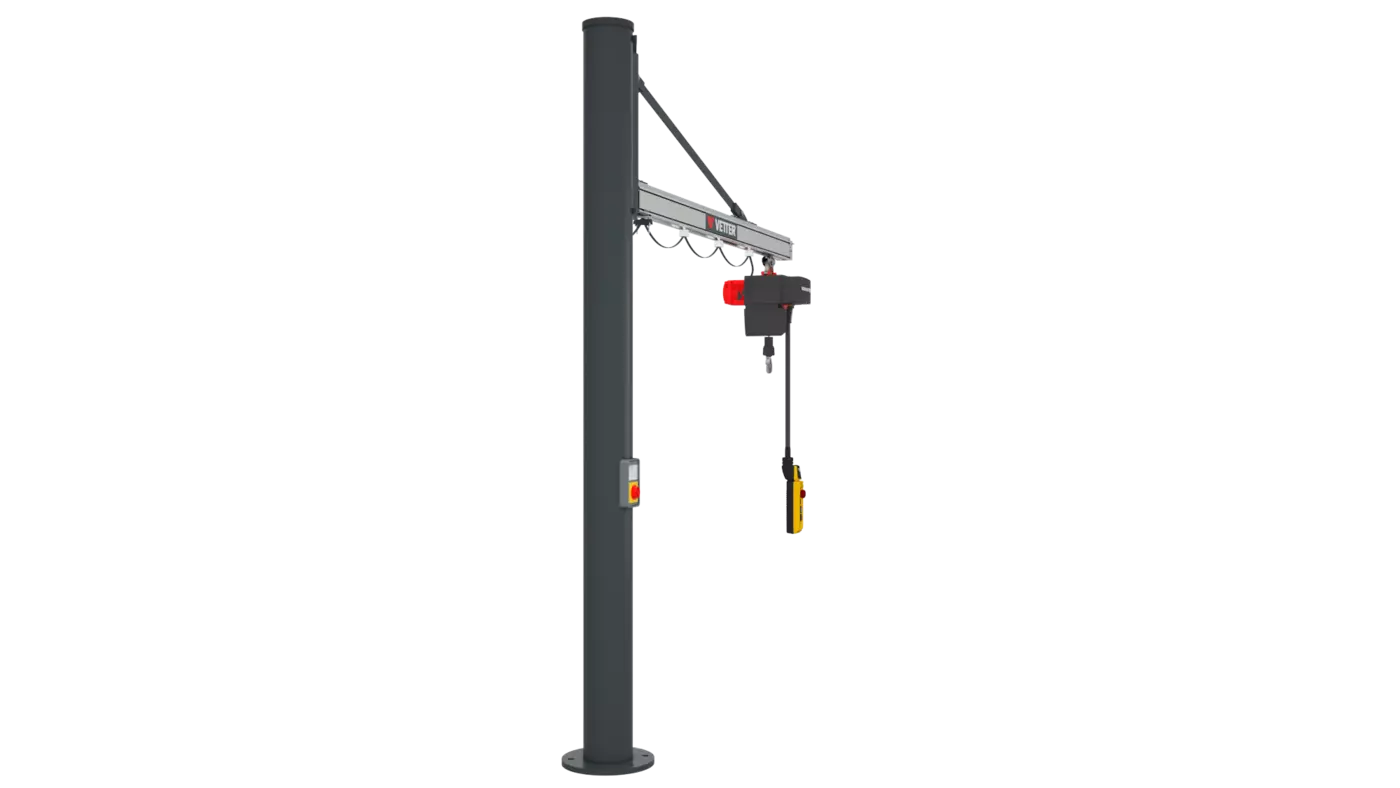

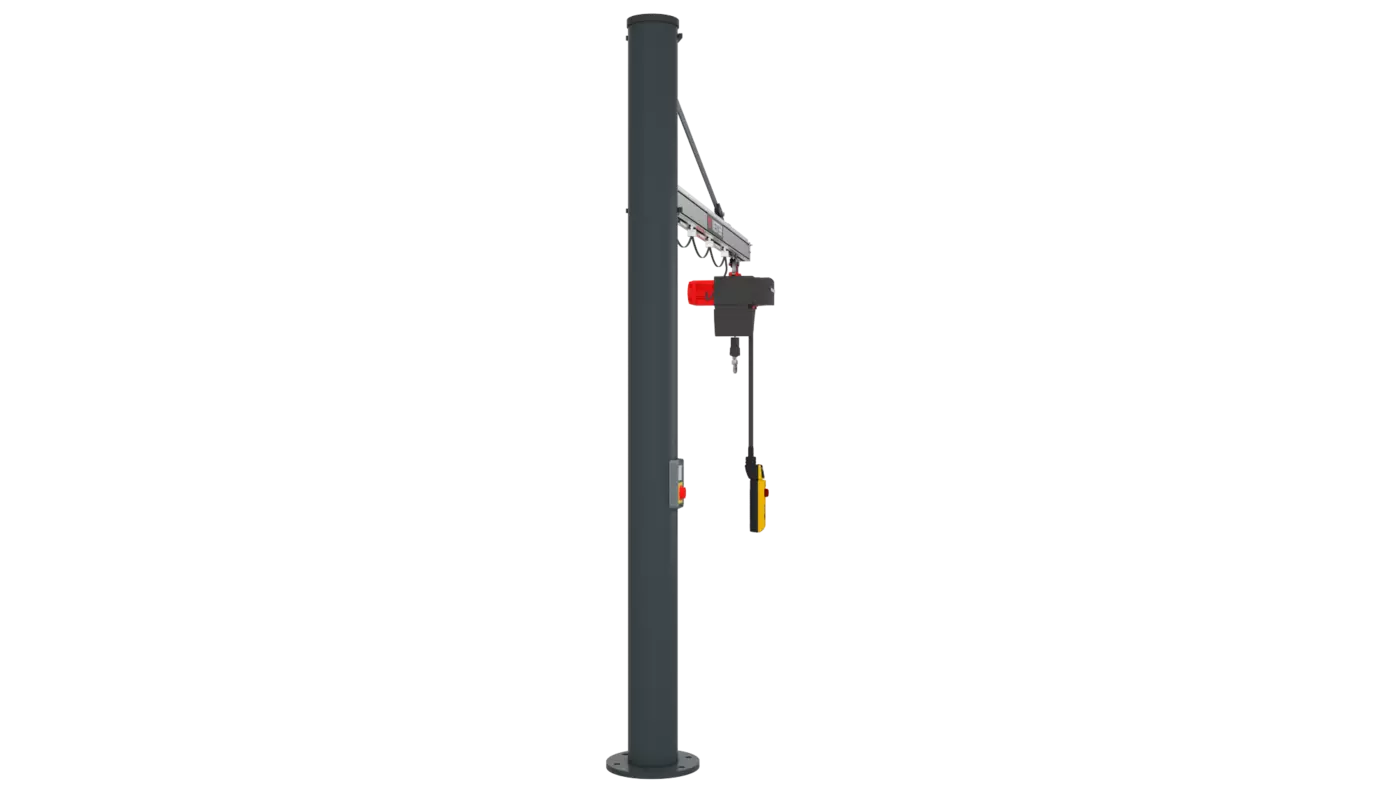

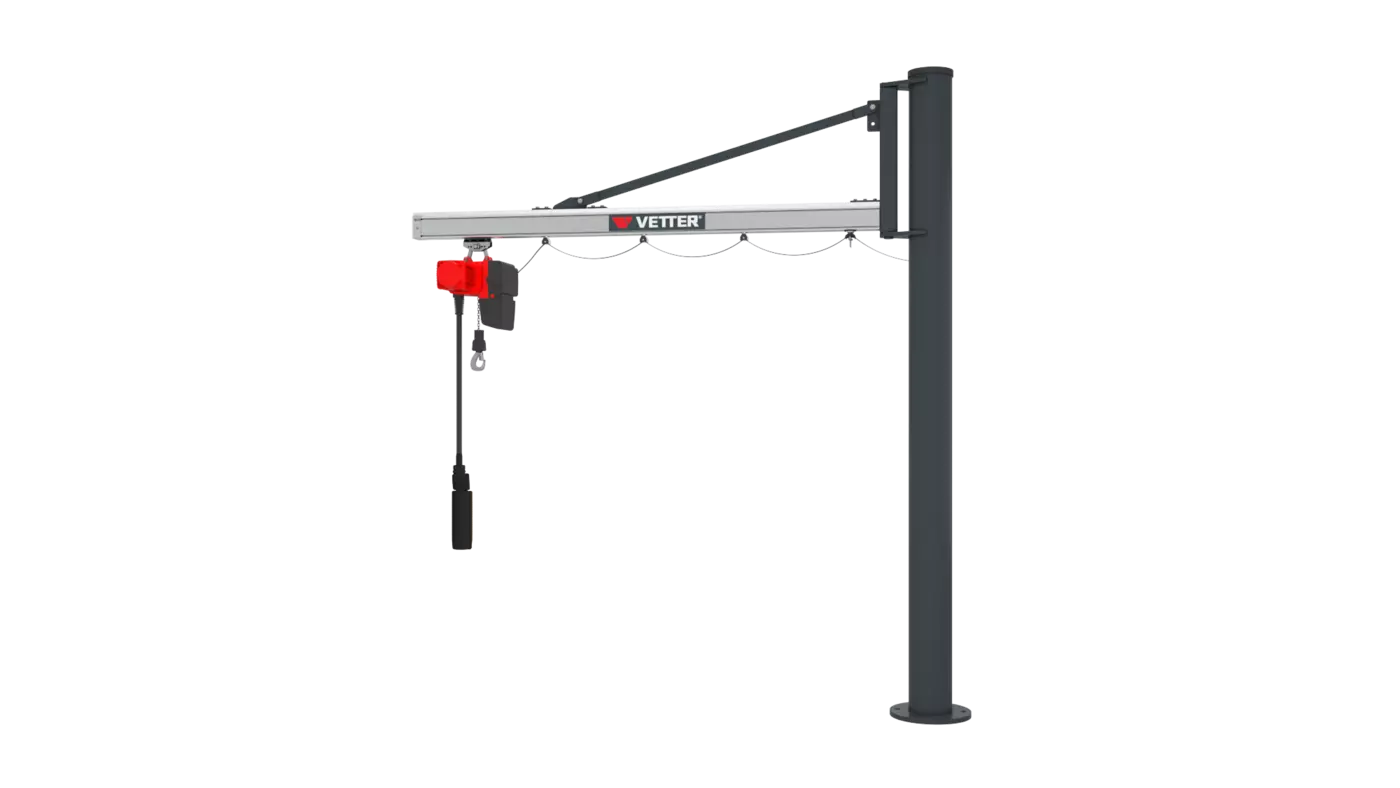

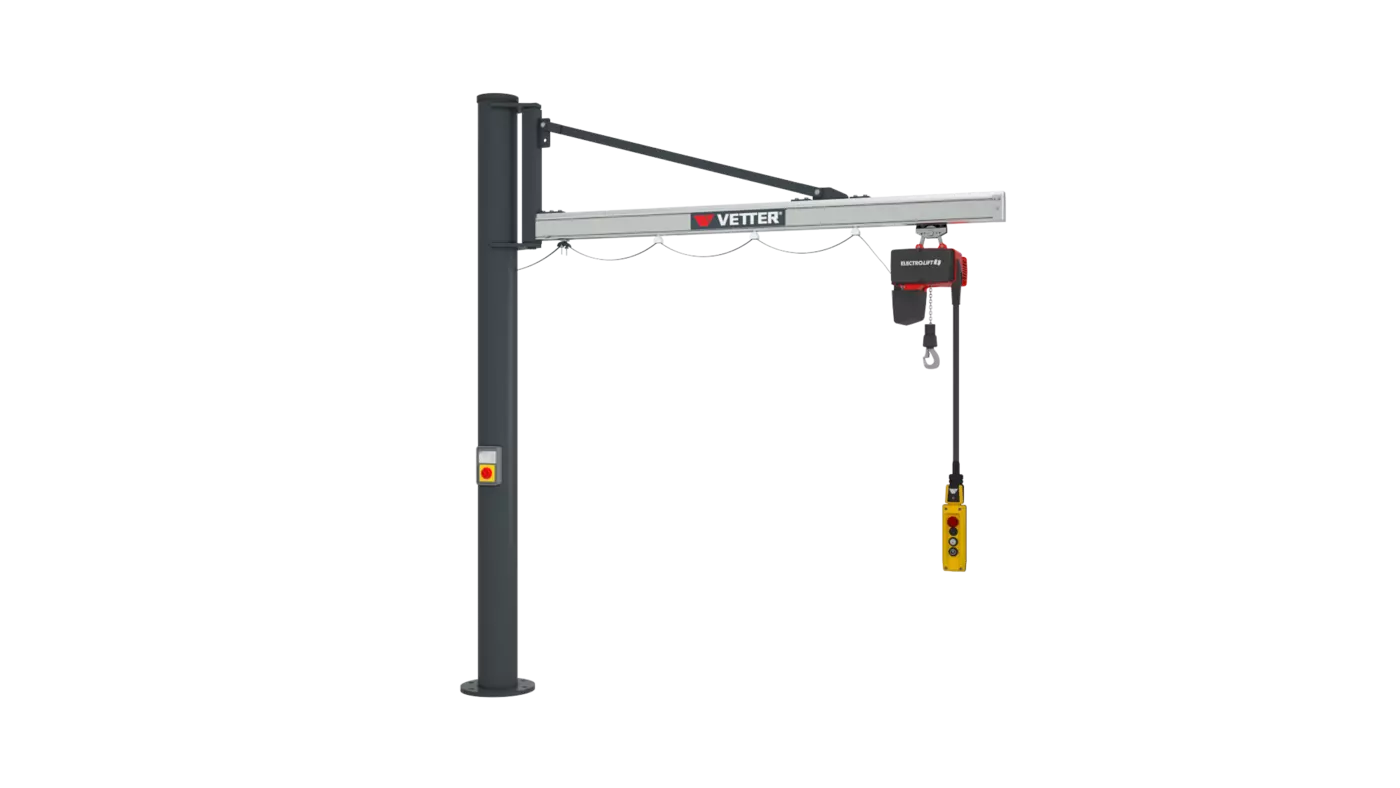

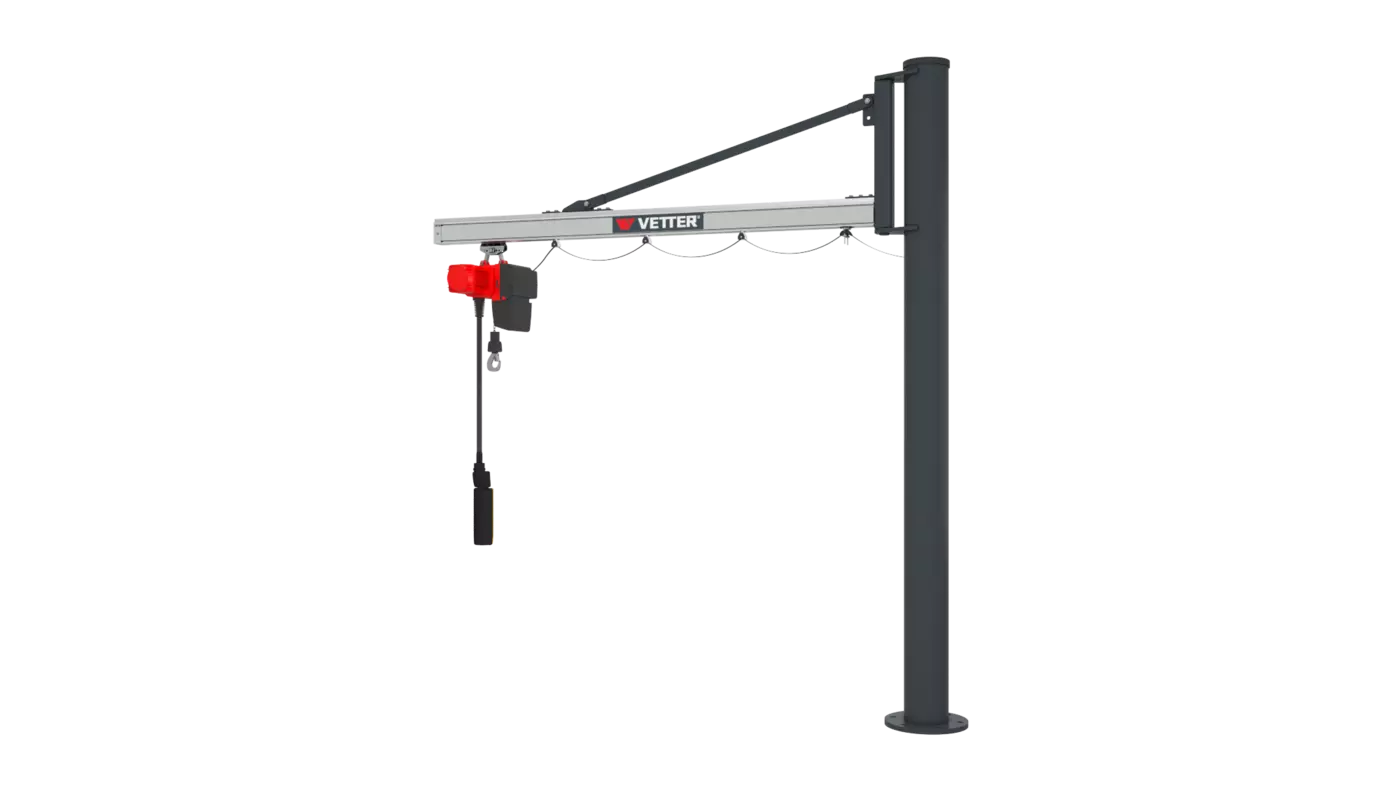

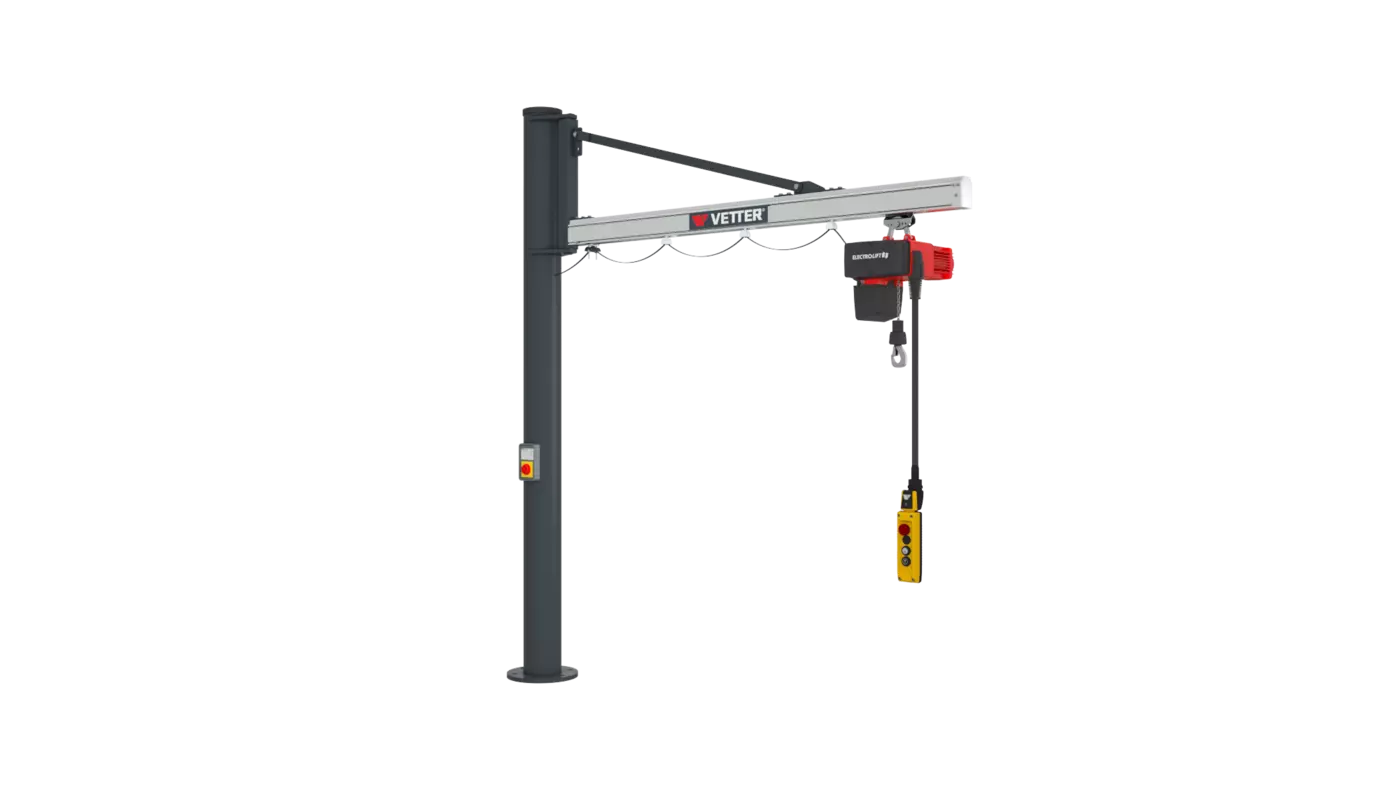

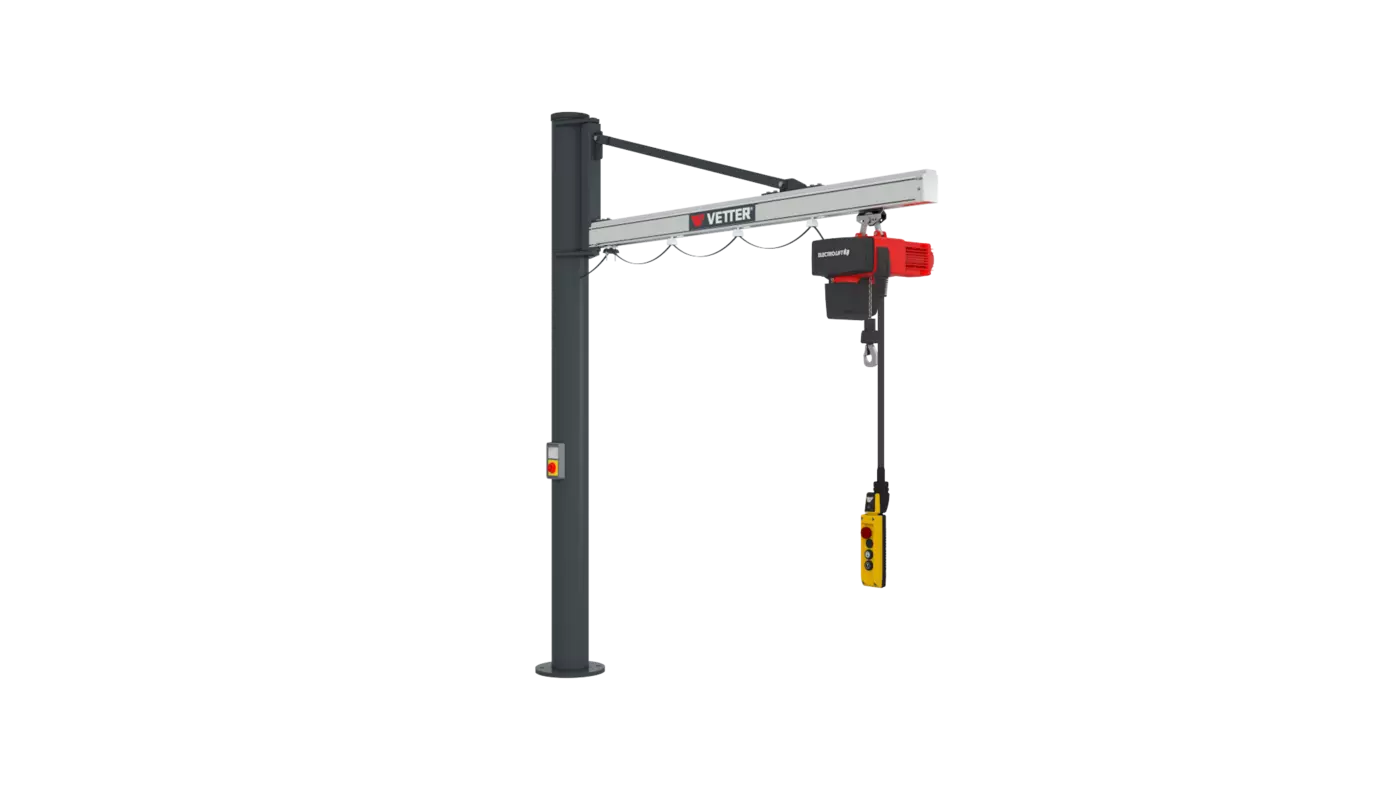

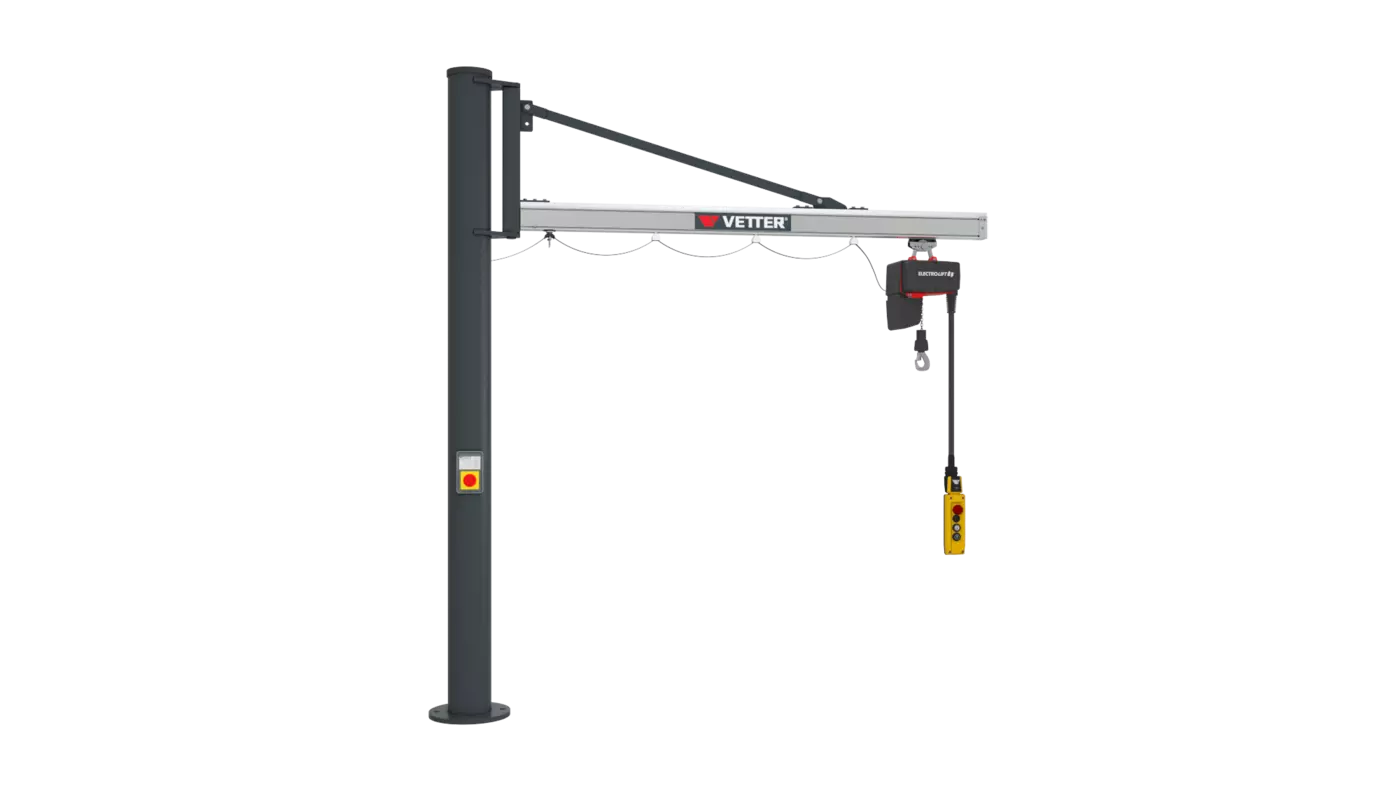

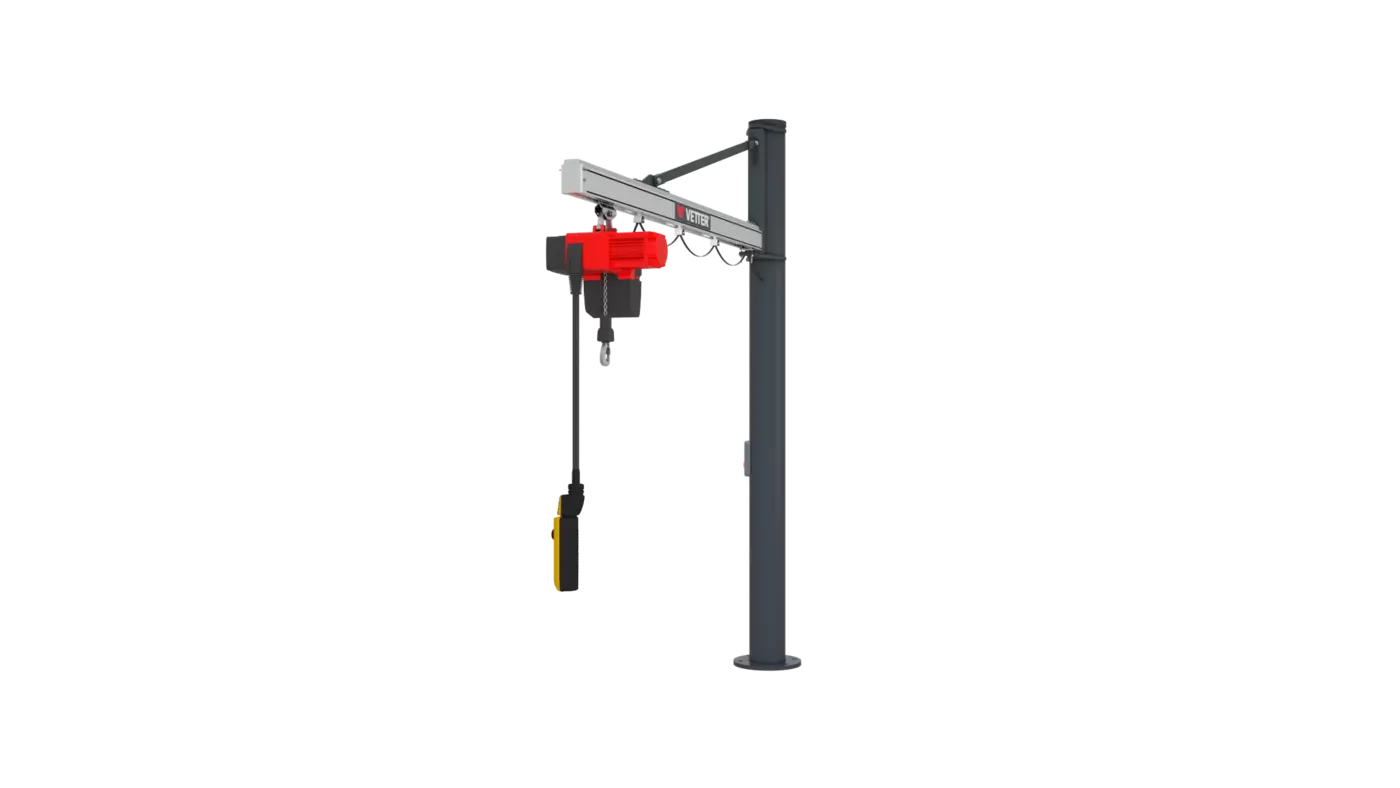

3D-Ansicht
Accessories
Fastening
Dowels on existing concrete floor
DowelPlate system VAS2
The round solution for doweling the slewing crane on existing concrete floor. No complicated foundation work is necessary.
Anchorage with anchors
AnchorFix
The classical anchorage with anchors, temolate and a set of nuts and washers. Delivery also comprises a detailed foundation plan with information about foundation size and required reinforcement.
Anchorage without screws jutting out
TopAnchor
The alternative anchorage without screws jutting out (no trip hazards). The foundation area is kept free and accessible until the final intallation of the crane. The crane can be put into operation immediately, because no grouting is needed.
Anchorage with optimum ease of installation
CompactAnchor
This anchorage offers th advantages of TopAnchor an is furthermore very easy to install. There is no need to mount separete parts on site. Positioning in the foundation pit is easy done by set screws.
Fastening to steel structure or machine
Base flange, flush
Base flange, flush or plane machined surface, designed to attach the crane to a steel structure or machine. Fastening screws to be provided by the customer.
Other

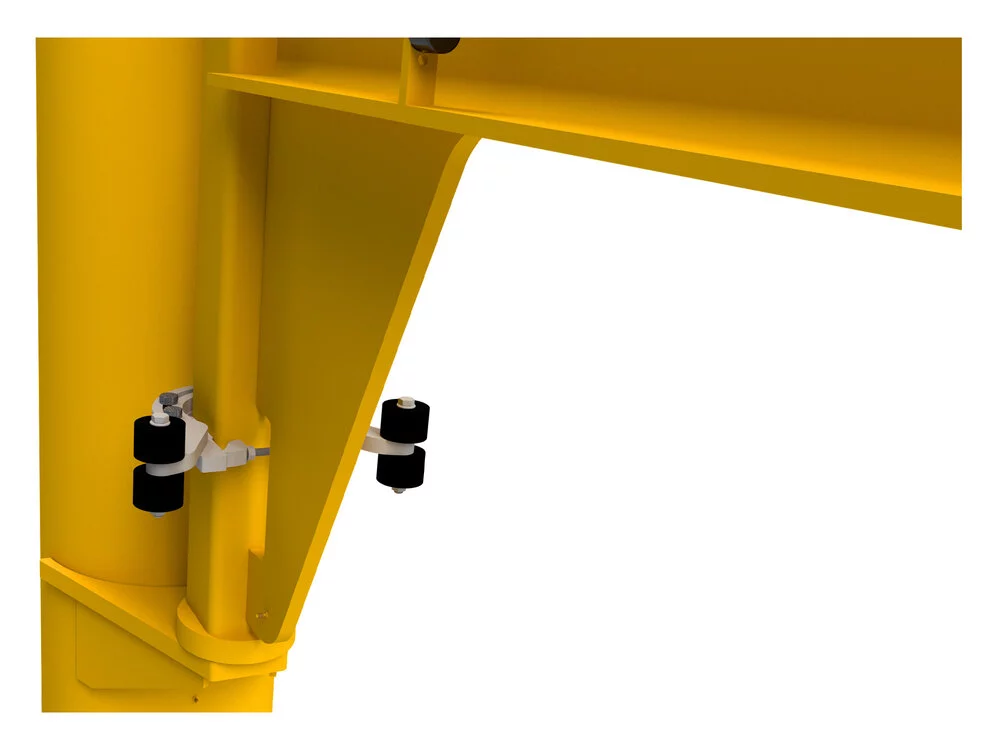

Slewing limitation
Mechanical slewing limitation, can be installed and adjusted easily and continuously.

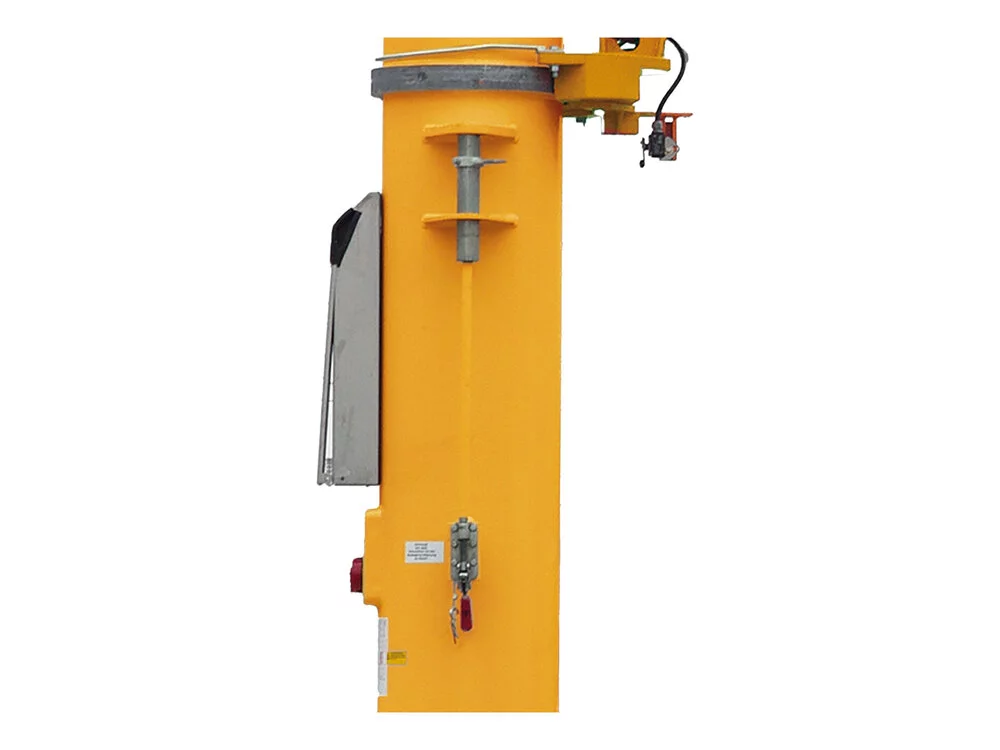

Locking device
For locking the jib arm in several positions. Applied by lever arm / traction rope (depending on crane
type) with control lever. Also to be used as immobilizer system up to wind force 7 Beaufort (only when crane is switched off and hoist is in idle position).
Surface finish

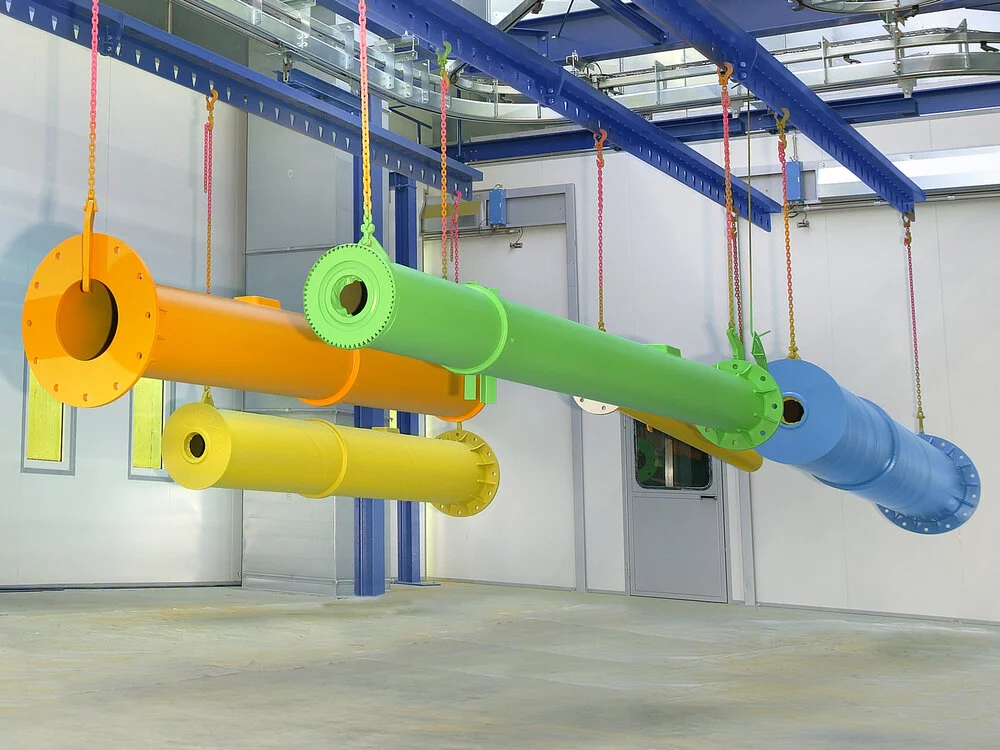

Paint system for indoor use US/UW
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 7016) with a nominal layer thickness of 80 µm. The jib is finished in Aluminium anadised as standard.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
