Column-mounted slewing jib crane
Type PR
Tip The DowelPlate system VAS2 can be used to fasten the crane.
Product highlights
- Infinite slewing by 360° thanks to power supply by slip-ring assembly
- Especially easy slewing operation thanks to sophisticated ball bearing with pivot resistance regulator as standard feature
- Small stop clearance for maximum utilisation of effective outreach
- Compact design, perfectly suited for small rooms and installation on machines
- Large effective lifting height
- Column height and jib arm length can be adjusted to conditions on the spot
- Easy to install thanks to dowelling on concrete floor (optional)
The compact one
The slewing jib crane PR is our compact standard crane featuring an infinite slewing range.
You can use it in any workplace, such as packing tables or conveyor belts, where quick and easy operations with minimum muscle power and capacities of up to 1,000 kg are required. A sophisticated ball bearing makes slewing quite easy.
Due to its compact design, the crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms. It is even possible to mount it directly on a machine. The column-mounted crane PRIMUS perfectly meets your requirements since column height and jib arm length can be adjusted individually.
Regarding fastening options, you can make your individual choice from comfortable dowelling on concrete floor using the patented VETTER DowelPlate system VAS2, fastening on foundation using anchors, TopAnchor, or CompactAnchor, and base flange for fastening on a steel structure.
Moreover, we offer a suitable power supply, electric chain hoists ELECTROLIFT® with electric trolley as well as various other accessories.
This slewing crane type is also available as mobile crane which is not attached to the hall floor.

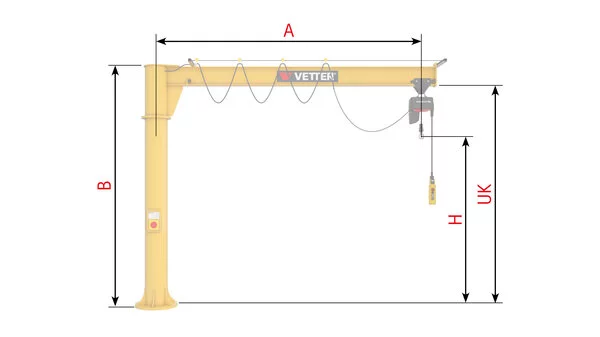

Technical data
| Capacity: | 30 - 1000 kg |
| Outreach: | 2000 - 7000 mm |
| Jib clearance: | 650 - 3500 mm |
| Total height: | 800 - 3650 mm |
| Slewing range: | 360° ∞ |
| EN 13001 Hoisting class: | HC2 |
| EN 13001 Stability class: | S2 |
| Jib design: | Low-profile |
| Slewing: | By hand |
| Hoist: | Chain hoist |
| Trolley drive: | By hand / Electrical |
| Installation location: | Indoor |
Outreach [m]
Capacity [kg]
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | |||||||||||
| 50 | |||||||||||
| 80 | |||||||||||
| 125 | |||||||||||
| 200 | |||||||||||
| 250 | |||||||||||
| 400 | |||||||||||
| 500 | |||||||||||
| 800 | |||||||||||
| 1000 |

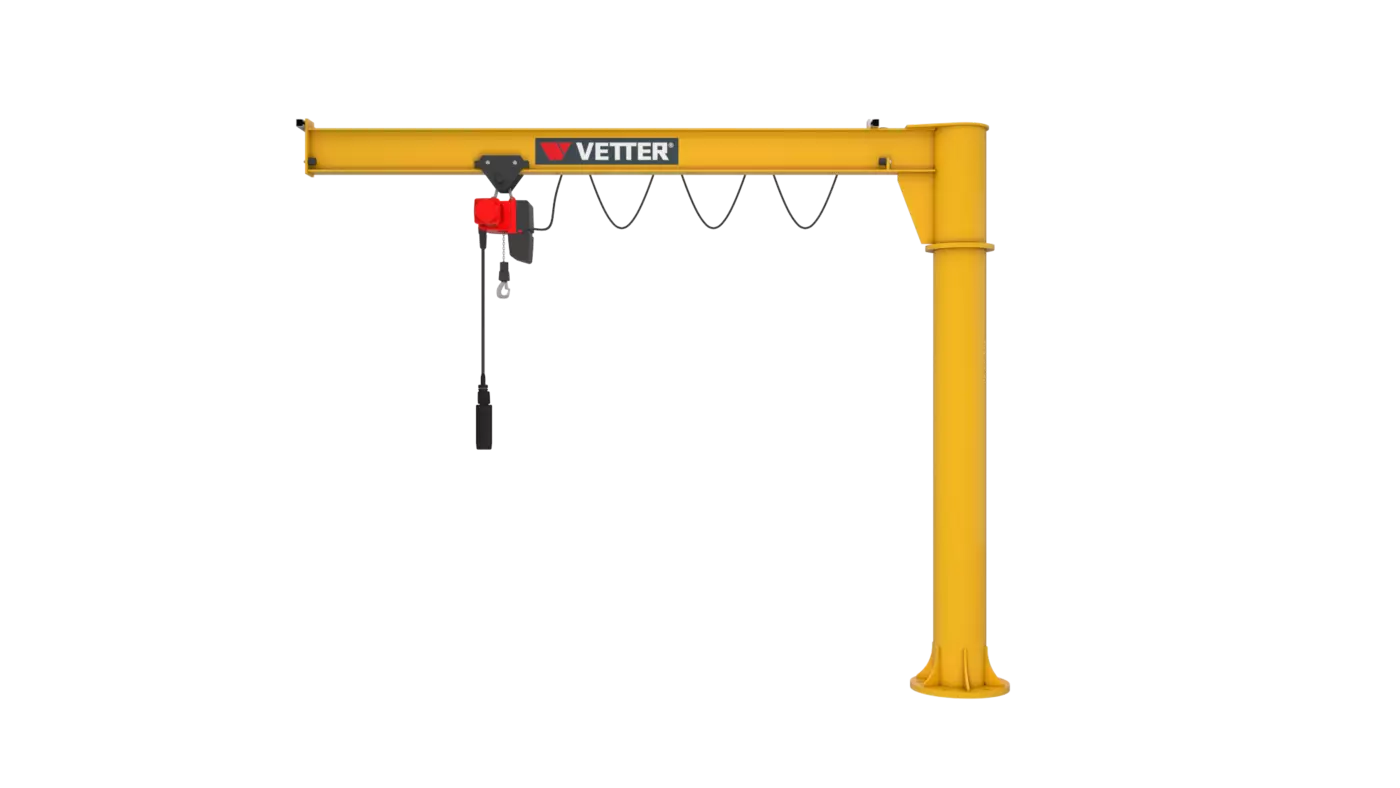

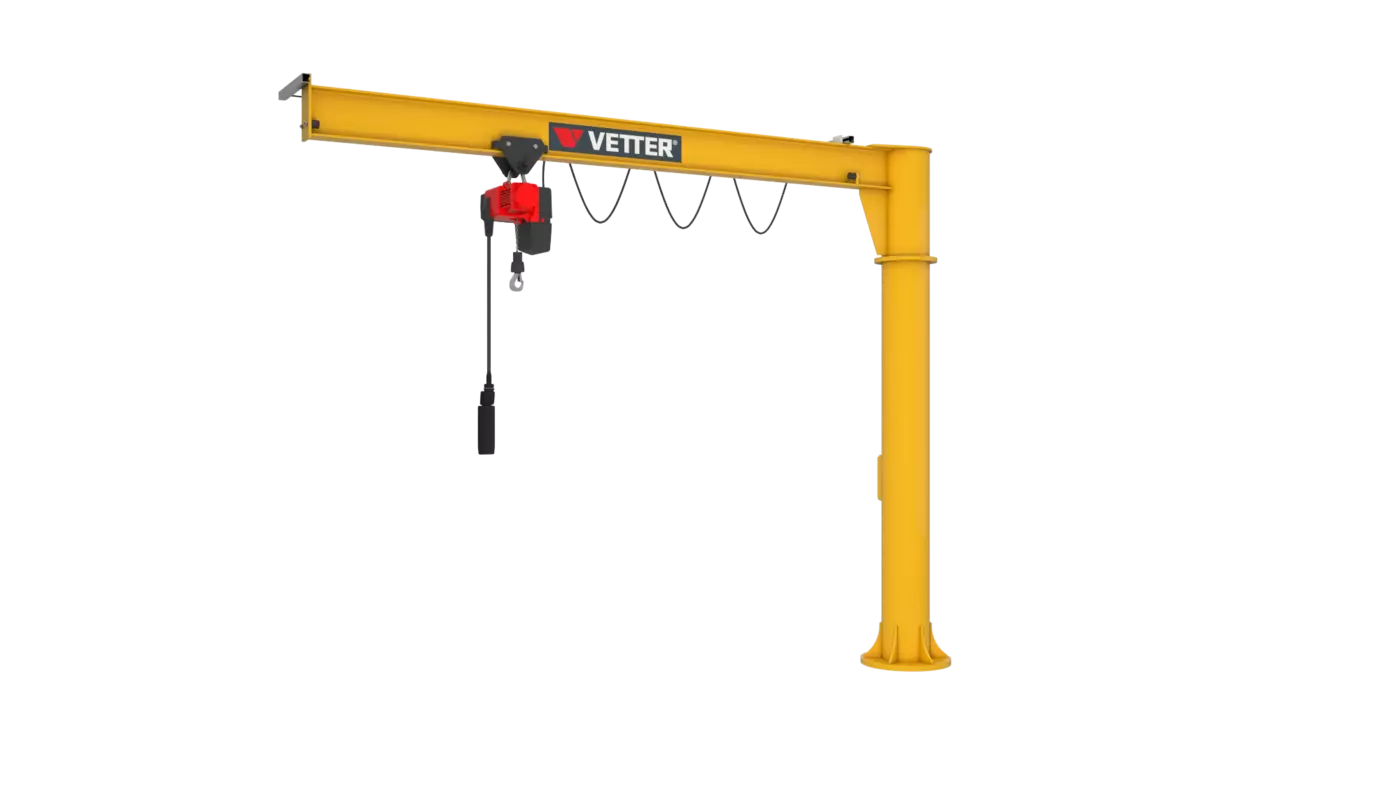

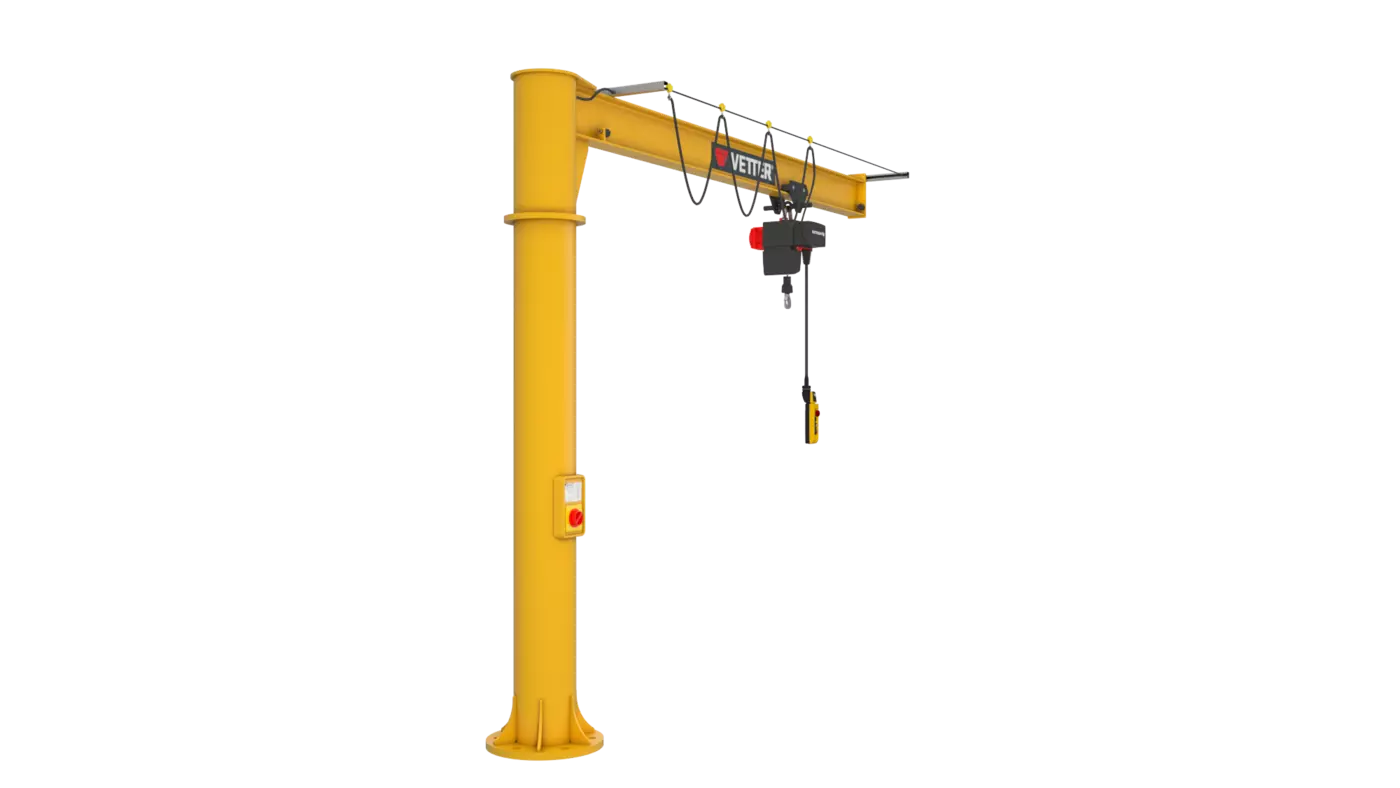

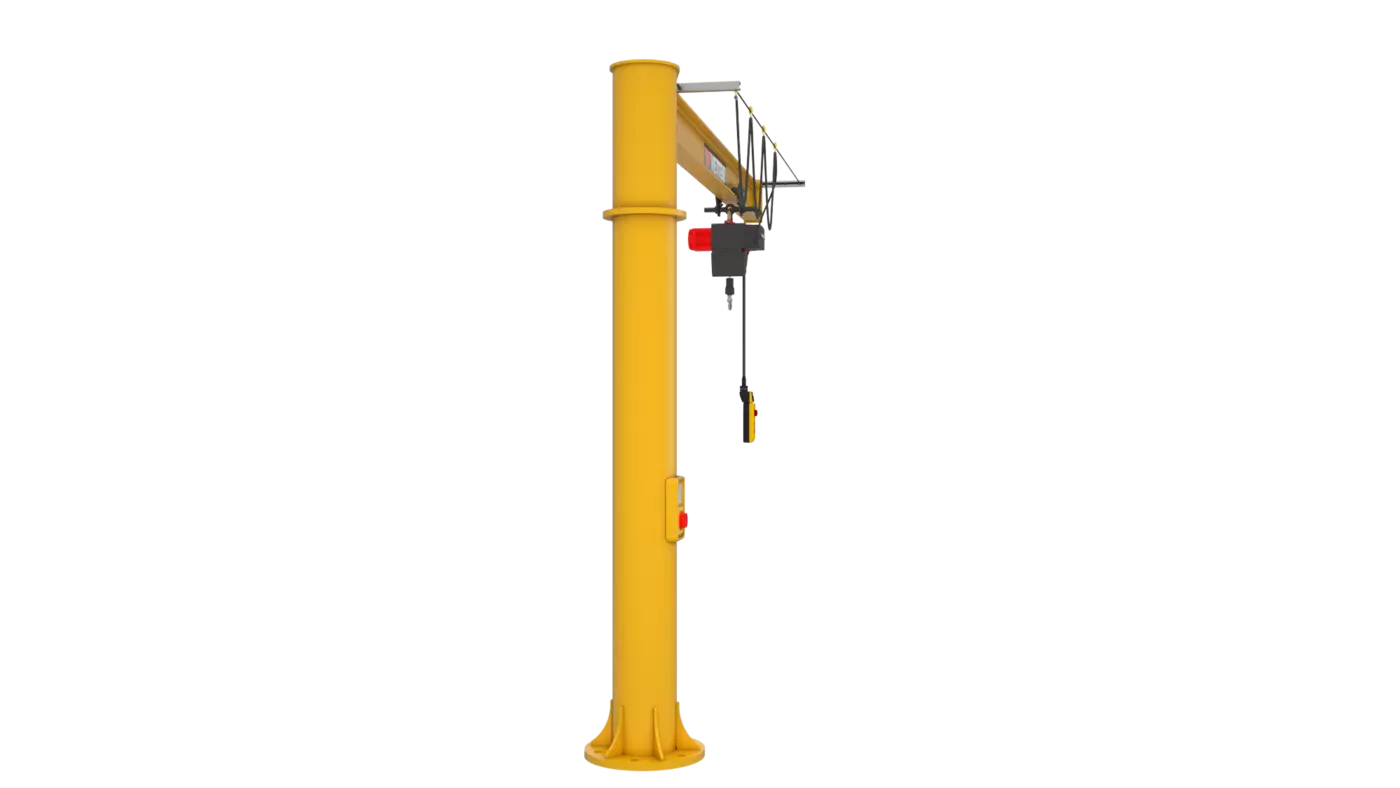

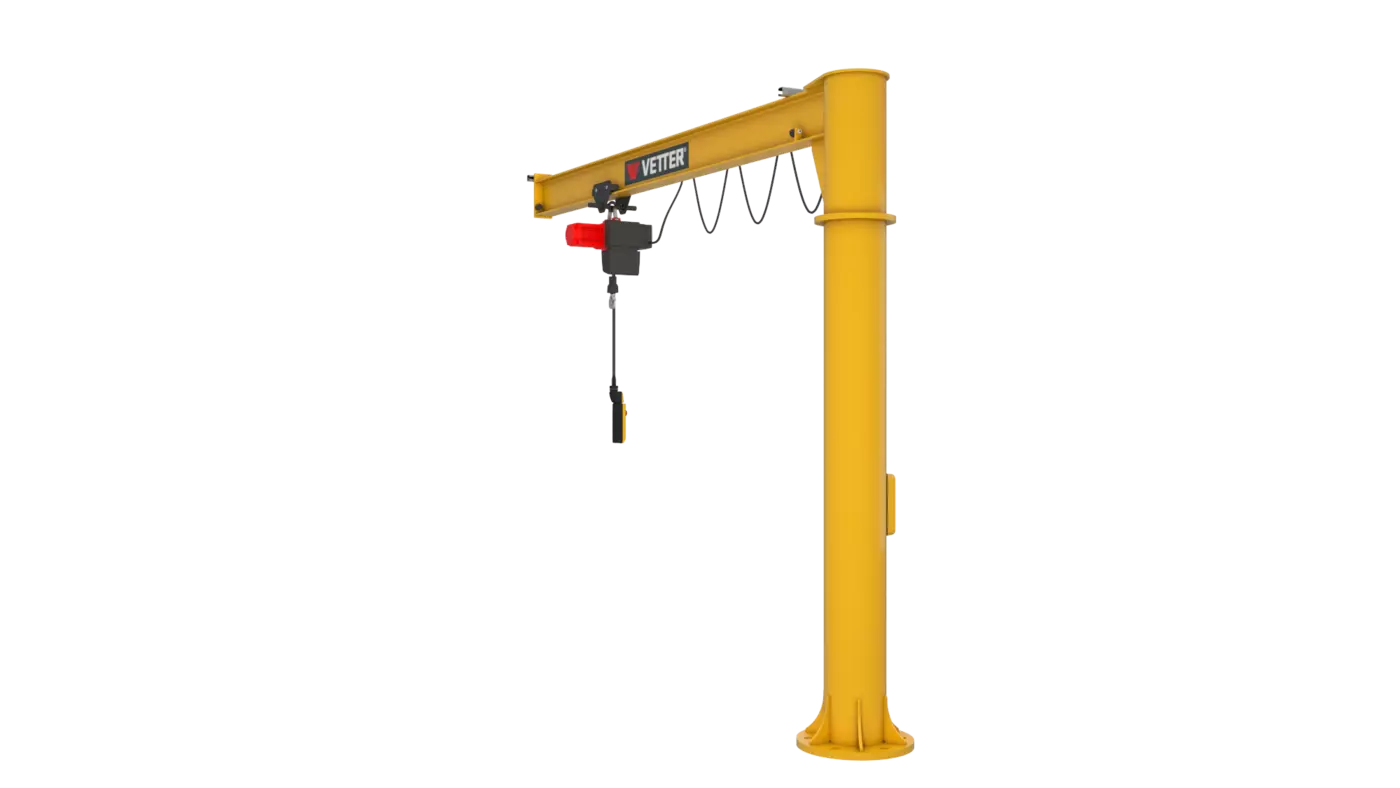

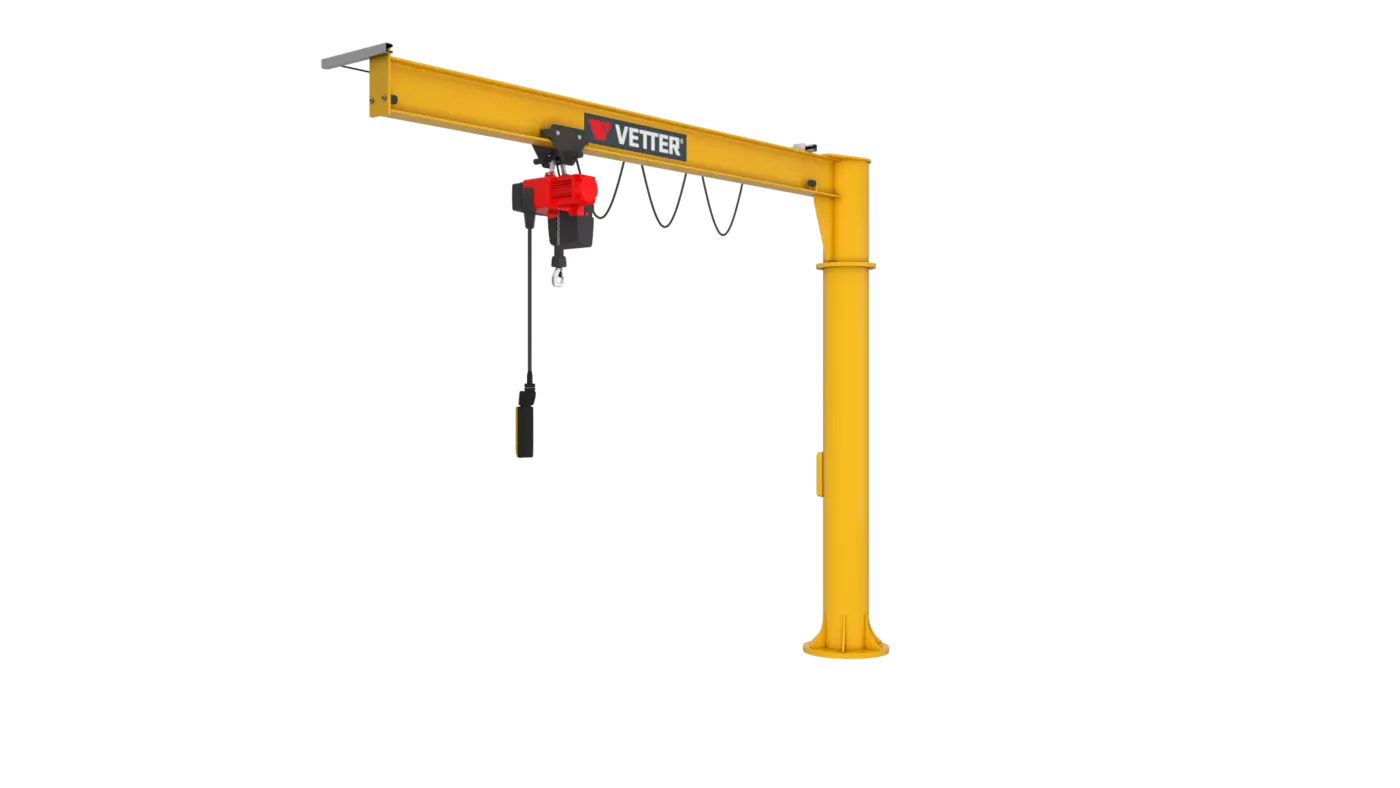

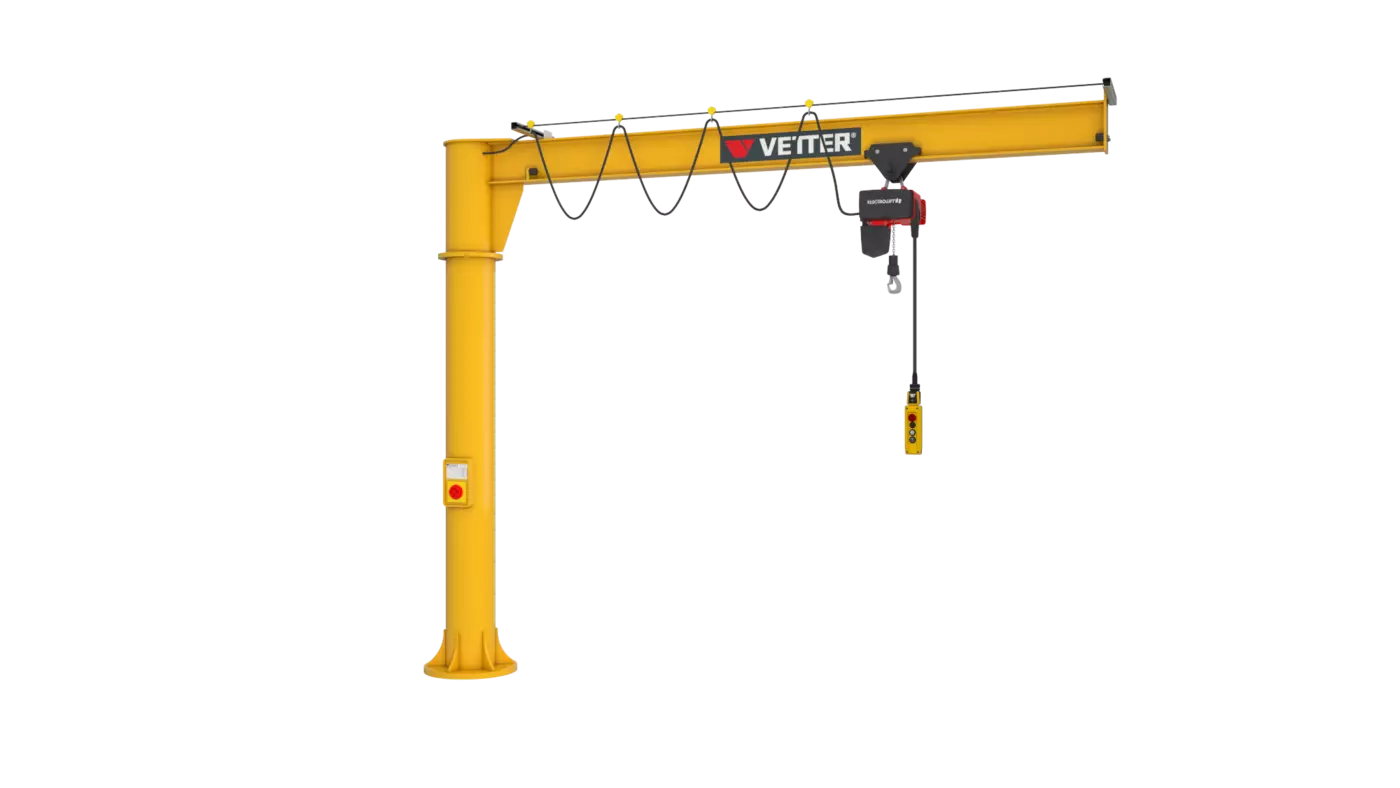

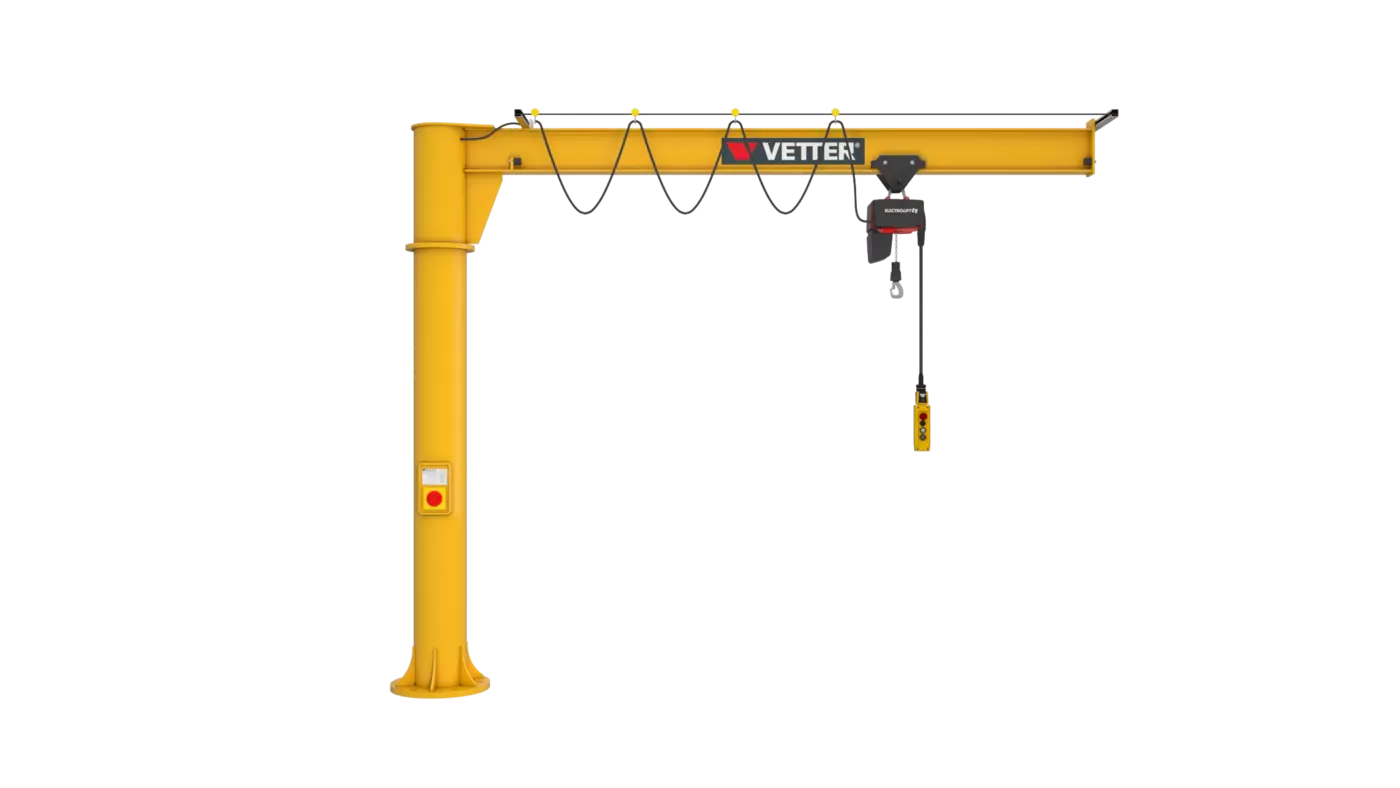

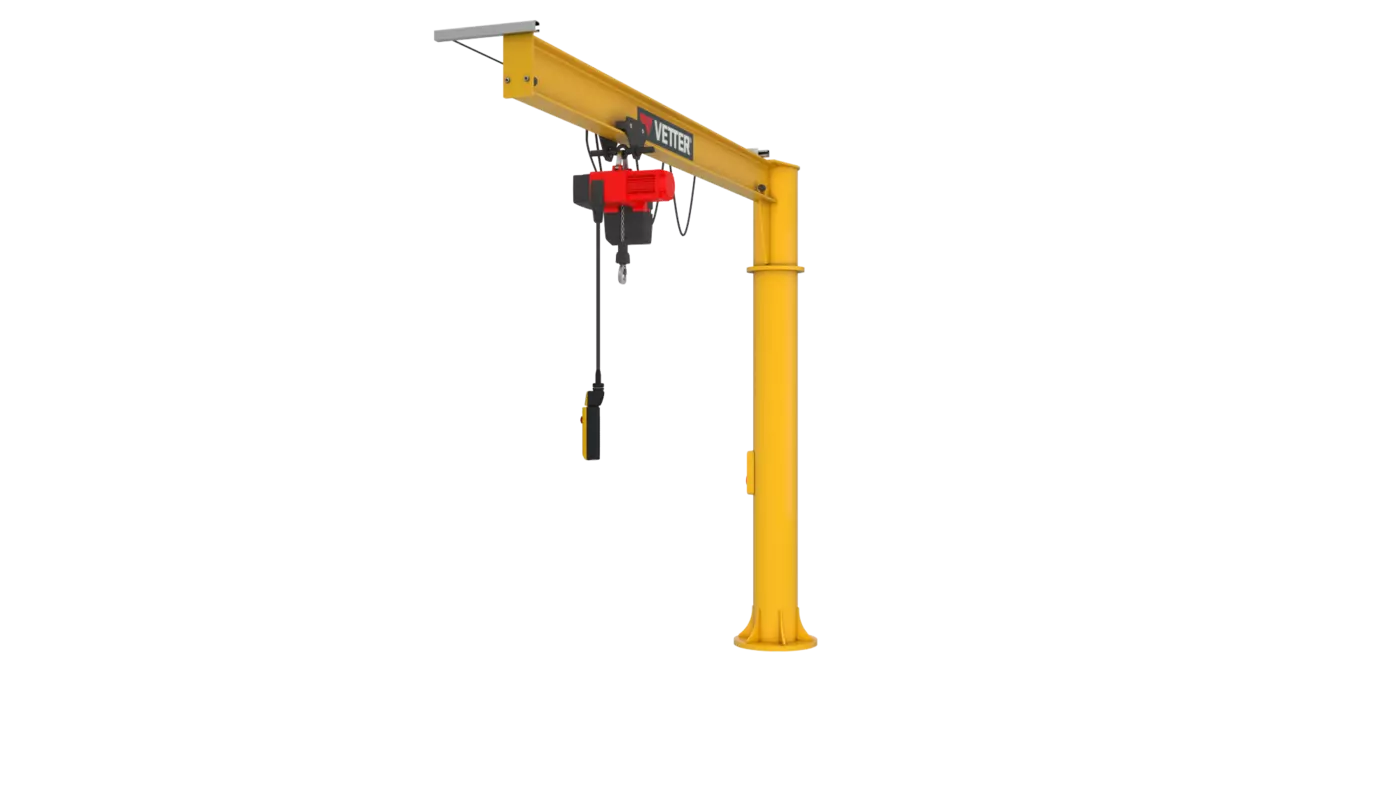

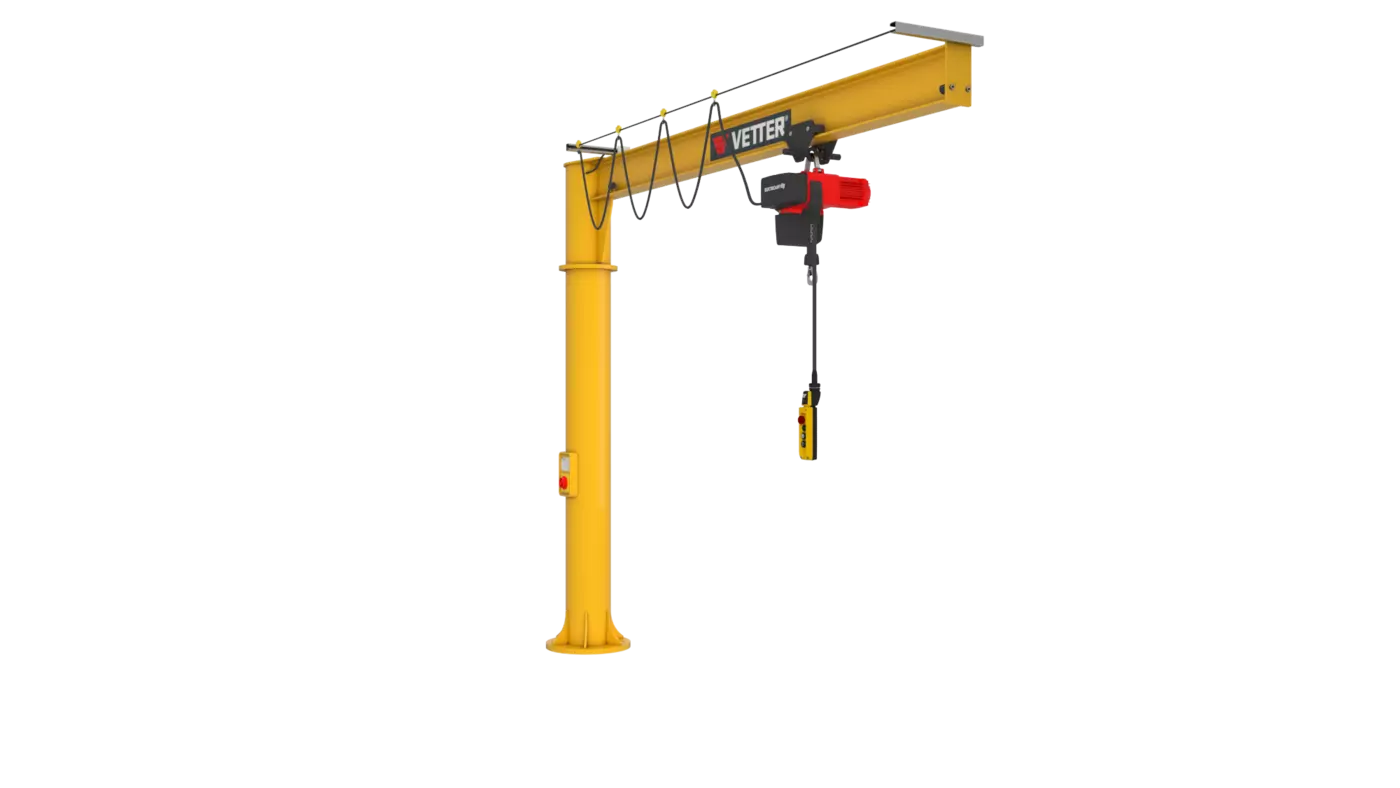

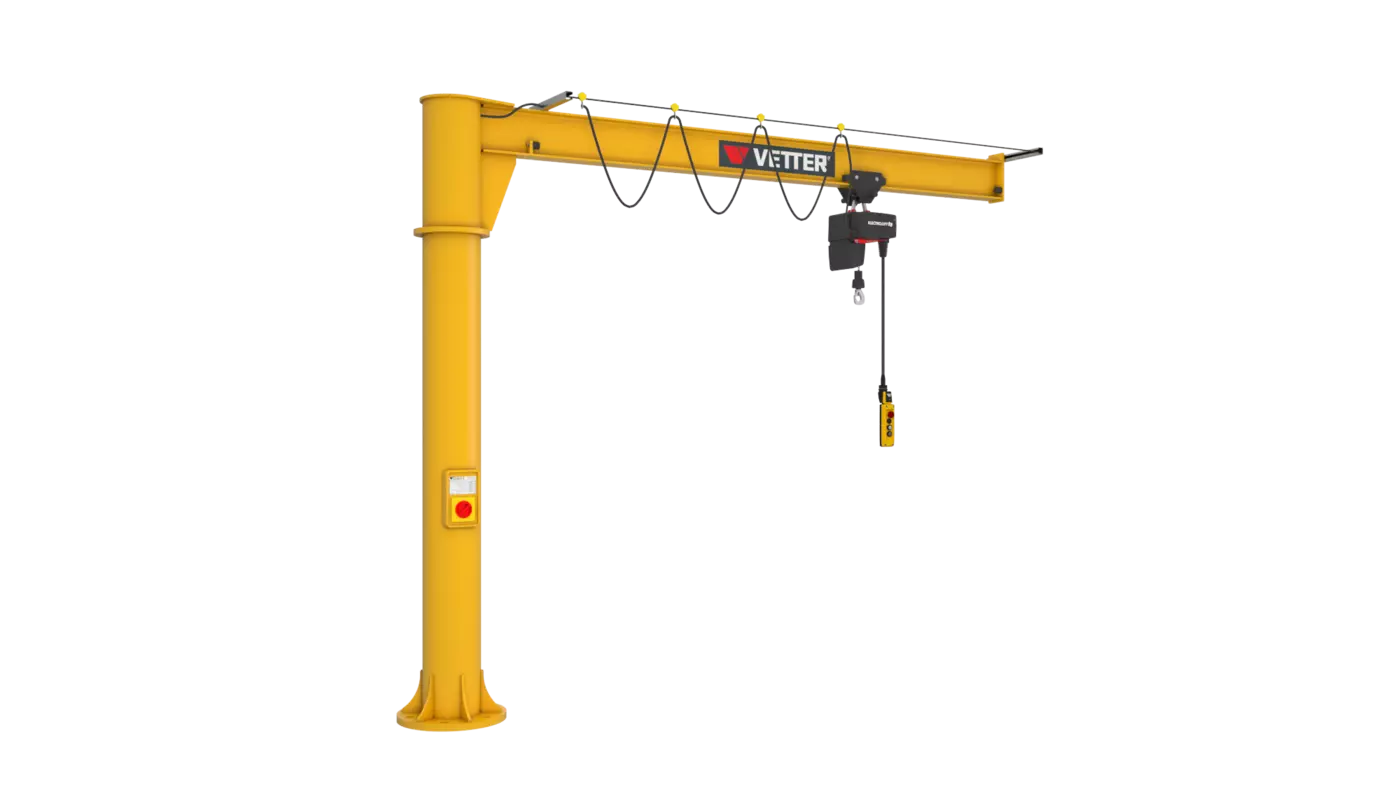

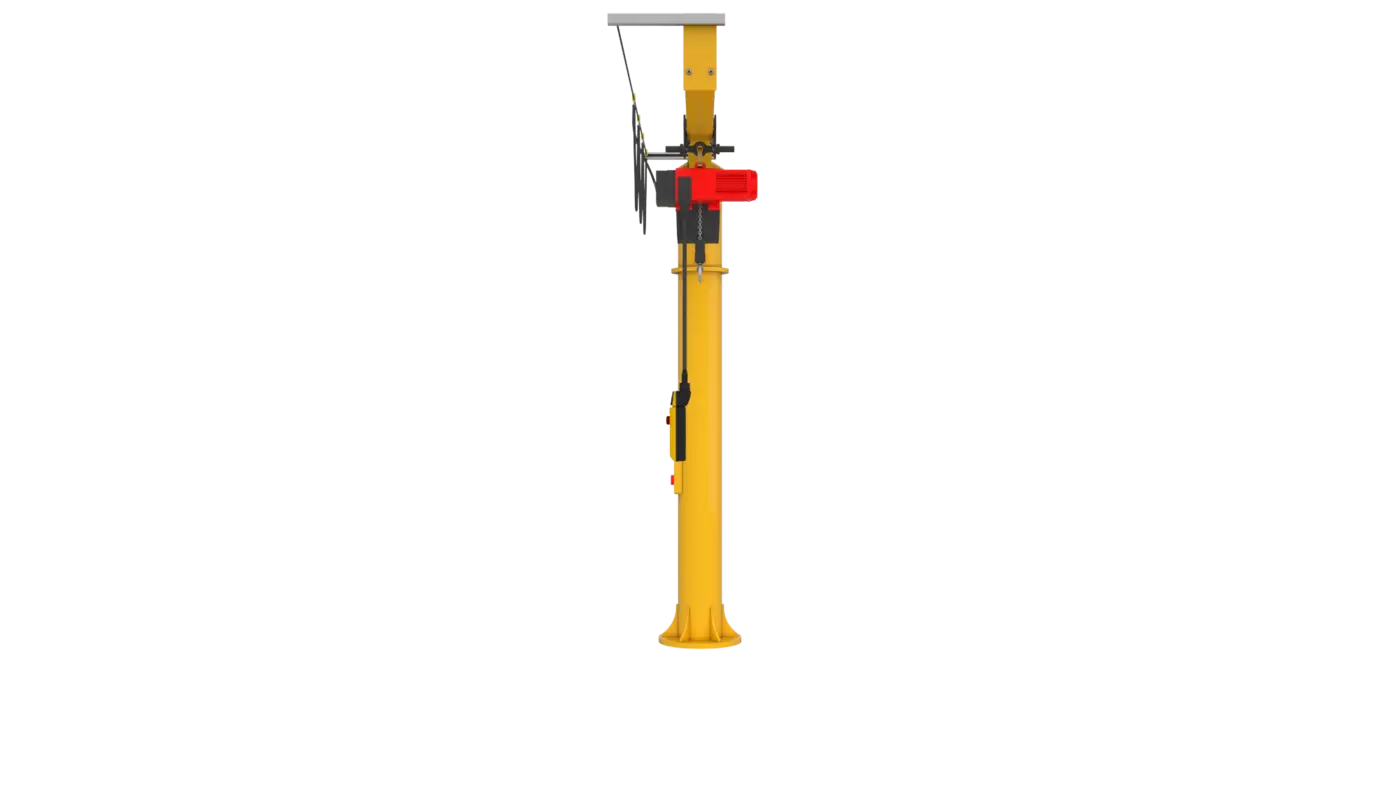

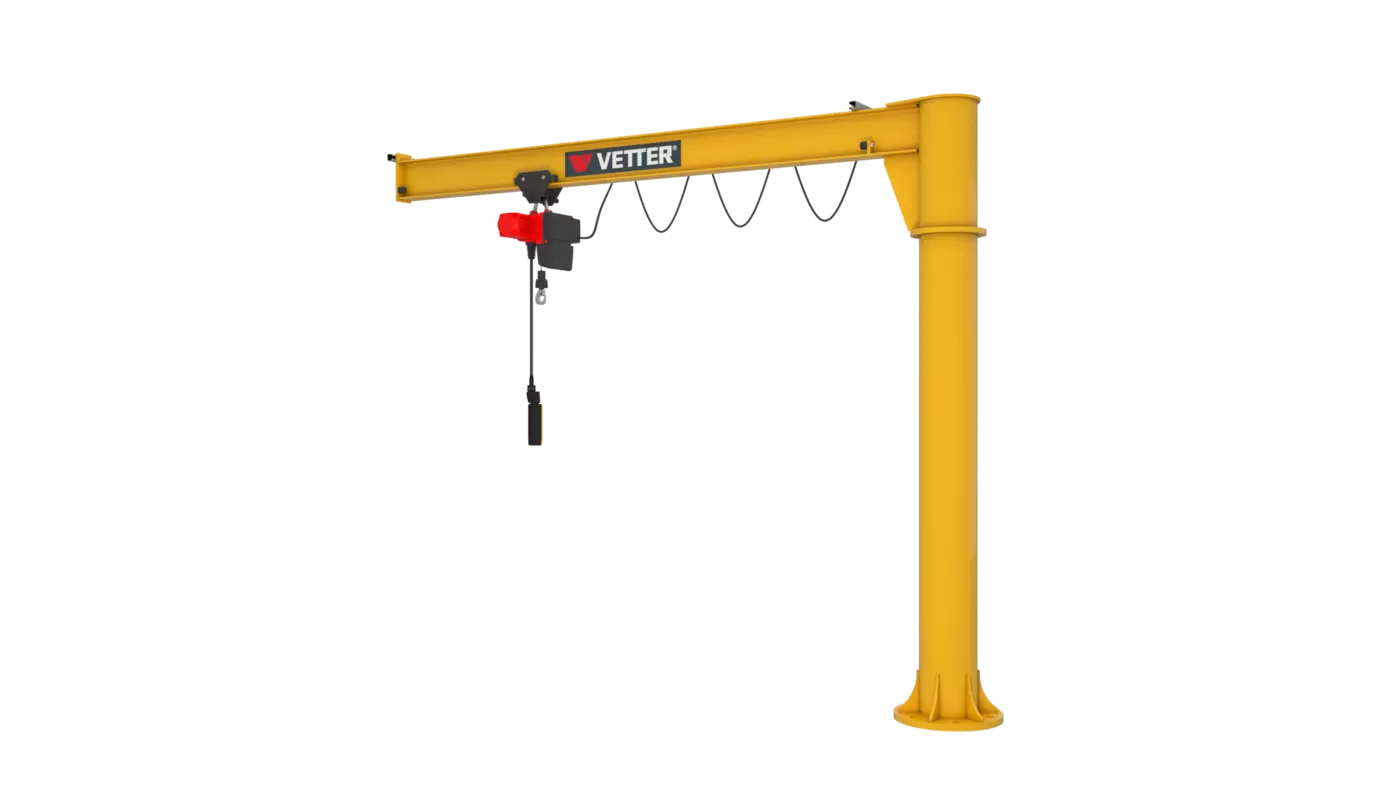

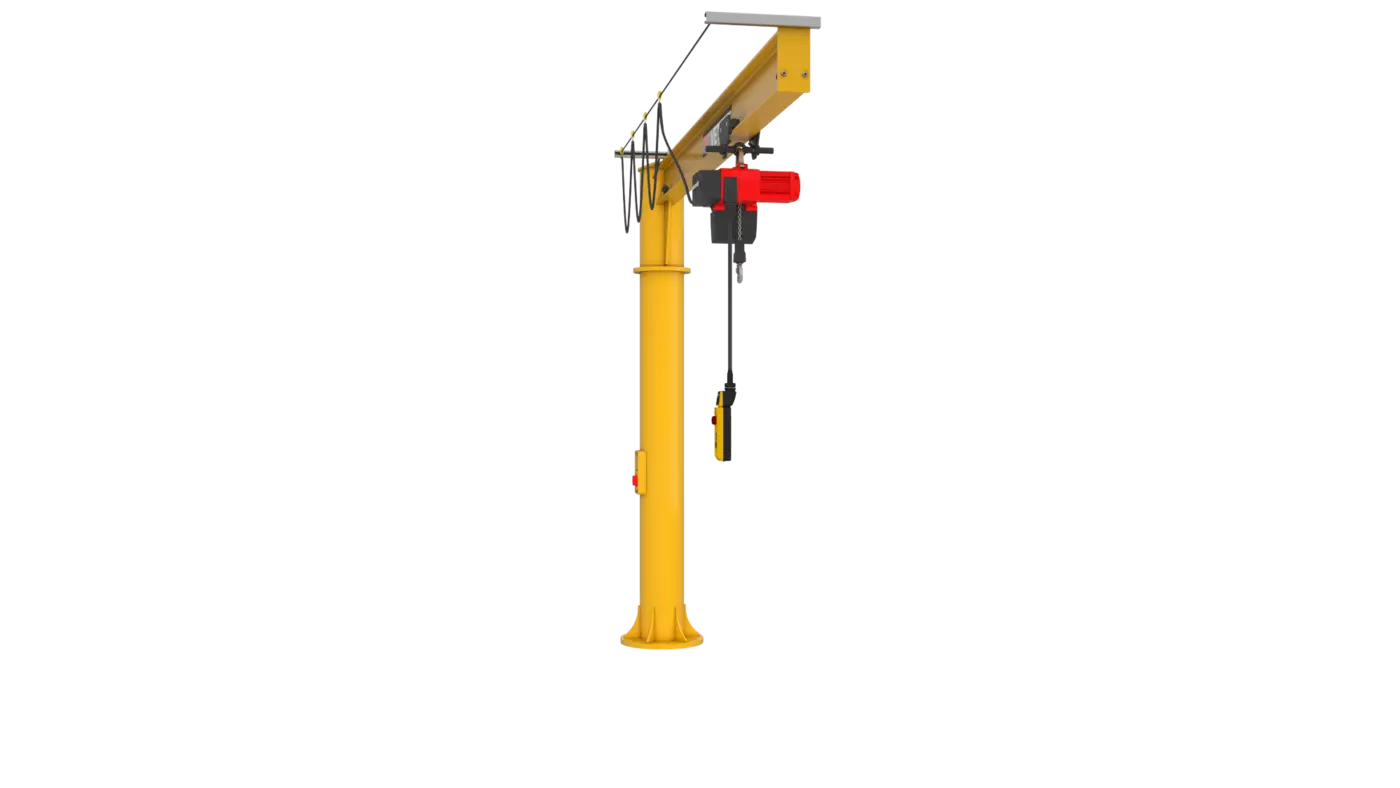

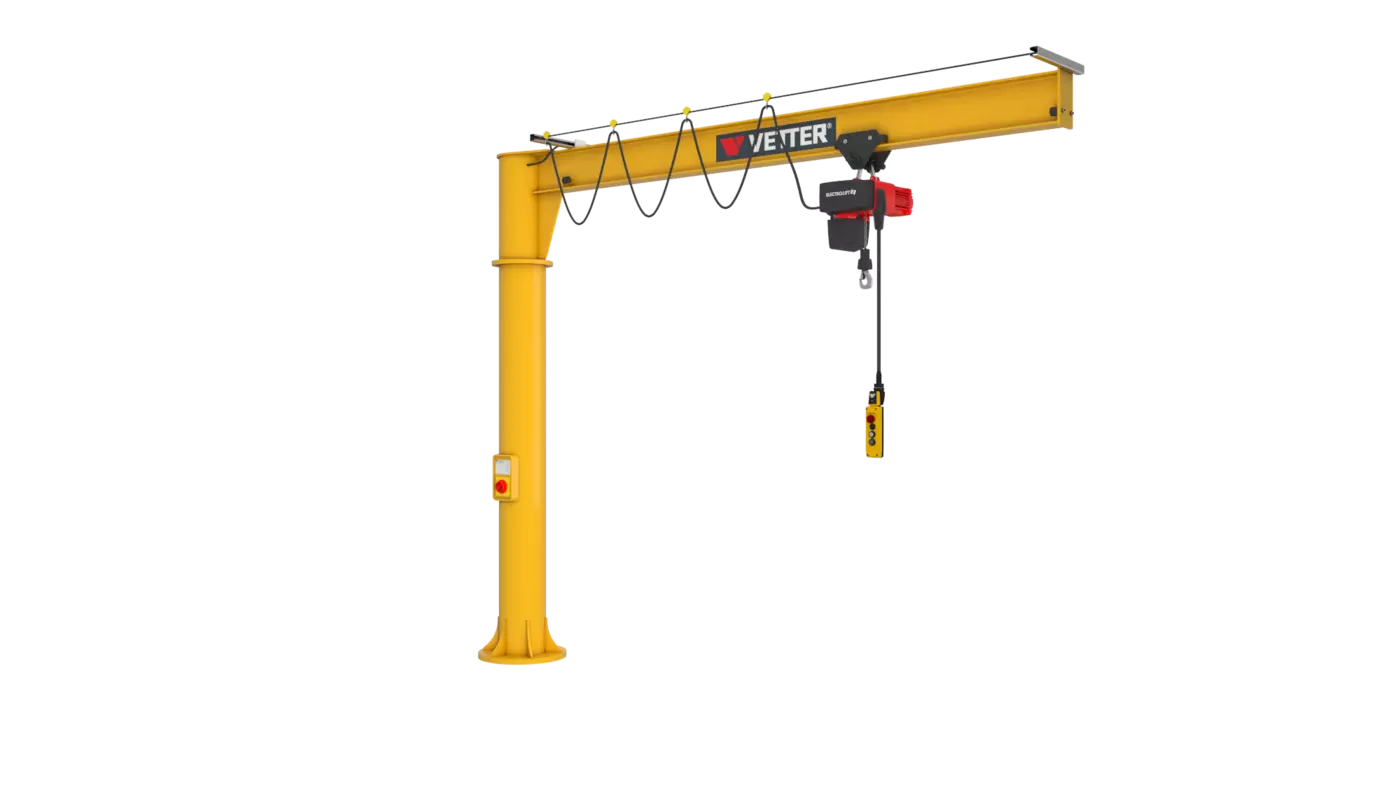

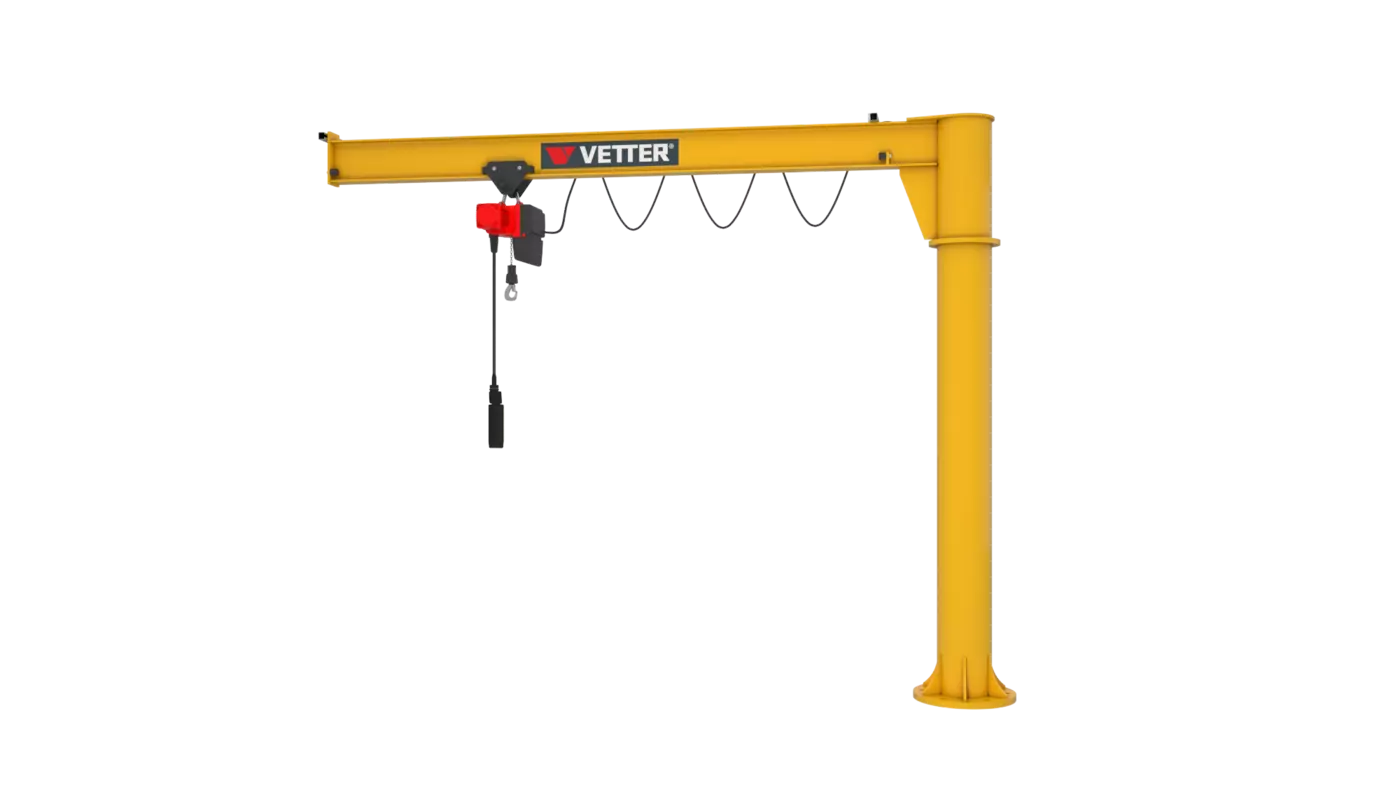

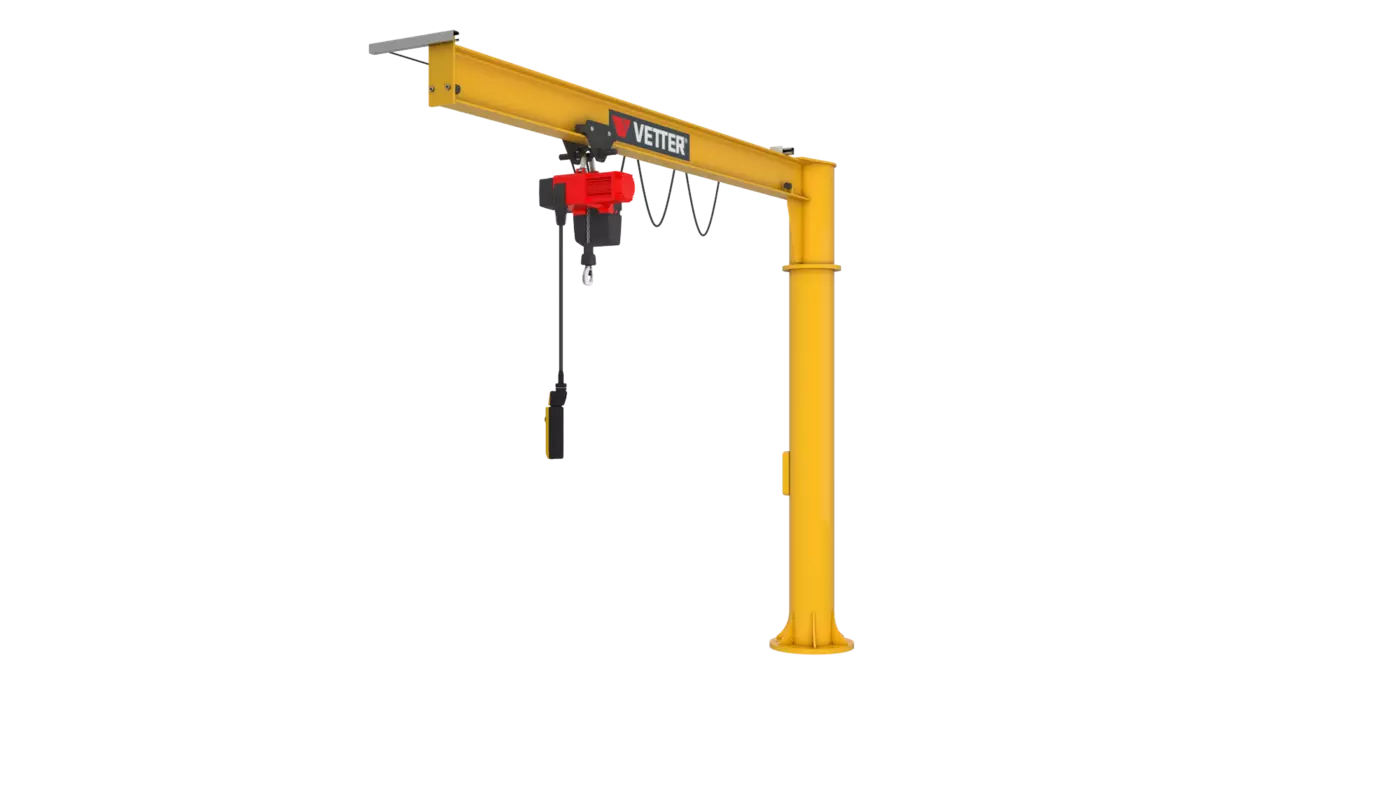

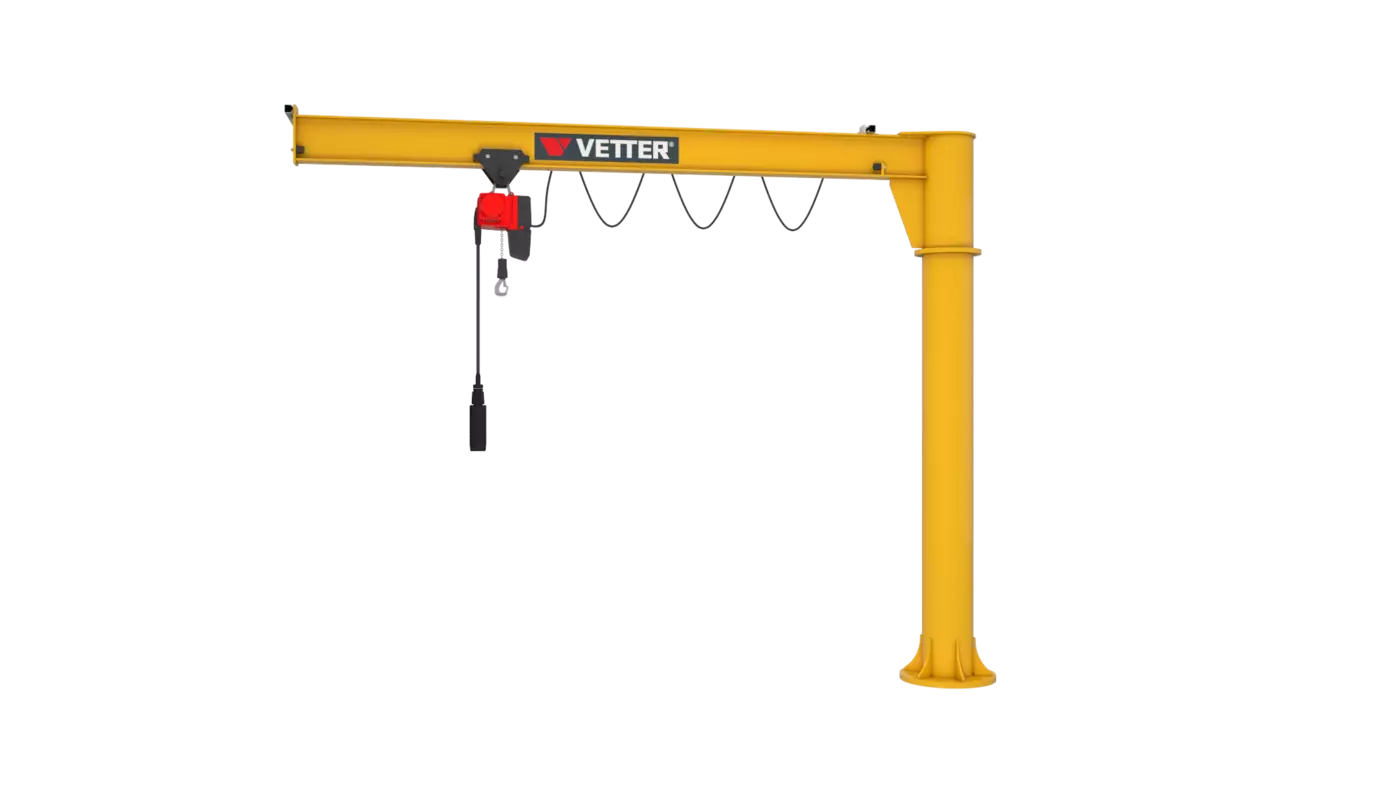

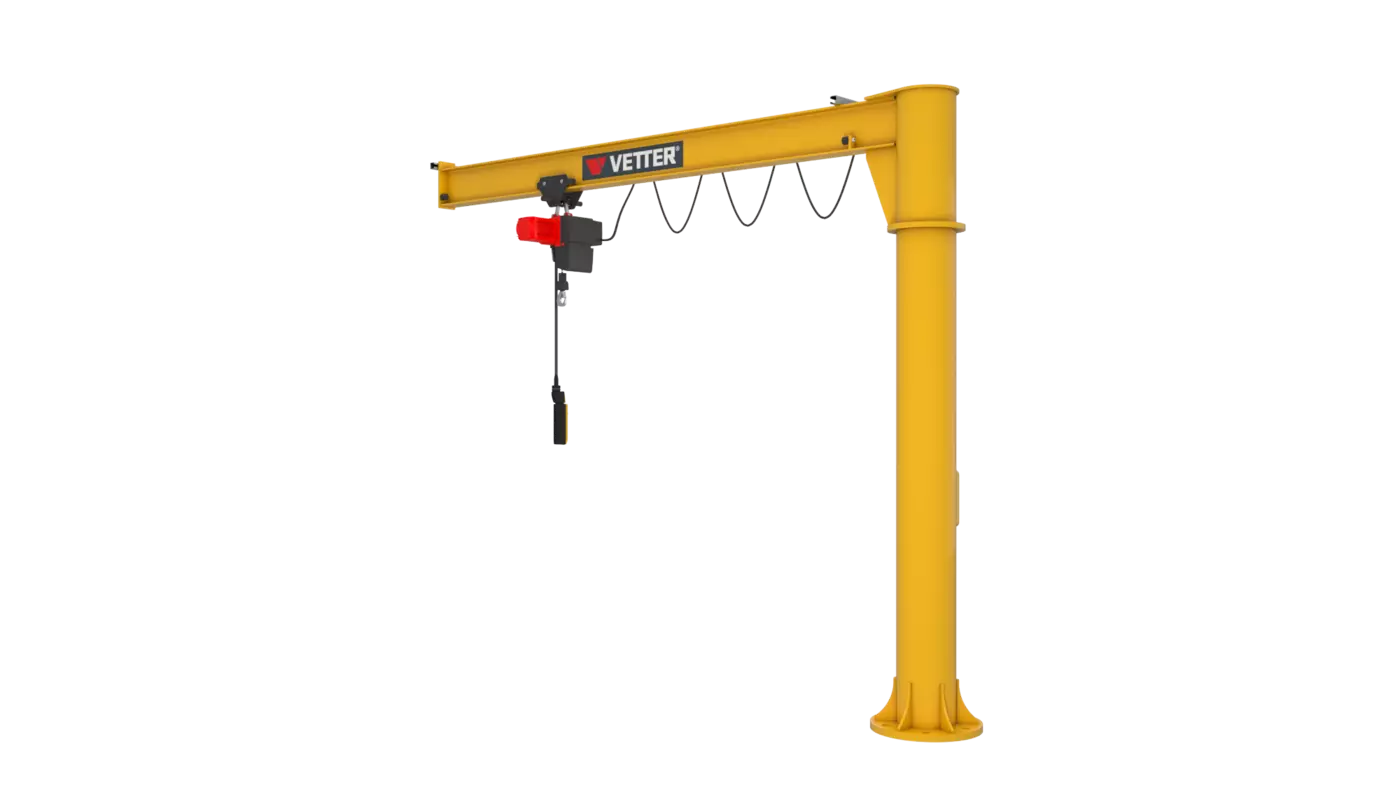

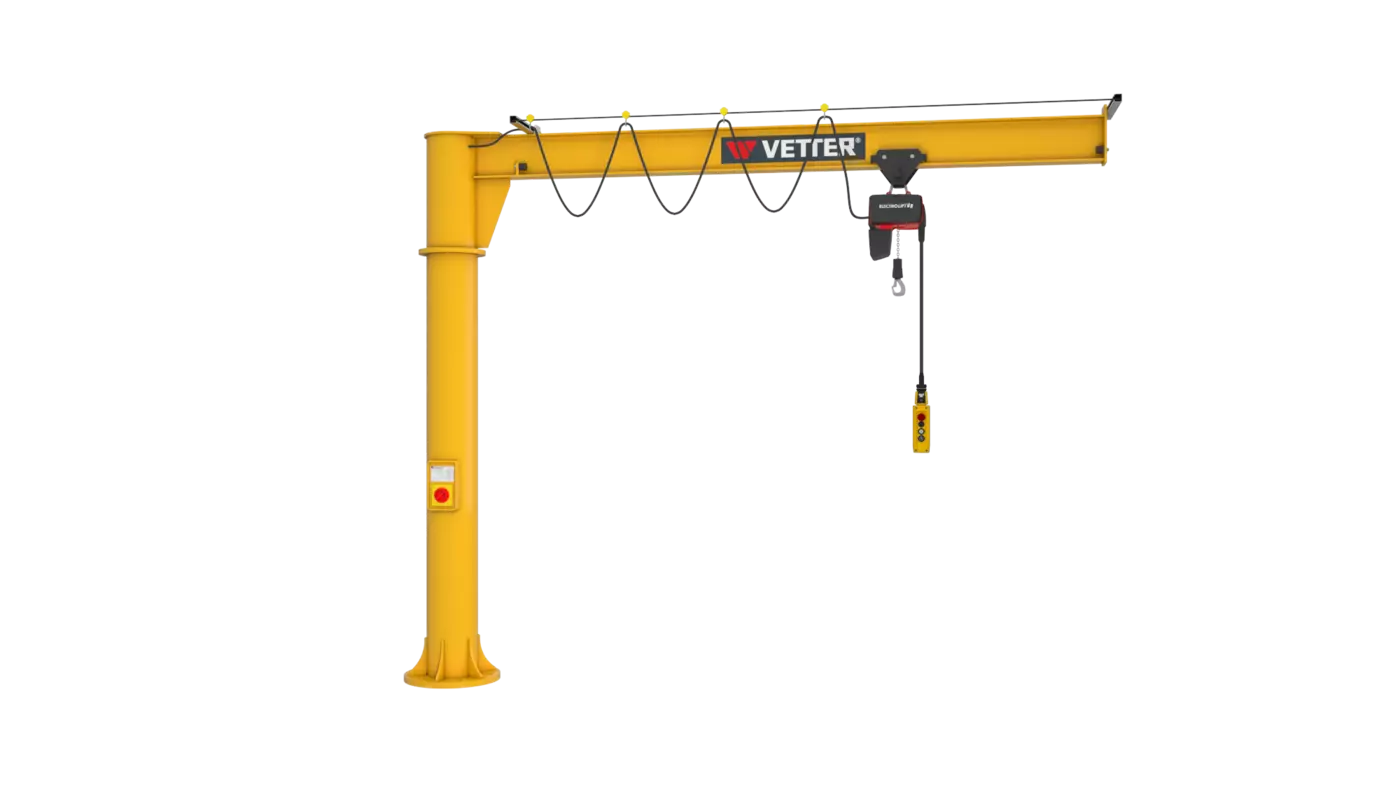

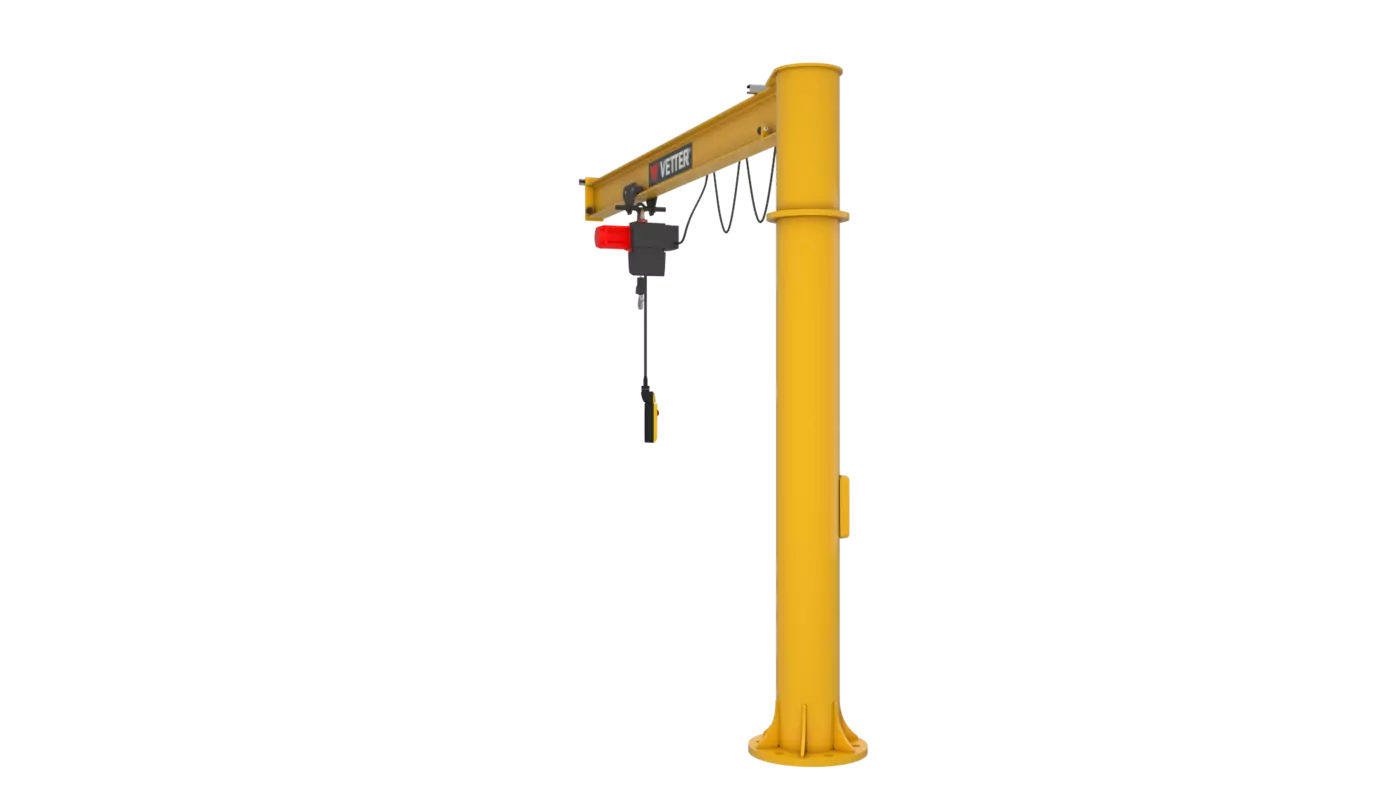

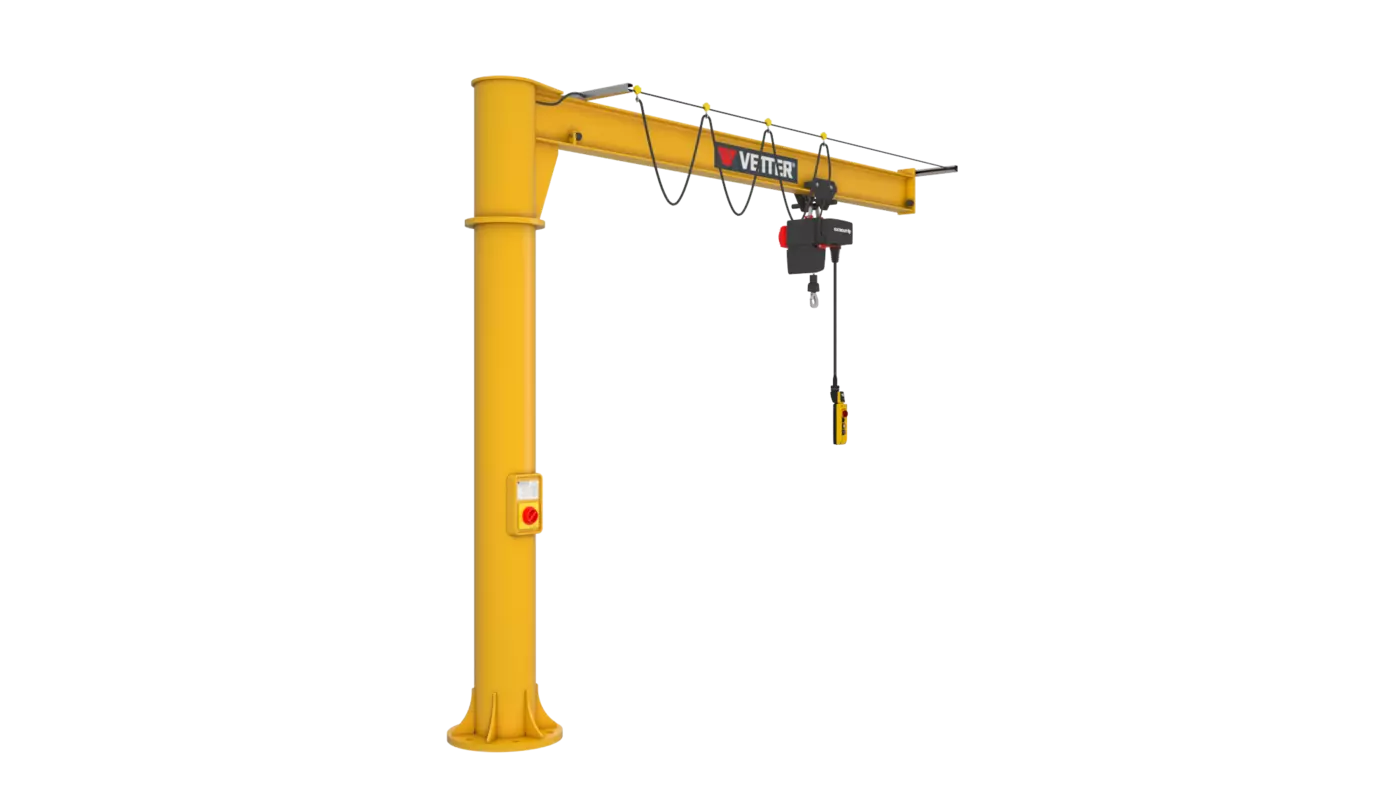

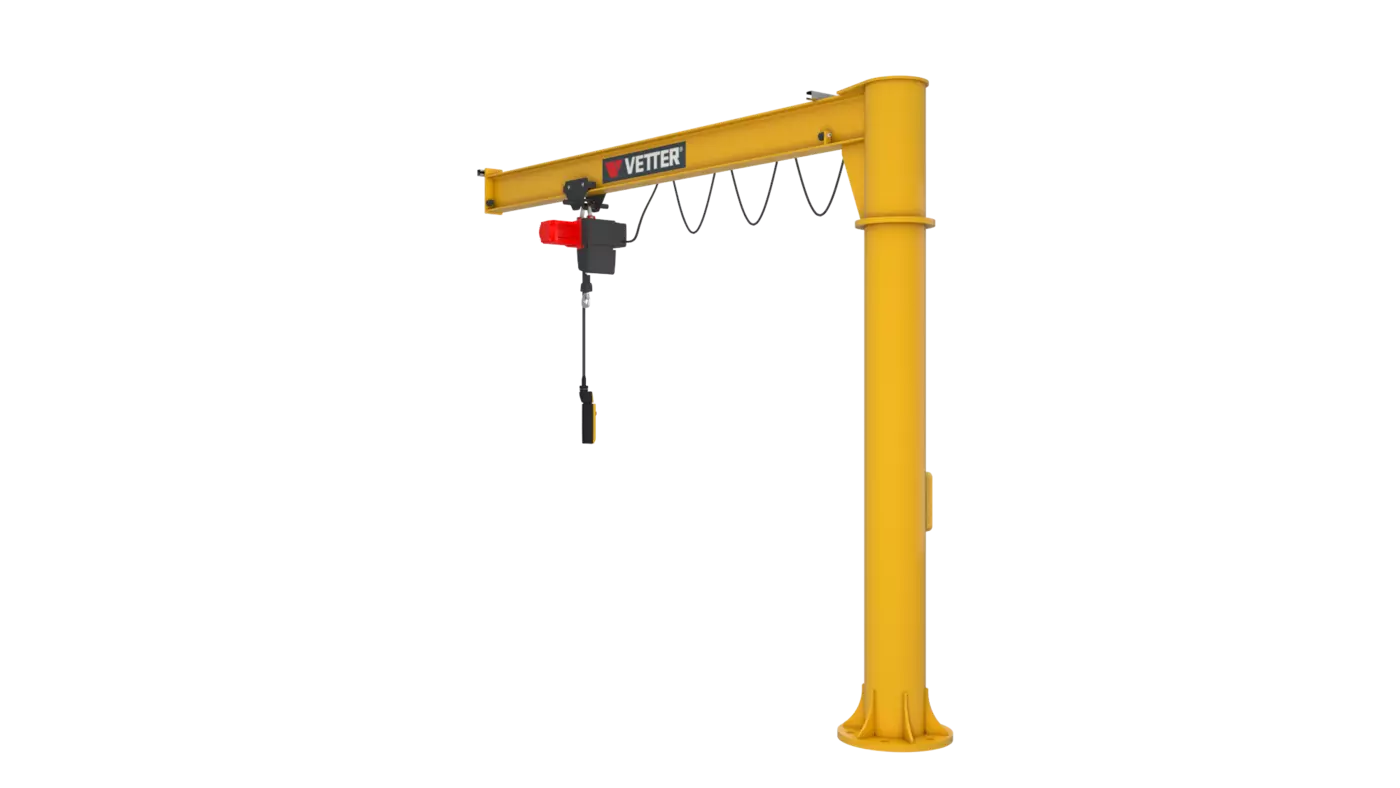

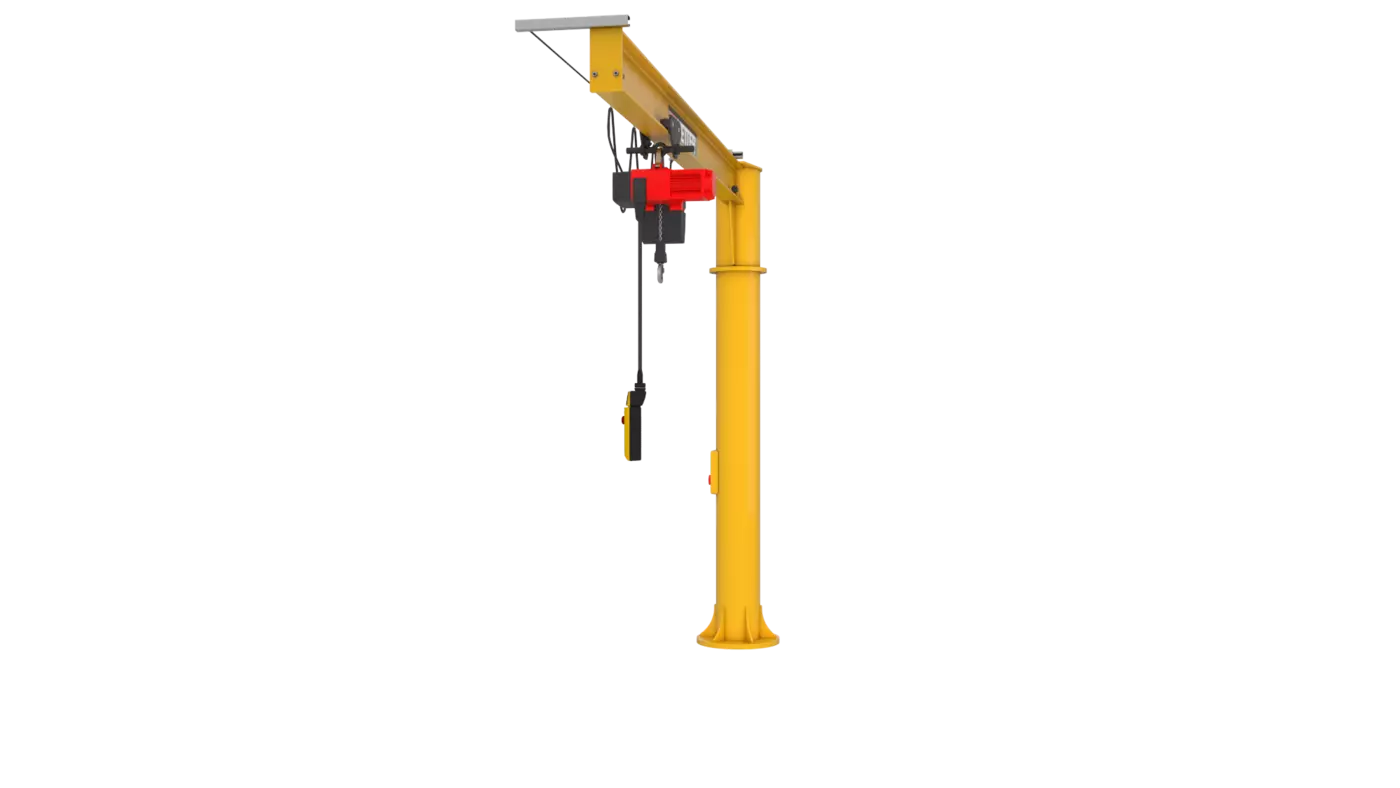

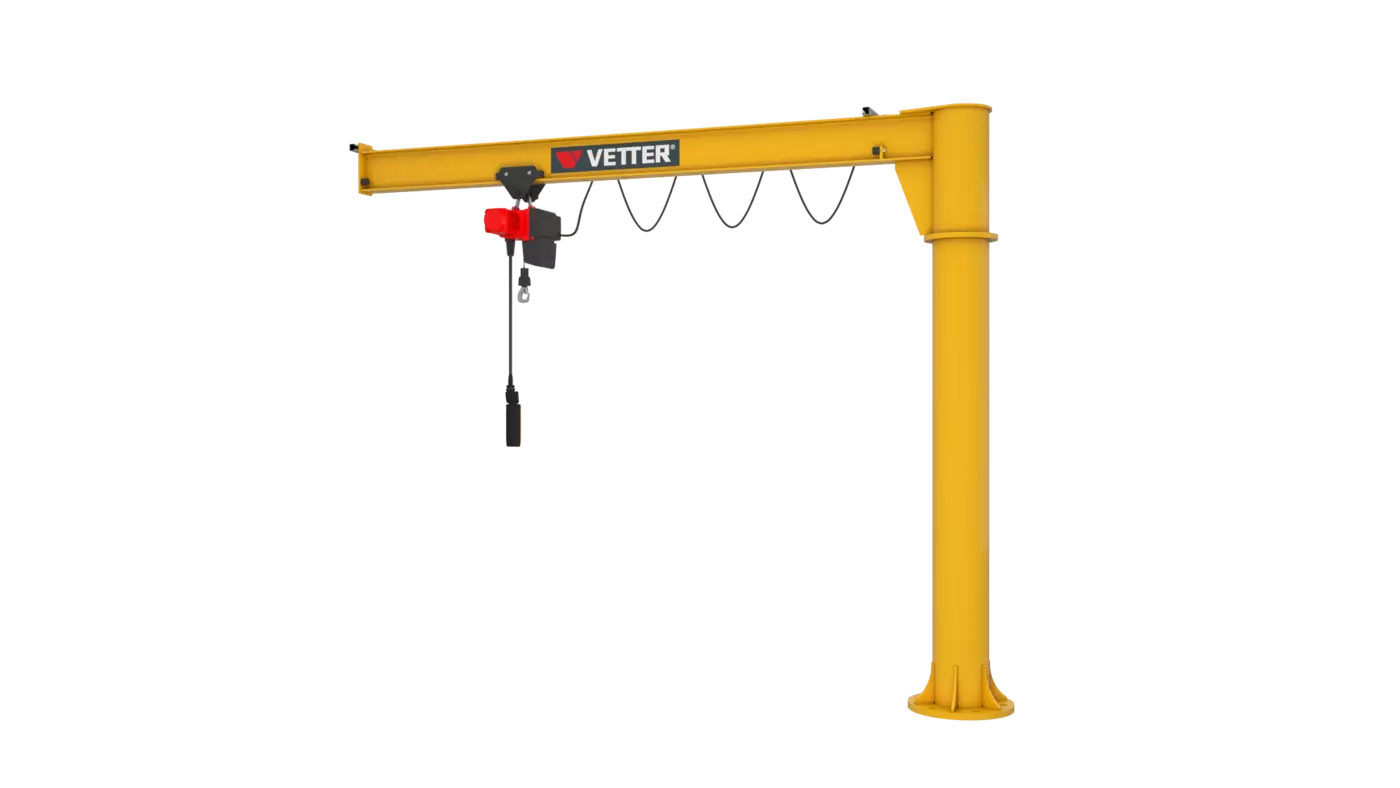

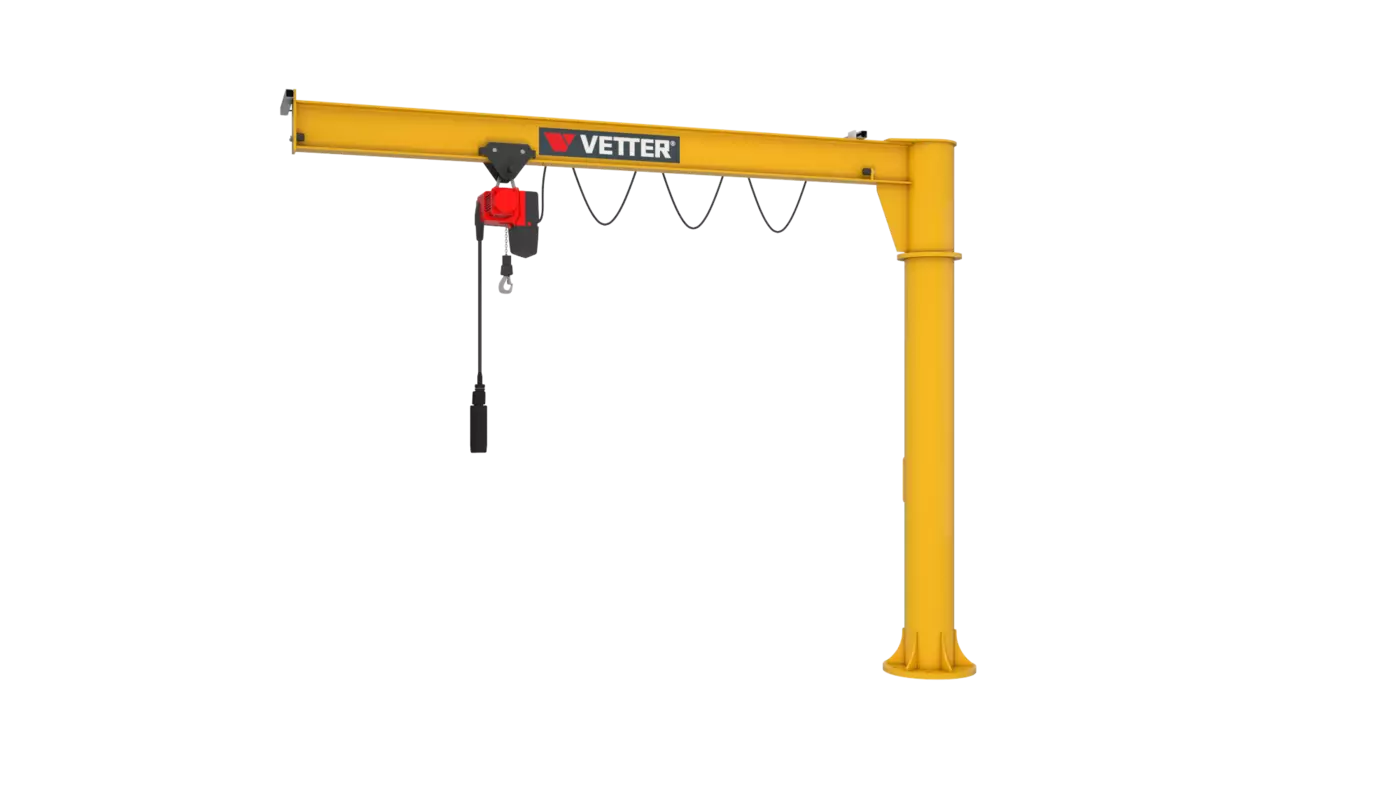

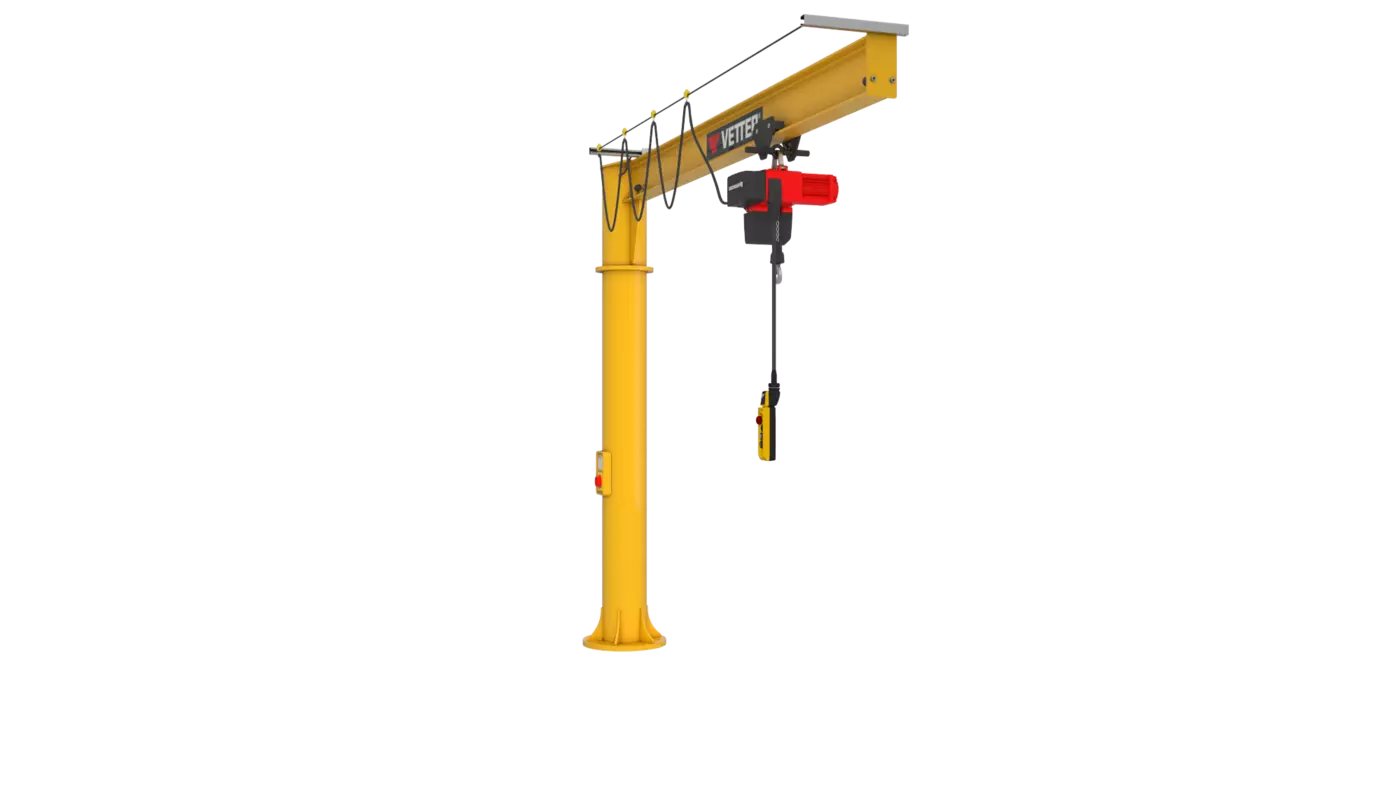

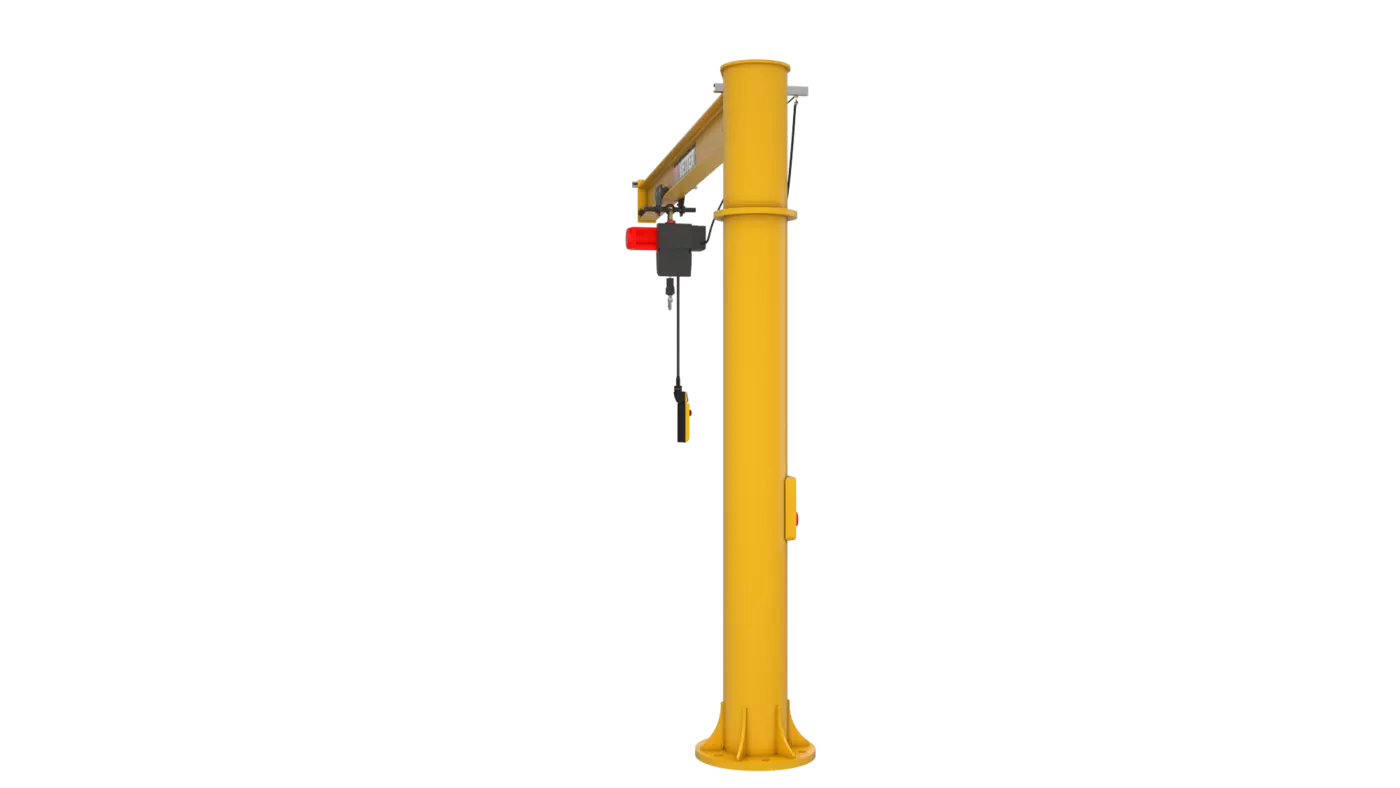

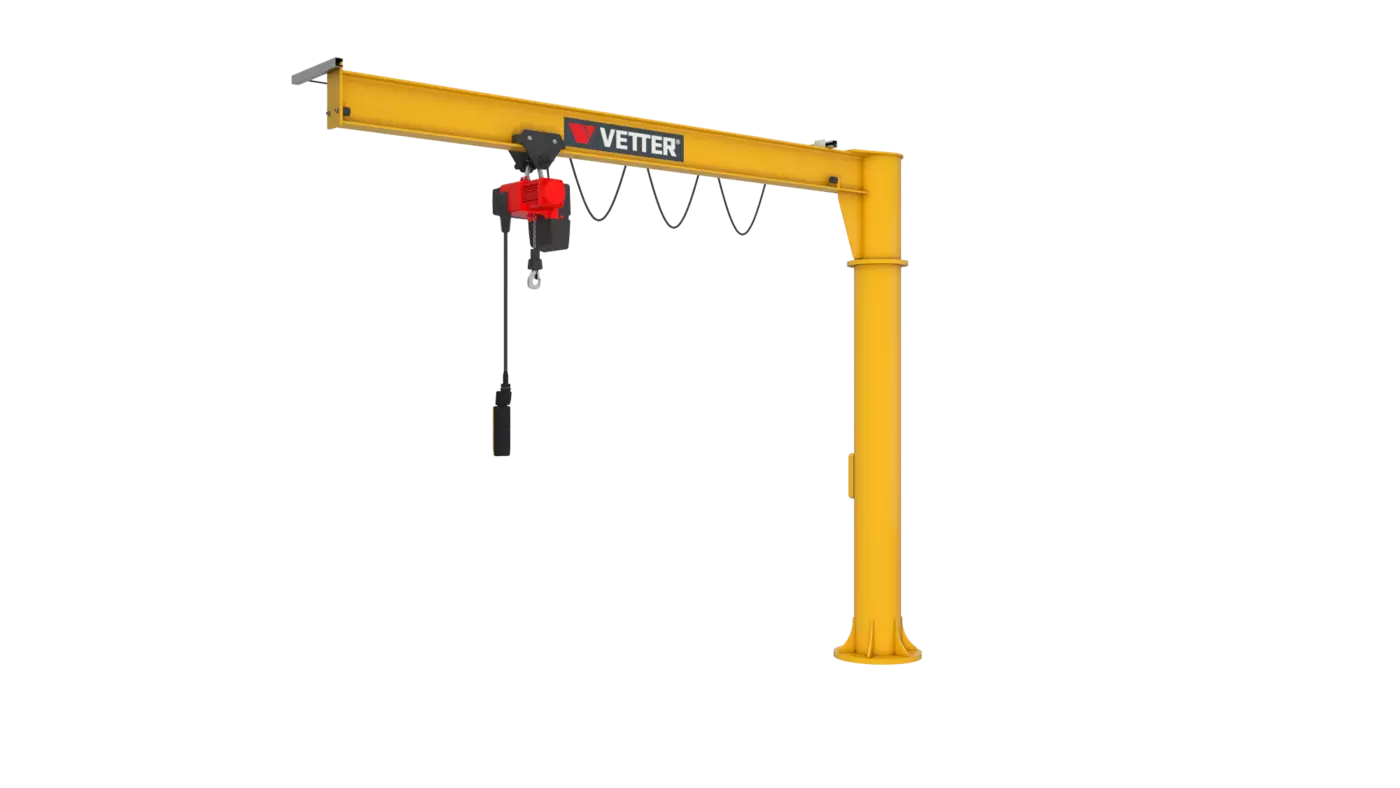

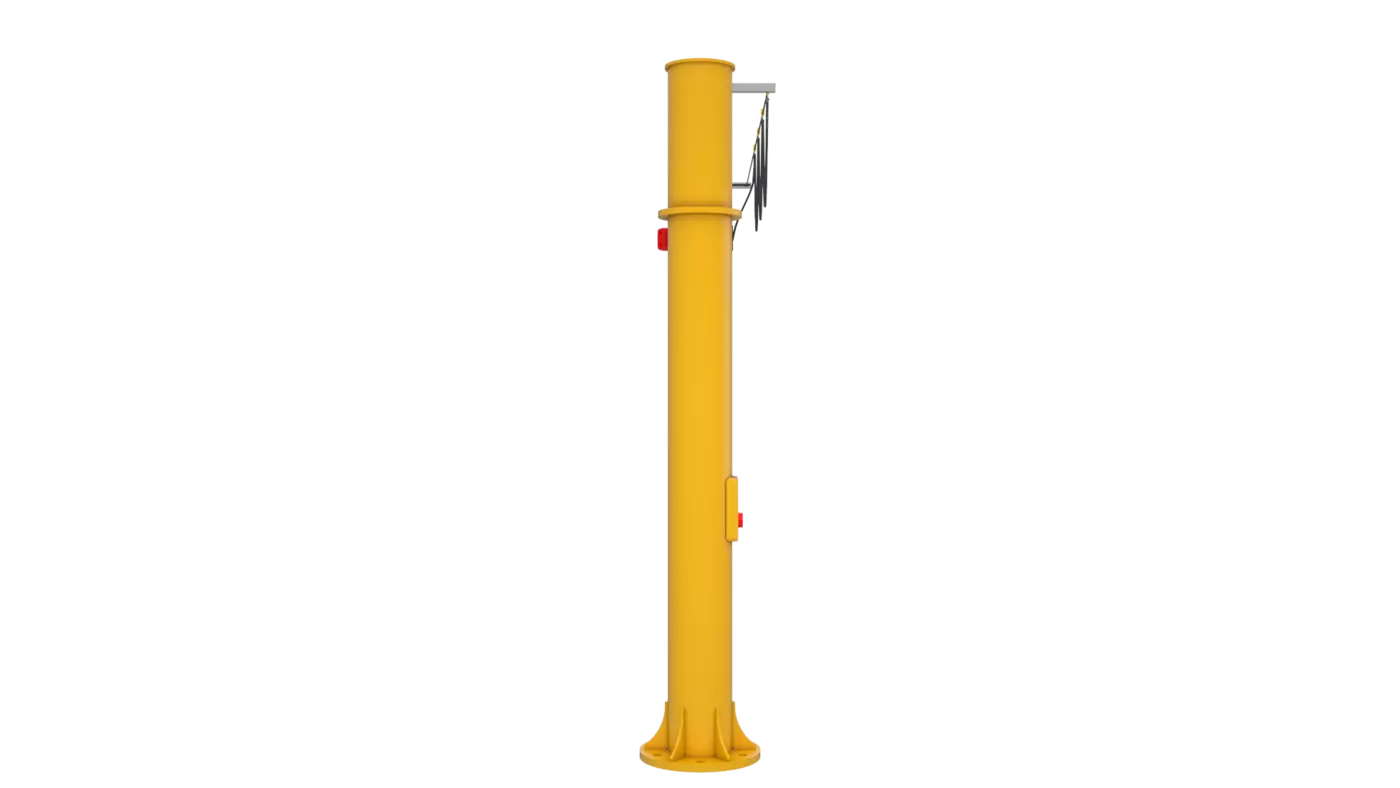

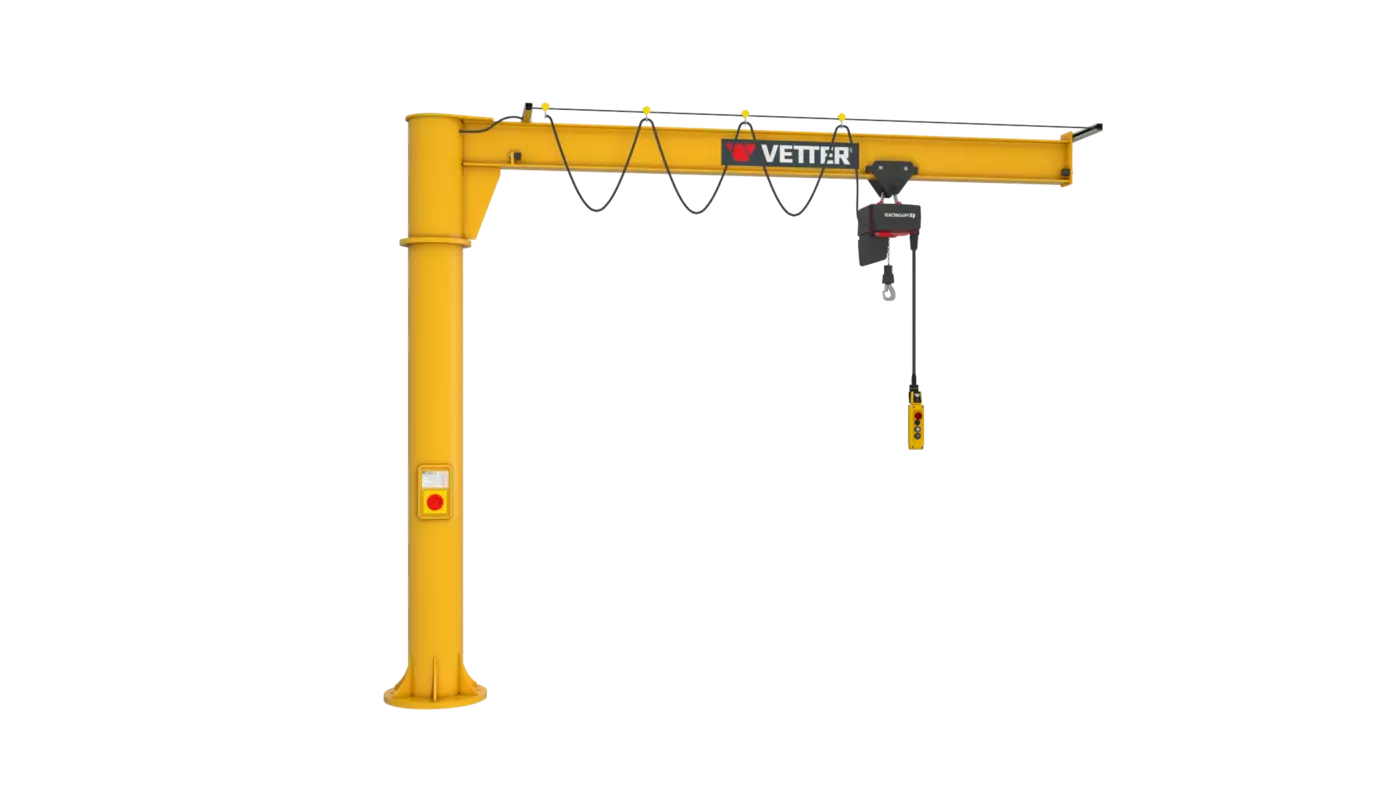

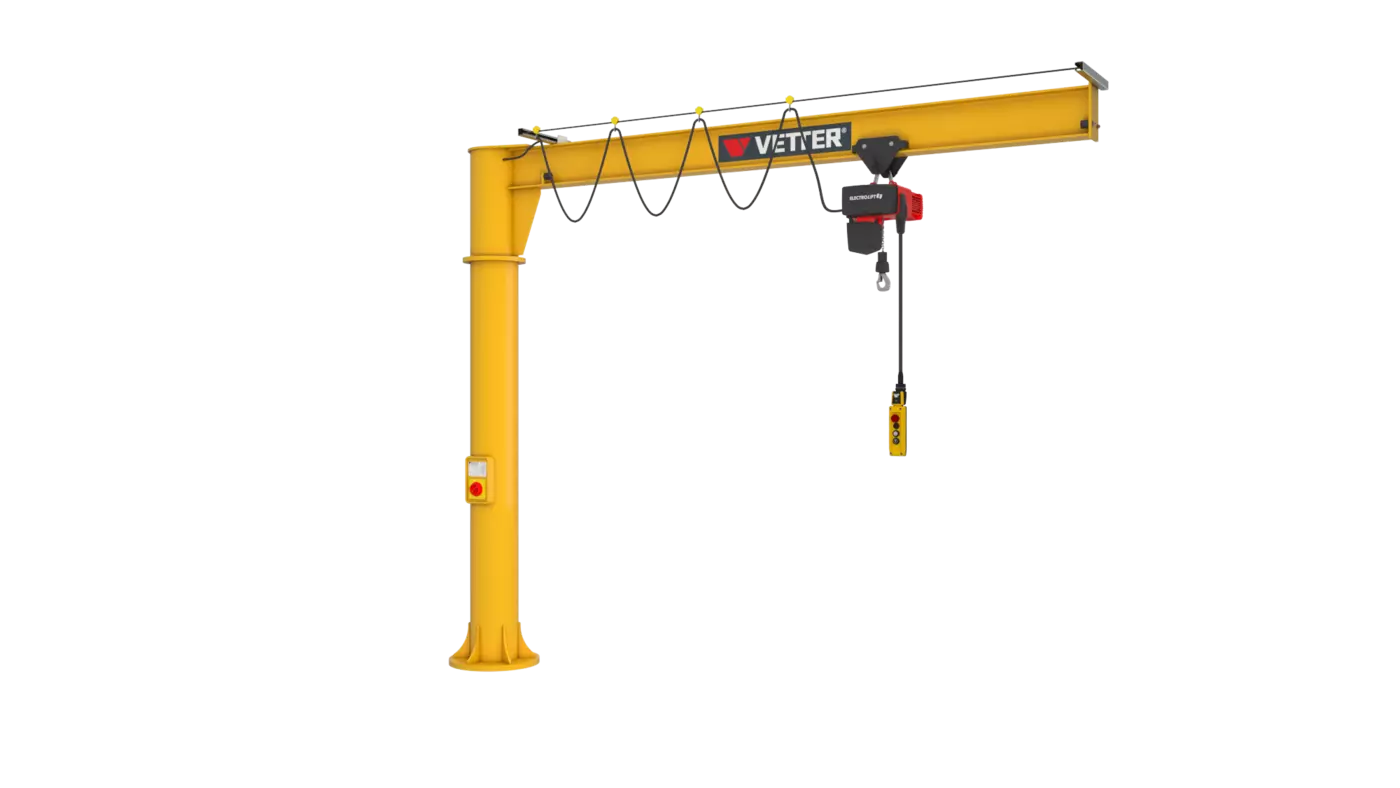

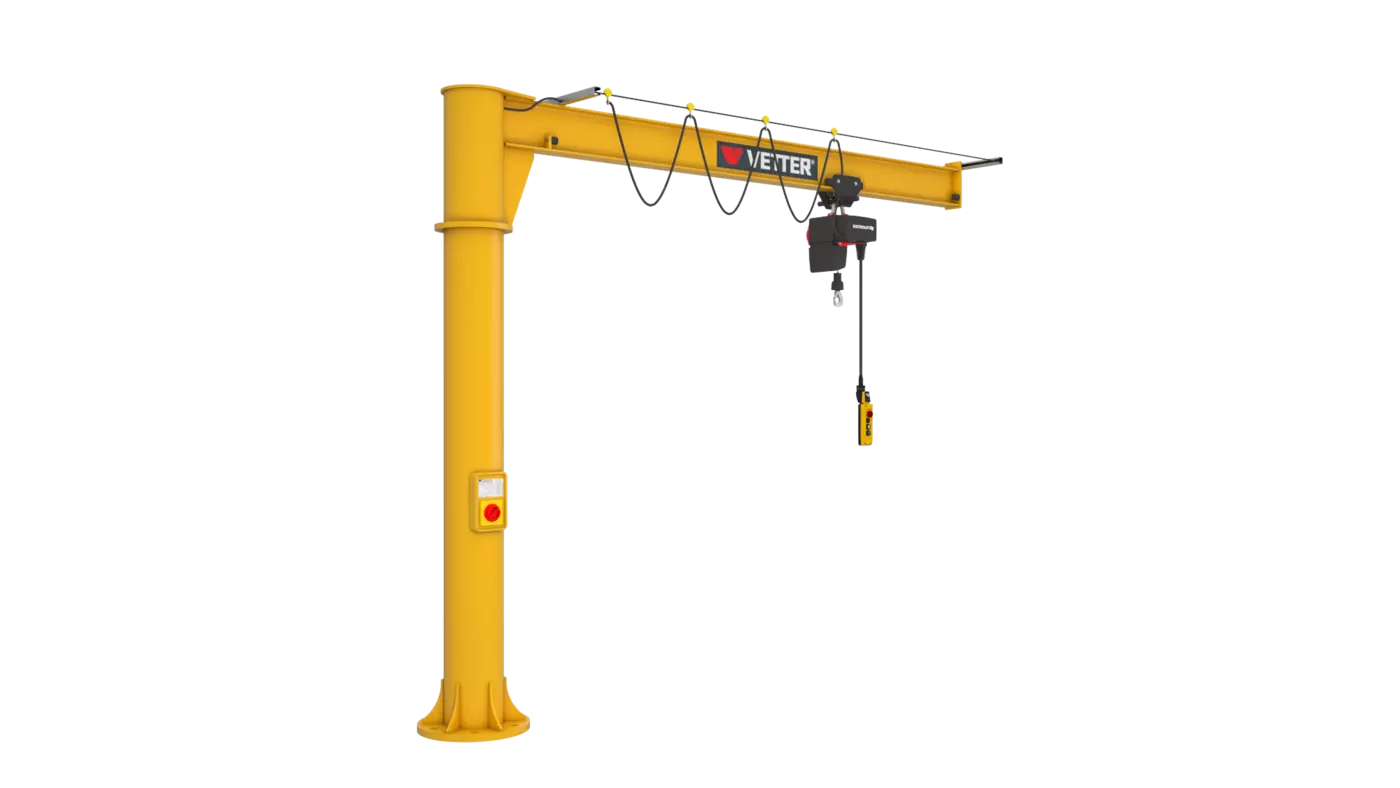

3D-Ansicht
Accessories
Fastening
Dowels on existing concrete floor
DowelPlate system VAS2
The round solution for doweling the slewing crane on existing concrete floor. No complicated foundation work is necessary.
Anchorage with anchors
AnchorFix
The classical anchorage with anchors, temolate and a set of nuts and washers. Delivery also comprises a detailed foundation plan with information about foundation size and required reinforcement.
Anchorage without screws jutting out
TopAnchor
The alternative anchorage without screws jutting out (no trip hazards). The foundation area is kept free and accessible until the final intallation of the crane. The crane can be put into operation immediately, because no grouting is needed.
Anchorage with optimum ease of installation
CompactAnchor
This anchorage offers th advantages of TopAnchor an is furthermore very easy to install. There is no need to mount separete parts on site. Positioning in the foundation pit is easy done by set screws.
Fastening to steel structure or machine
Base flange, flush
Base flange, flush or plane machined surface, designed to attach the crane to a steel structure or machine. Fastening screws to be provided by the customer.
Power lead
Round cable
Power lead by cable loop, consisting of round cable and cable supporting tube to be mounted on the jib arm. Pendant control fixed to the hoist. Suitable for an outreach up to 3-5m (Depends on the jib clearance of the jib arm).
Round cable trailing system
Favourable power supply, consisting of round cable, cable trolleys, tensioning rope and suspension arms to fix the supply to the jib arm. Pendant control fixed to the hoist. Recommended for outreachs from 3-10 m (Depends on the jib clearance of the jib arm).
Other
Slewing limitation
Mechanical slewing limitation, weldable or screwable according to the conditions on site, to limit the slewing range to the right / left side.
Surface finish
Paint system for indoor use
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 80 µm.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
