Monorail gantry crane
P100
Product highlights
- Point-to-point load transport
- Compact design, perfectly suited for small rooms
- Large effective lifting height
- Support height and crane rail length can be adjusted to conditions on the spot
- Outdoor use possible
- Easy to install thanks to dowelling on concrete floor (optional)

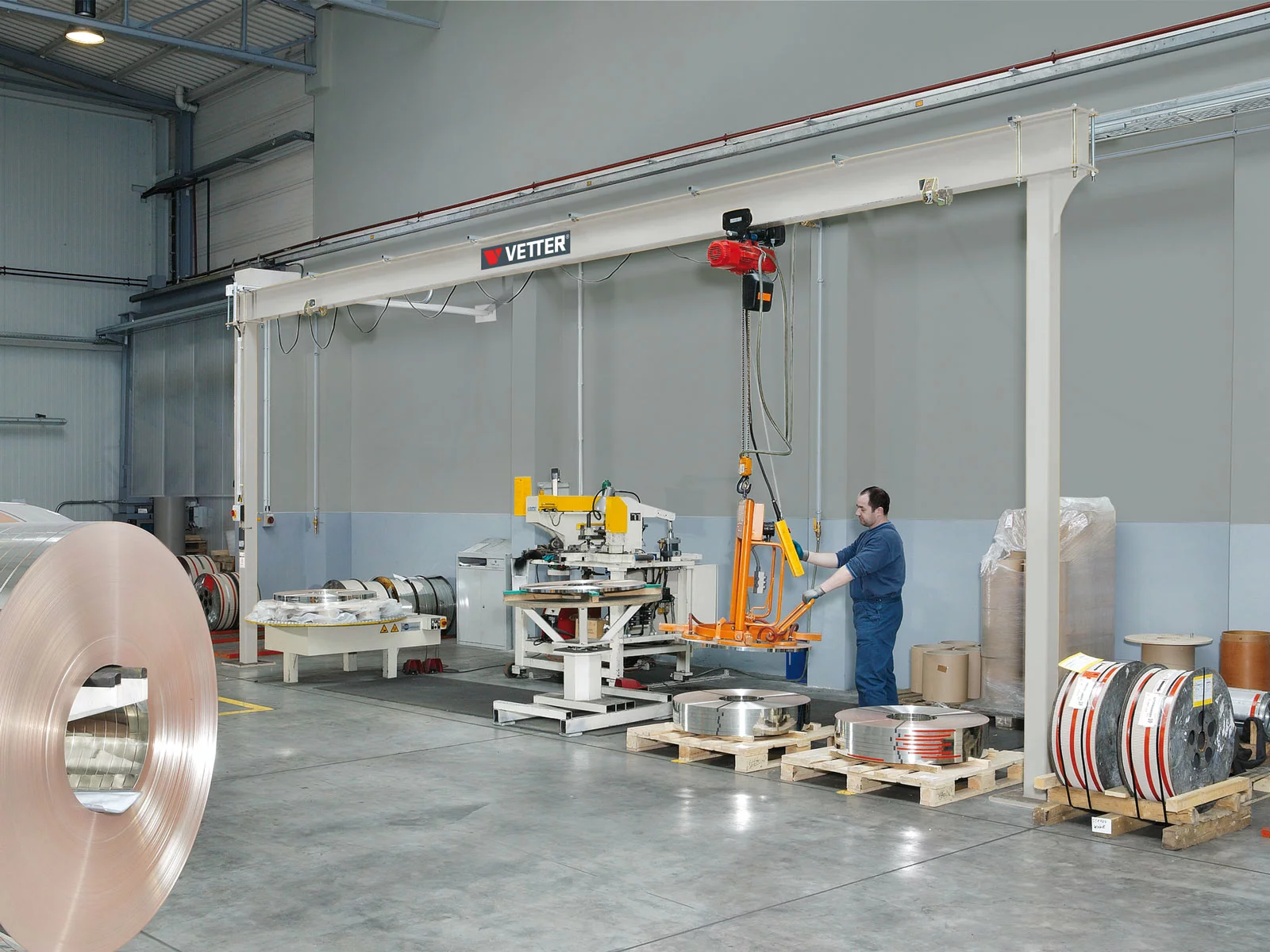

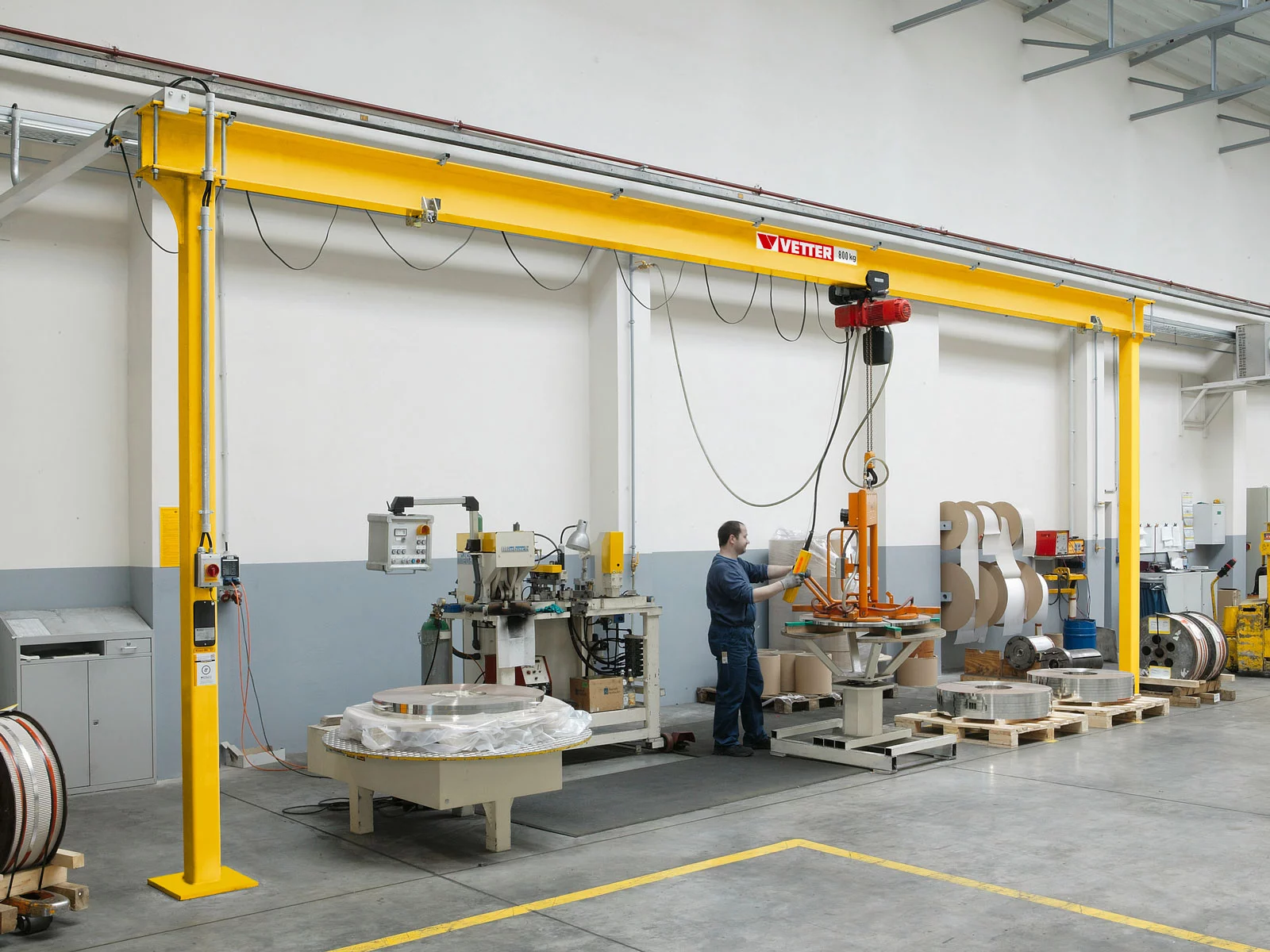

The fixed gantry crane
Type P100The monorail gantry crane P100 is the perfect choice when it is about transporting a load along a specified line.
Using the P100, you are able to lift and transport maximum loads of 4,000 kg effortlessly, e.g. for stock rotation, linking two processing machines with one another, or as a crane system behind a roll-up door for loading and unloading operations.
Due to its compact design, the monorail gantry crane features a maximum lifting height and is ideally suited for subsequent installation in small and narrow operating rooms. The gantry crane P100 perfectly meets your requirements for indoor and outdoor use since its support height and crane rail length can be adjusted individually.
Regarding fastening options, you can make your individual choice from comfortable dowelling on concrete floor or fastening on foundation using anchors.
Moreover, we offer a suitable power supply, electric chain hoists ELECTROLIFT® with electric trolley, radio remote control as well as various other accessories.
This type of gantry crane is also available with variable maximum crane rail length (gantry crane P200).

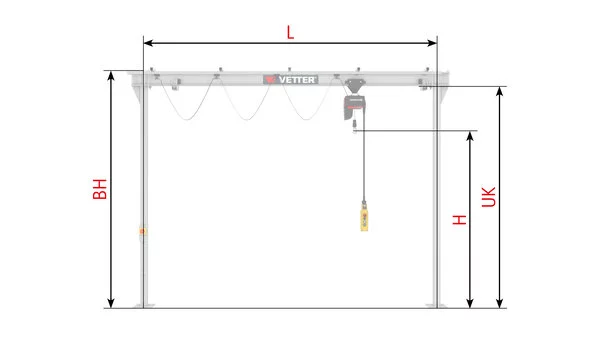

Technical data
| Capacity: | 500 - 4000 kg |
| Length: | 2000 - 10 000 mm |
| Jib clearance: | 2500 - 4500 mm |
| Total height: | 2750 - 4700 mm |
| EN 15011 Hoisting class: | HC2 |
| EN 15011 Stability class: | S2 |
| Hoist: | Chain hoist |
| Trolley drive: | By hand / Electrical |
| Installation location: | Indoor / Outdoor |
Length [m]
Capacity [kg]
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
|---|---|---|---|---|---|---|---|---|---|
| 500 | |||||||||
| 800 | |||||||||
| 1000 | |||||||||
| 1600 | |||||||||
| 2000 | |||||||||
| 3200 | |||||||||
| 4000 |

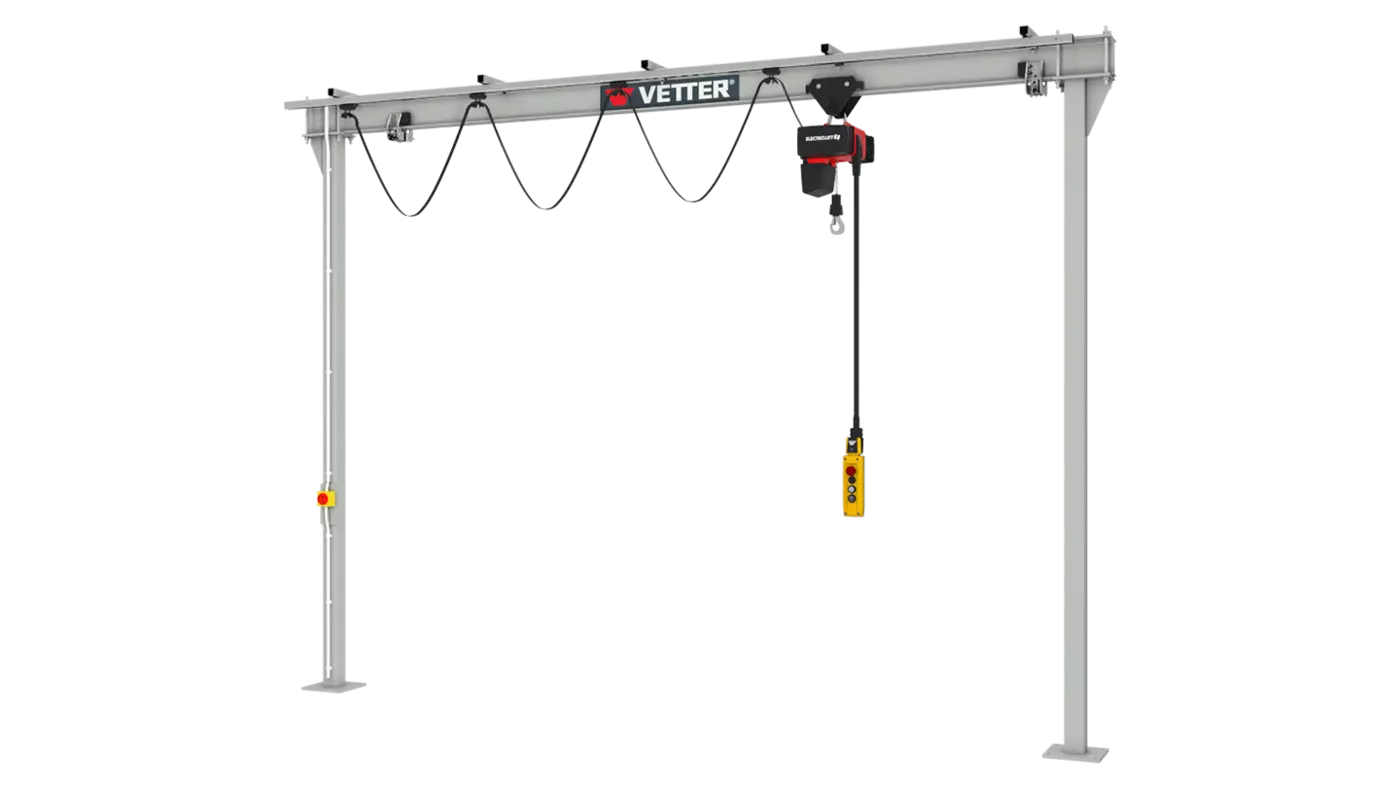

3D-Ansicht
