Wall-mounted slewing jib crane
Type AW
Product highlights
- Comfortable and smooth slewing possible by means of electrical slewing gear (only partially available)
- Compact design, perfectly suited for small rooms
- Large effective lifting height
- Outdoor use possibleh
- Jib arm length can be adjusted to conditions on the spot
- Broad range of fastening options provides for convenient installation

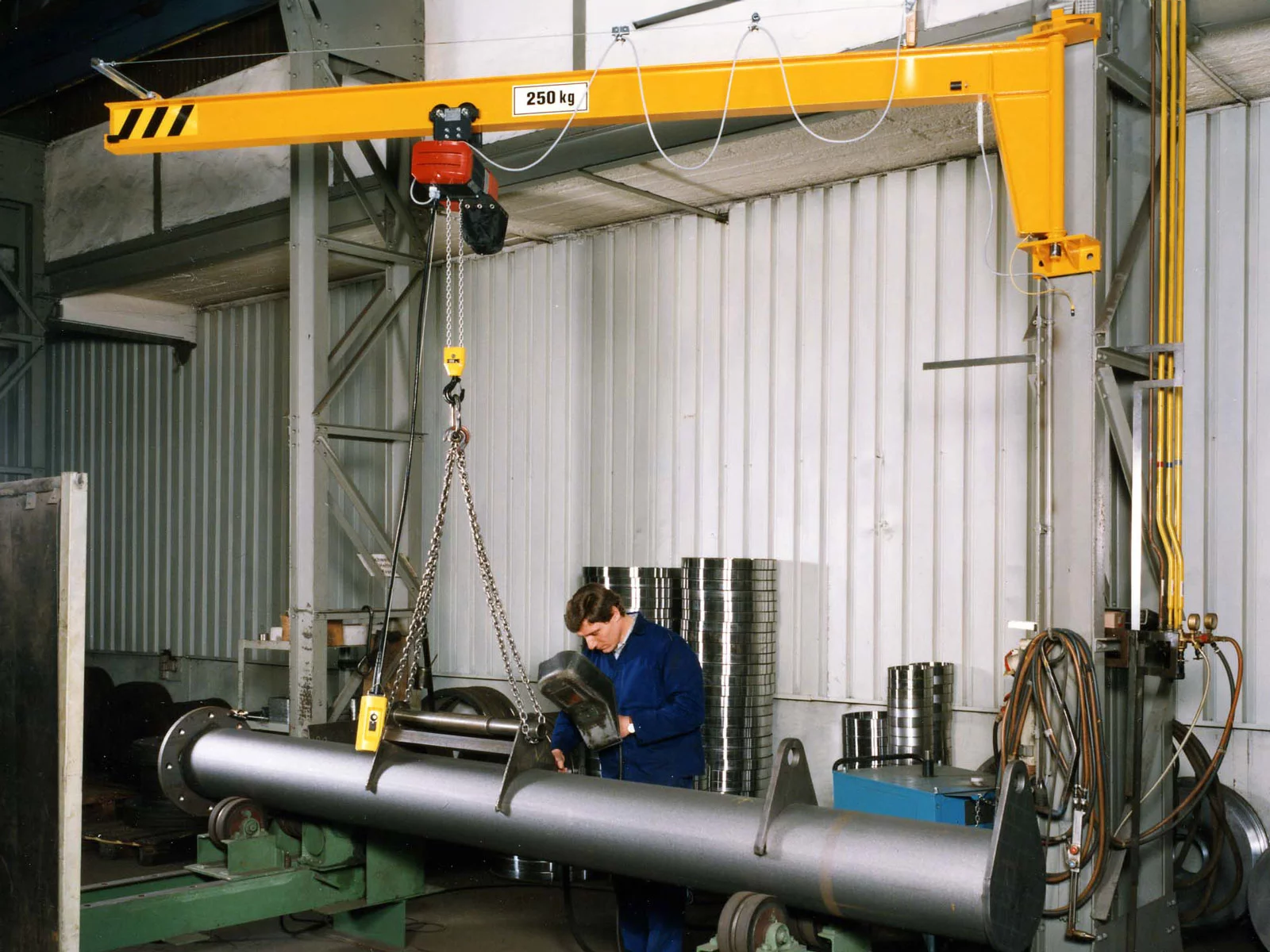

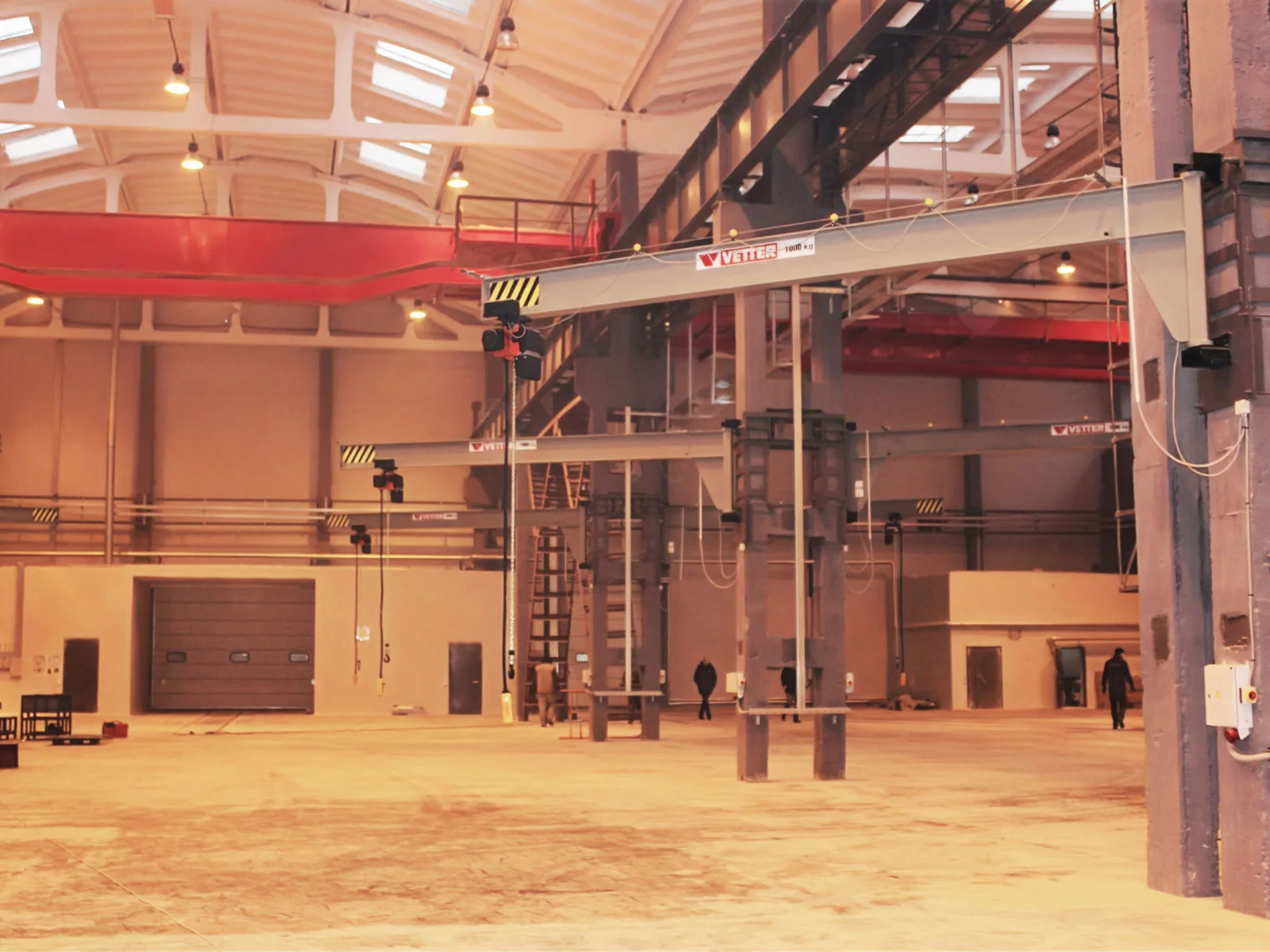

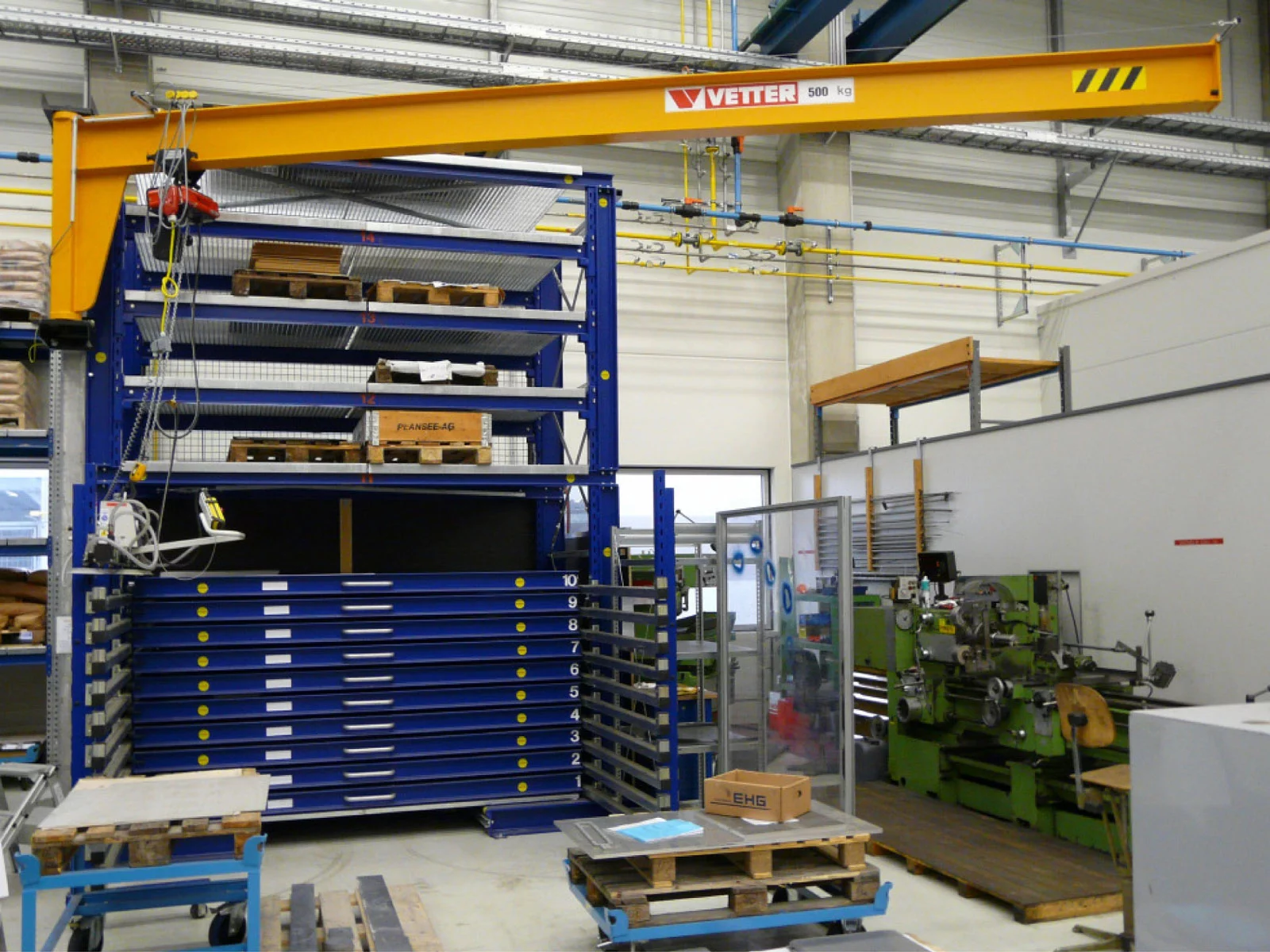

The versatile one
The wall-mounted slewing jib crane AW can be used as a versatile workplace crane featuring a capacity of up to 2,000 kg.
Due to its compact design, the crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms. With its optional electrical slewing gear (only partially available), it provides increased ease of use when operated in the higher capacity / outreach range. The wall-mounted slewing crane AW perfectly meets your requirements for indoor and outdoor use since its jib arm length can be adjusted individually.
Regarding fastening options, you can make your individual choice from fastening on steel pillar, reinforced concrete pillar, reinforced concrete wall, and steel structure.
Moreover, we offer a suitable power supply, chain hoist ELECTROLIFT® with electric traveller, radio remote control as well as various other accessories.
This type of slewing crane is available as column-mounted slewing jib crane.

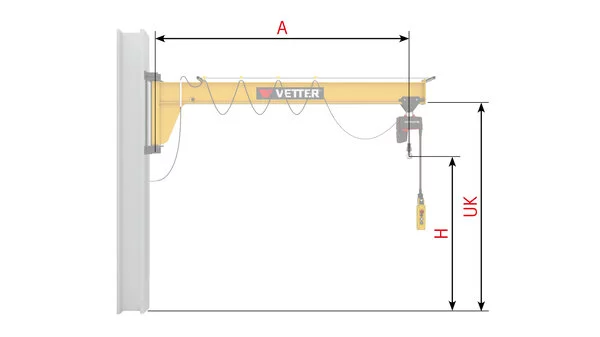

Technical data
| Capacity: | 80 - 2000 kg |
| Outreach: | 2000 - 10 000 mm |
| Total height: | 940 - 1430 mm |
| Slewing range: | 180° |
| EN 13001 Hoisting class: | HC2 |
| EN 13001 Stability class: | S2 |
| Jib design: | Low-profile |
| Slewing: | By hand |
| Hoist: | Chain hoist |
| Trolley drive: | By hand / Electrical |
| Installation location: | Indoor / Outdoor |
Outreach [m]
Capacity [kg]
| 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.5 | 10 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | |||||||||||||||||
| 125 | |||||||||||||||||
| 250 | |||||||||||||||||
| 500 | |||||||||||||||||
| 800 | |||||||||||||||||
| 1000 | |||||||||||||||||
| 1600 | |||||||||||||||||
| 2000 |
- □ Electrical slewing gear available (optional)

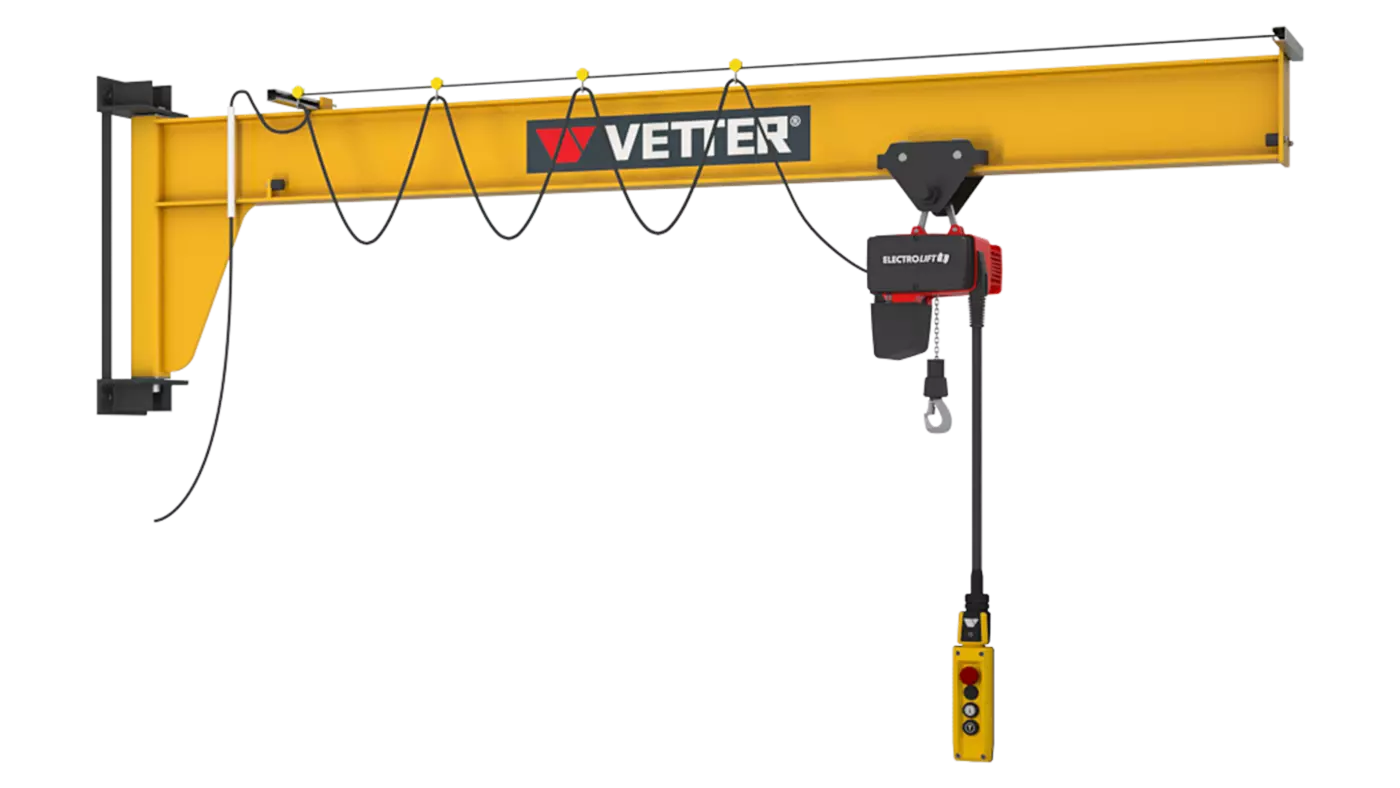

3D-Ansicht
Accessories
Fastening
Fixing on steel pillars
Bearing bracket
The screwable bearing bracket is used to attach jib cranes directly to steel pillars. This fastening is standard delivery scope.
Fixing on concrete walls
Wall bracket
For fastening jib cranes on concrete walls. The bracket plate is mounted on the wall by the included threaded rods, nuts an washers.
Fixing on reinforced concrete pillars
Support embarcing bracket
For fastening jib cranes on reinforced concrete pillars. The front bracket plate is clamped to the pillar by the included threaded rods, nuts and counterplate.
Fastening to steel structure
Weld-on bracket
Designed to attach the wall-mounted slewing jib crane to a steel structure which is suitable regarding static strength. The bracket is welded directly onto the steel structure. This fastening option is perfectly suited if is not possible or allowed to drill holes into the existing steel structure.
Power lead
Round cable
Power lead by cable loop, consisting of round cable and cable supporting tube to be mounted on the jib arm. Pendant control fixed to the hoist. Suitable for an outreach up to 3-5m (Depends on the jib clearance of the jib arm).
Round cable trailing system
Favourable power supply, consisting of round cable, cable trolleys, tensioning rope and suspension arms to fix the supply to the jib arm. Pendant control fixed to the hoist. Recommended for outreachs from 3-10 m (Depends on the jib clearance of the jib arm).
Flat cable trailing system
Robust power supply, consisting of flat cable, cable trolleys, C-rail and suspension arms to fix the supply to the jib arm. Pendant control fixed to the hoist. Standard for an outreach from 10 m or in combination with electrical slewing gear.
Ideal control
The pendant control is independently from the hoist movable on a separate C-rail. Consisting of flat cable, cable trolleys, two C-rails and suspension arms. Especially suitable for situations requiring a distance between operator and load, e.g. when load has to be carried over an obstacle or pit.
Other
Slewing limitation
Mechanical slewing limitation, can be installed and adjusted easily and continuously.
Locking device
For locking the jib arm in several positions. Applied by lever arm / traction rope (depending on crane
type) with control lever. Also to be used as immobilizer system up to wind force 7 Beaufort (only when crane is switched off and hoist is in idle position).
Radio control system
Radio control system for safe, comfortable control of electrically driven cranes, consisting of: receiver, push button transmitter, 2 rechargable batteries, battery charging station, extended contactor control and horn.
Outdoor use
Weatherproof design for temperatures ranging from -20° C to +40° C, wind force up to 4 Bft (moderate breeze), protection class IP55, and insulation class F.
Outdoor design includes sealed bearings, neoprene cables, weather protection roofs for hoist and slewing gear as well as a high-quality outdoor varnish on the basis of corrosion category C3. A hot-dip galvanised steel structure is recommended for outdoor use.
Slewing gear AW
Electrical slewing gear with pinion and gear rim. Suitable for indoor and outdoor use (up to wind force 4).
The electrical slewing gear is only partially available, see capacity range on the register page "technical data".
Surface finish
Paint system for indoor use
Cranes intended to be used in a hall are steel grit blasted and provided with a high-quality coating on the basis of corrosion category C2. It is suitable for minor atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 80 µm.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
Paint system for outdoor use or production halls with high humidity
Cranes intended to be used outside require a special outdoor paint. For this purpose, the crane structure is steel grit blasted and provided with a high-quality outdoor coating on the basis of corrosion category C3. It is suitable for medium atmospheric stress. The standard colour is daffodil yellow (RAL 1007) with a nominal layer thickness of 120 µm.
Other RAL shades, corrosion categories, and layer thicknesses are available as an option.
Hot-dip galvanising
Hot-dip galvanising of crane structure on the inside and outside according to DIN EN ISO 1461.
TIP: We recommend hot-dip galvanising for outdoor use.
