Double-rail gantry crane
P500 OLYMPIA®
Tip Variable overall length by combination of several fields.
Product highlights
- Low profile permits utilization of entire hall height
- Large effective lifting height
- Subsequent installation in halls which cannot support the weight of an overhead crane
- Static load of hall is not affected
- Ideally suited for linking several workplaces
- Use of several overhead cranes possible
- Variable maximum crane rail length by combination of several fields
- Small footprint
- Support height and crane rail length / width can be adjusted to conditions on the spot
- Outdoor use possible
- High ease of use thanks to smooth starting and braking behavior of overhead crane
- Easy to install thanks to dowelling on concrete floor (optional)
The gantry crane on its own feet

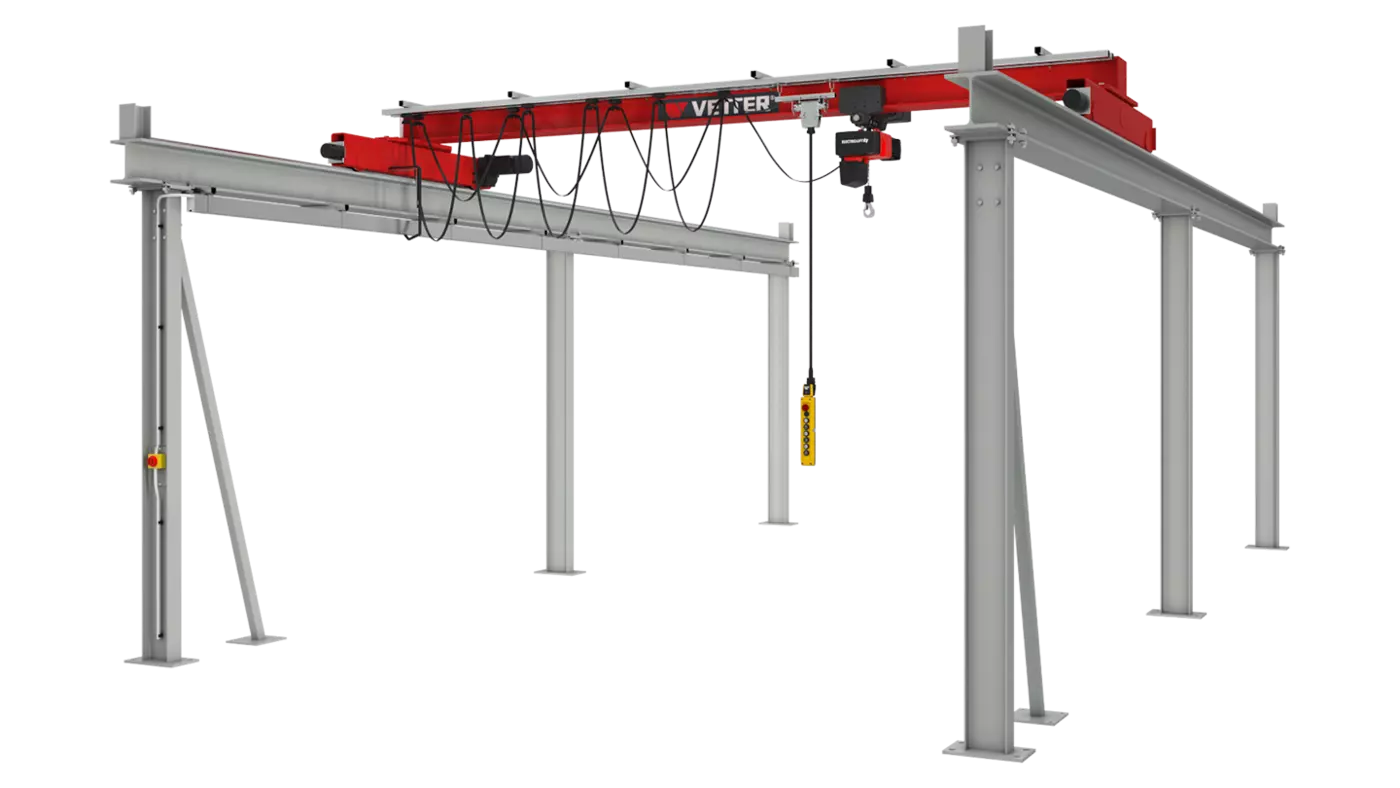

The double-rail gantry crane P500 OLYMPIA® is the perfect choice for production halls which cannot support the weight of an overhead crane.
Using the crane P500 OLYMPIA®, you are able to lift maximum loads of 10,000 kg effortlessly and link workplaces with one another. Thanks to the low-profile design of the crane, you can benefit from the overall hall height while achieving maximum lifting heights. The two-rail gantry enables use of several overhead cranes in the system so that one hoist is available per workstation.The static load of the hall structure is not affected because the crane stands on its own feet and no additional costs for bracing are incurred.
The overhead crane is motor-driven and its smooth starting and braking behaviour provides for increased ease of use. The two-rail gantry P500 OLYMPIA® perfectly meets your requirements for indoor and outdoor use since its support height and crane rail length / width can be adjusted individually and it can be extended by combination of several fields.
Regarding fastening options, you can make your individual choice from comfortable doweling on concrete floor or fastening on foundation using anchors.
Moreover, we offer a suitable power supply, chain or wire rope hoists ELECTROLIFT® with electric trolley, radio remote control as well as various other accessories.

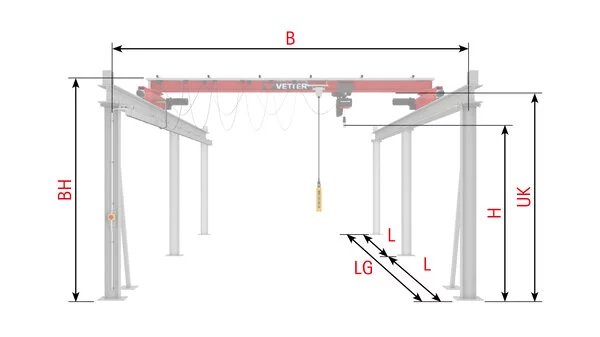

Technical data
| Capacity: | 1000 - 10 000 kg |
| Width: | 4000 - 15 000 mm |
| Field length: | 4000 - 10 000 mm |
| Jib clearance: | 2500 - 6250 mm |
| Total height: | 2950 - 6700 mm |
| EN 15011 Hoisting class: | HC2 |
| EN 15011 Stability class: | S3 |
| Crane drive: | Electrical |
| Hoist: | Chain hoist / Wire rope hoist |
| Trolley drive: | Electrical |
| Installation location: | Indoor / Outdoor |
| Max. crane rail length: | Can be extended to any length |
Field length [m]
Capacity [kg]
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
|---|---|---|---|---|---|---|---|
| 1000 | |||||||
| 1600 | |||||||
| 2000 | |||||||
| 2500 | |||||||
| 3200 | |||||||
| 4000 | |||||||
| 5000 | |||||||
| 6300 | |||||||
| 8000 | |||||||
| 10000 |
